NP-2XBAG
Kod EAN: 7613187000713
NEUTRIK 6.3 mm mono plug High-quality version Nickel-plated, black body Strain relief and cable bending protection For cables up to: Ø 4-7 mm Note: The supplied strain relief clamp cannot be used with a cable diameter > 5.5 mm. Manufacturer i...
6,61 € brutto
(inkl. 23% DPH)
5,37 € netto
NP-2XBAG

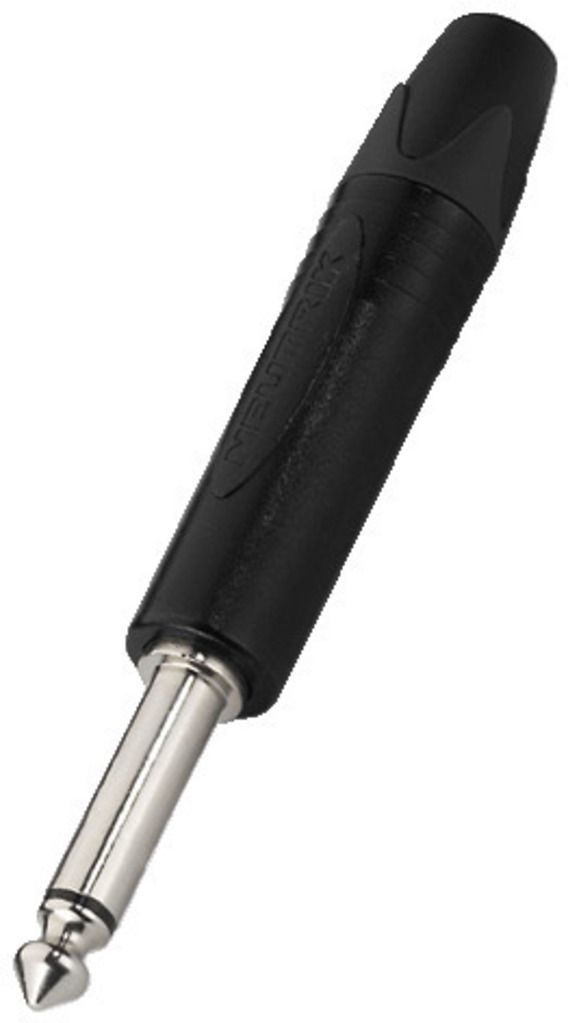

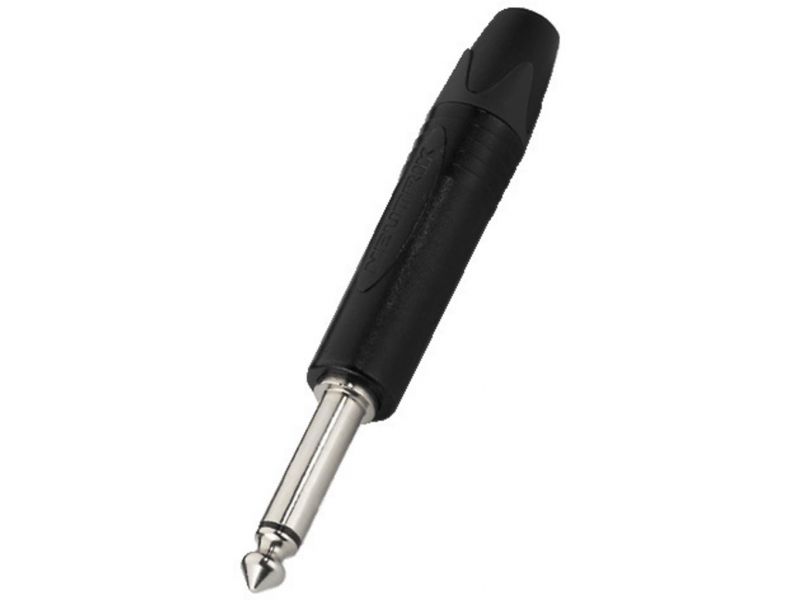

NEUTRIK 6.3 mm mono plug
- High-quality version
- Nickel-plated, black body
- Strain relief and cable bending protection
- For cables up to: Ø 4-7 mm
Note:
The supplied strain relief clamp cannot be used with a cable diameter > 5.5 mm.
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametry
| Description | plug |
| Type | NEUTRIK plug 6.3 mm |
| Quantity | 1 |
| Features | slimline |
| Colour/colour coding | black |
| Power rating | < 50 V |
| Insulating resistance | > 2 GΩ |
| Dielectric strength | DC 1 kV |
| Certification | IEC 60603-11 / EIA RS-453IEC 68-2-20 |
| Pole number | 2 |
| Cable inlet | Ø 4-7 mm |
| Suitable cable cross section | 1 mm2 |
| Connection | soldering contacts |
| Strain relief | self-adjusting clamps |
| Cable bending protection | yes |
| Mono | yes |
| Material | diecast zinc |
| Admiss. ambient temp. | -20-+65 °C |
| Weight | 24 g |
