Tour guide transmitter, 446 MHz
MPT-142
Kod EAN: 4007754181227
Piezo tweeter driver 3.5 cm (1⅜") standard thread Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGZum Falsch 3628307 BremenGermanyinfo@monacor.com
12,00 € brutto
(inkl. 23% DPH)
9,76 € netto

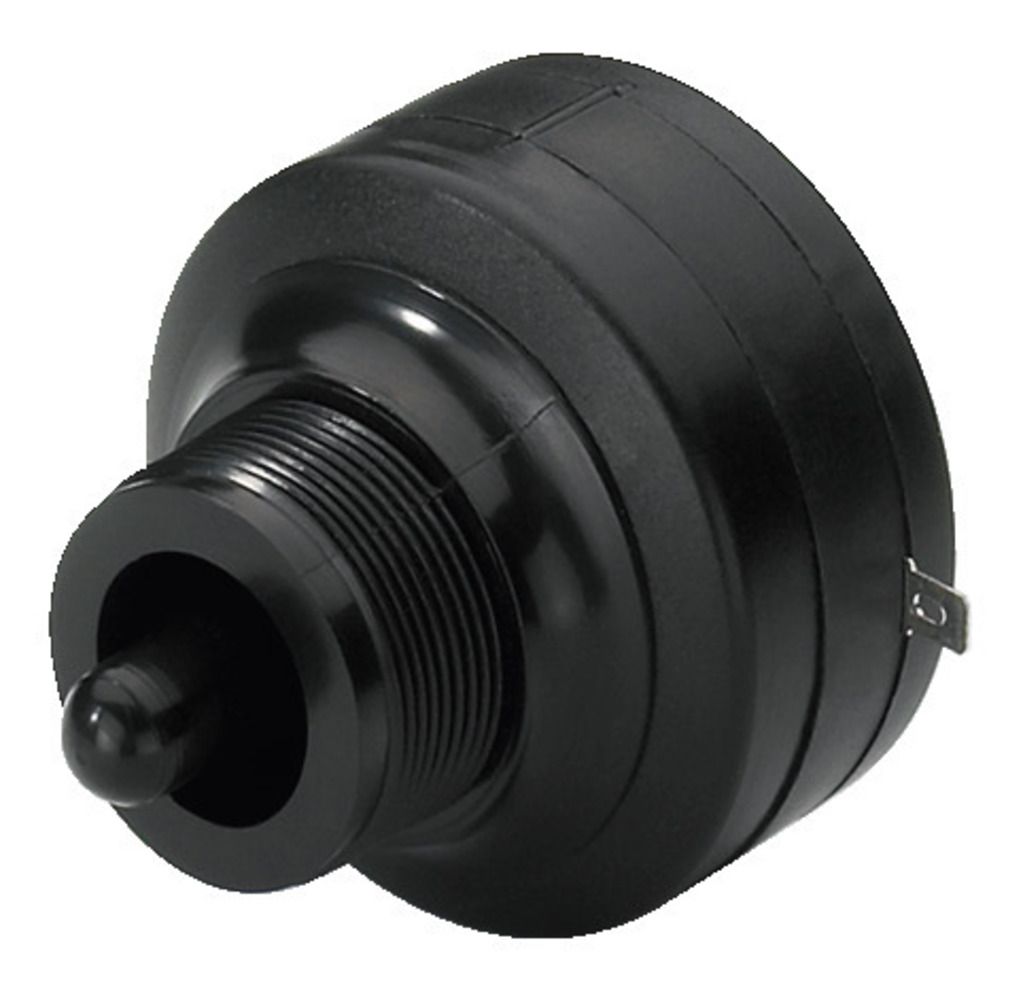

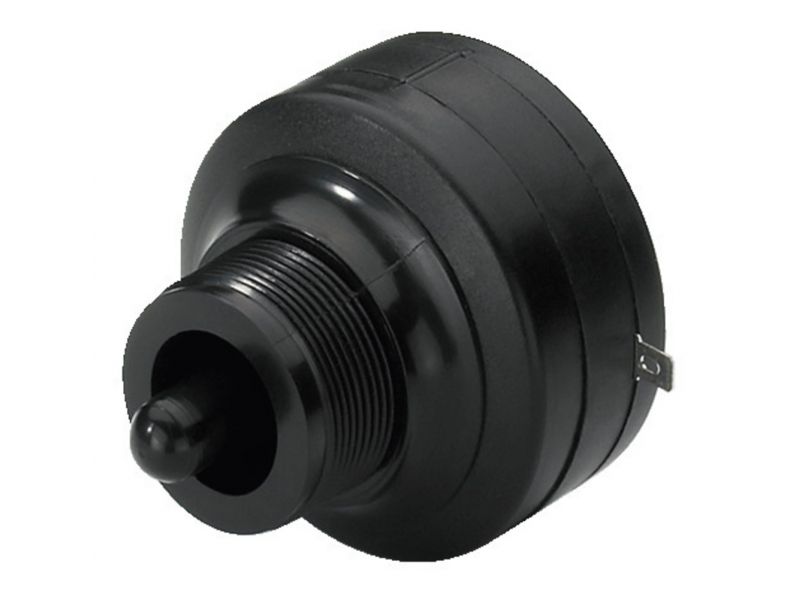

MPT-142
Piezo tweeter driver
- 3.5 cm (1⅜") standard thread
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Parametry
| Impedance (Z) | > 1,000 Ω |
| Transmission technology | cable |
| Frequency range | 1,800-20,000 Hz |
| Power rating (RMS) | 60 W |
| Peak music power output (MAX) | 115 W (8 Ω system) 225 W (4 Ω system) |
| SPL | 92 dB/W/m |
| Max. voltage | ~ 30 V |
| Mounting cutout | not applicable |
| Mounting depth | n/a |

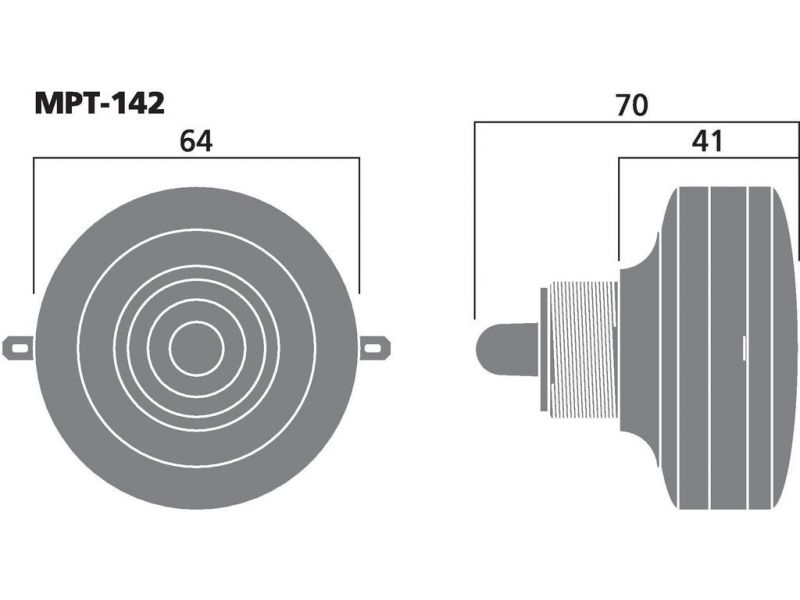

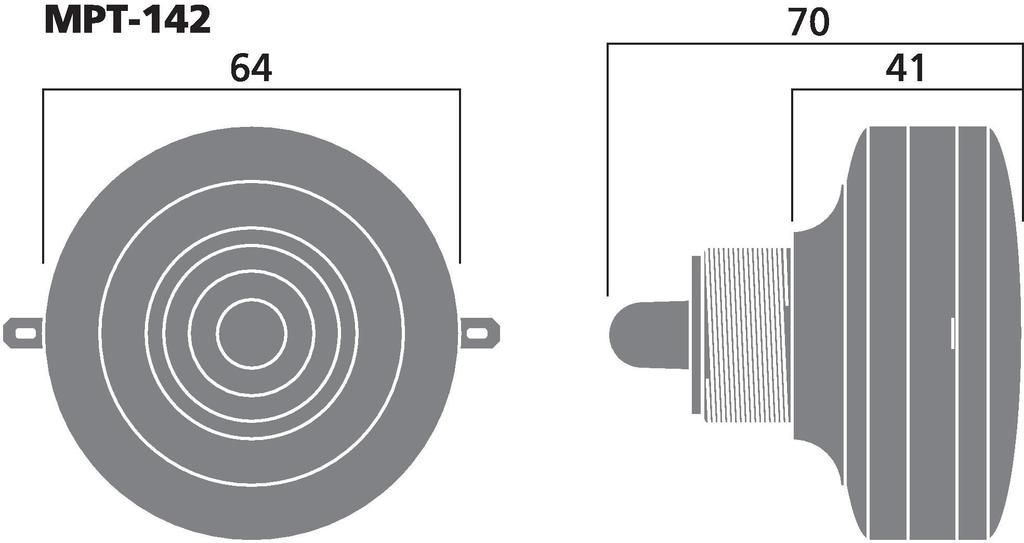

| Dimensions | Ø 64 mm x 70 mm |
| Outside diameter | Ø 64 mm |
| Width | Ø 64 mm |
| Height | Ø 64 mm |
| Depth | 70 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.057 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.08 x 0.08 x 0.07 m |
| Gross weight | 0.06 kg |
| Net weight | 0.057 kg |
