MPS-1
Kod EAN: 4007754180138
Microphone splitter, for distributing one input signal to two outputs, e.g. monitor mixer and main mixer. Galvanically isolated output with ground lift switch and feed-through output XLR connections (600 Ω) for input and output Frequency range: 35-...
34,60 € brutto
(inkl. 23% DPH)
28,13 € netto

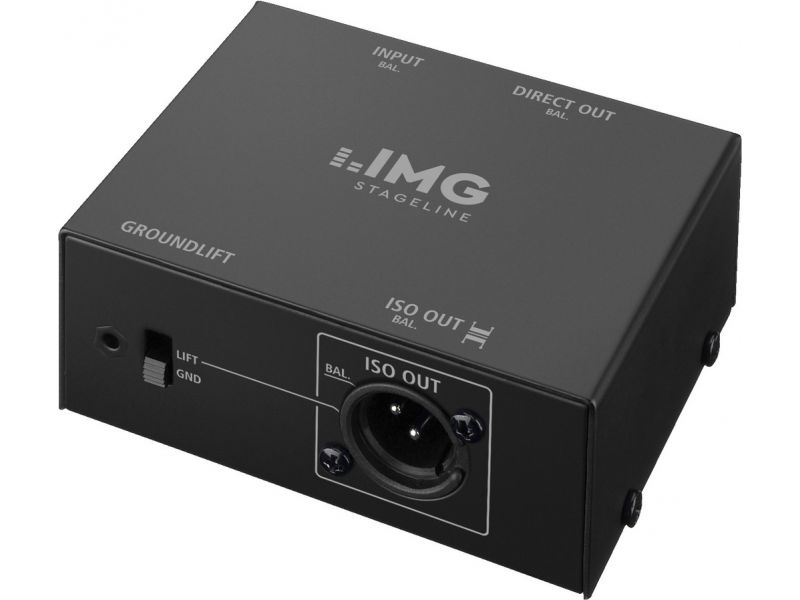

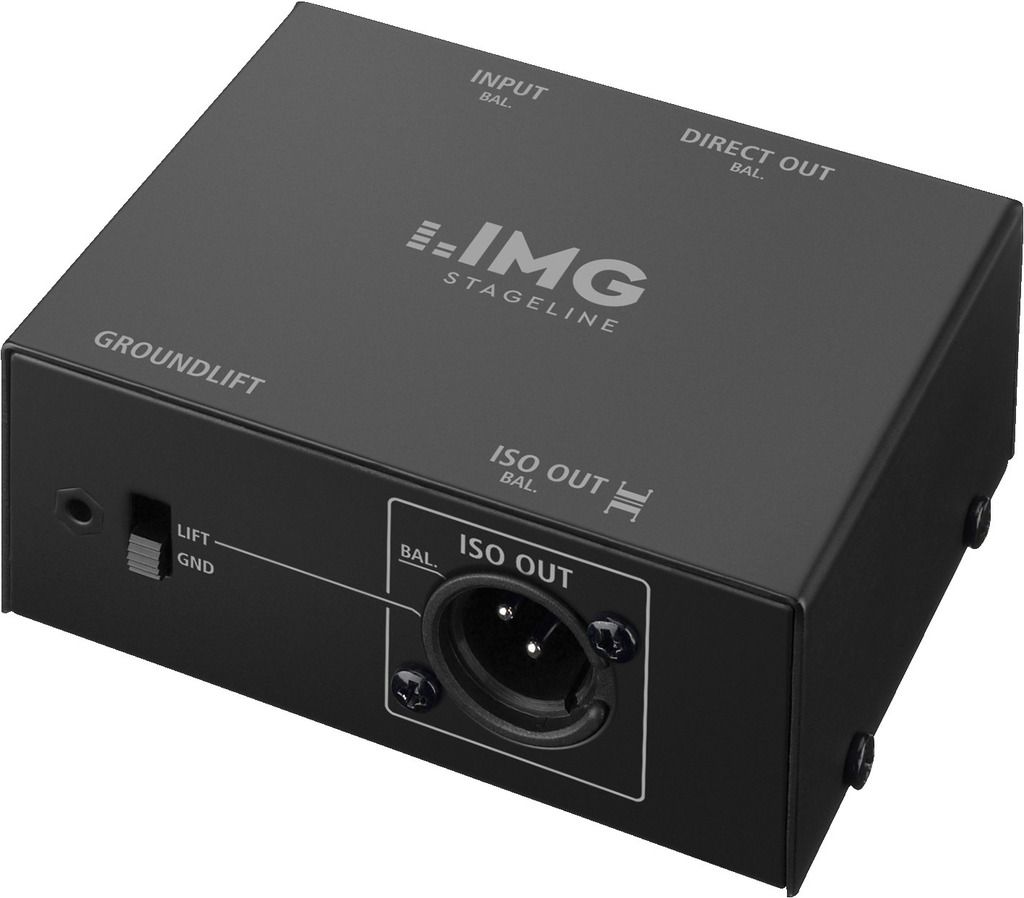

MPS-1
Microphone splitter,
for distributing one input signal to two outputs, e.g. monitor mixer and main mixer.
- Galvanically isolated output with ground lift switch and feed-through output
- XLR connections (600 Ω) for input and output
- Frequency range: 35-30,000 Hz
- Dimensions: 100 x 80 x 40 mm
- Weight: 310 g
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | microphone splitter |
| Frequency range | 35-30,000 Hz |
| Input impedance | 600 Ω |
| Output impedance | 600 Ω |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 100 x 80 x 40 mm |
| Weight | 310 g |
| Inputs | 1 x XLR, bal. |
| Outputs | 2 x XLR, bal. |
| Other features | ground lift switch |
