MIXX12-D

Kod EAN: 4007754426533

Digital audio mixer, with Dante® interface. 12 analogue inputs, 6 analogue outputs (2 x main, 4 x aux) 4 Dante® inputs, 4 Dante® outputs Controllable via any standard iOS as well as Windows, version 8 or higher (not in the scope of delivery) With D...

víc

Staň se partnerem
Kup teď

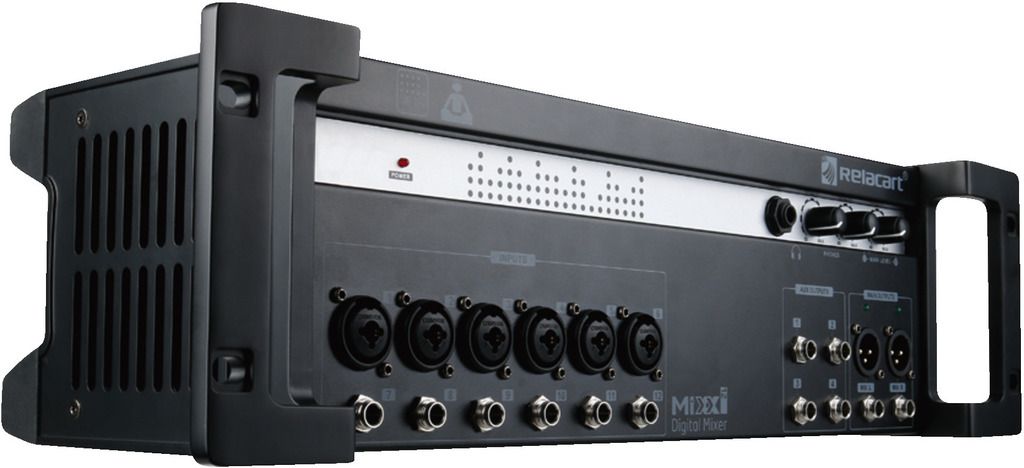

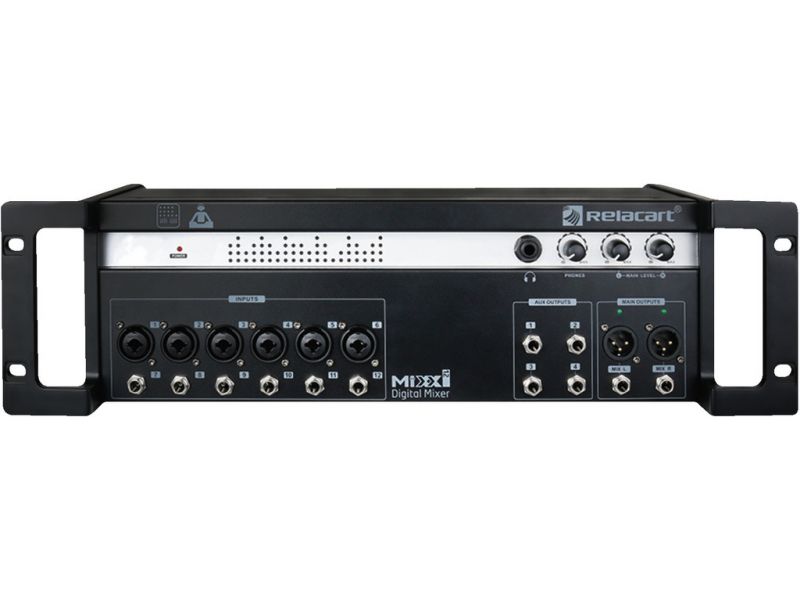

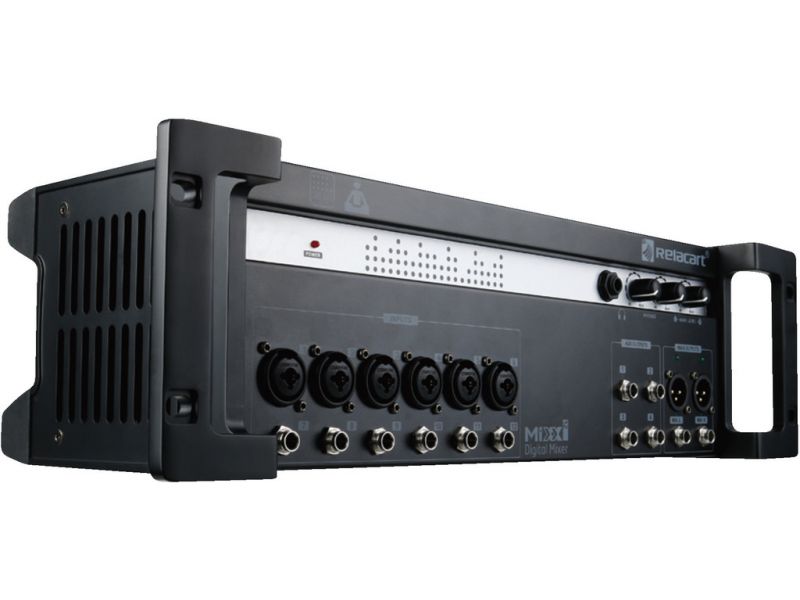

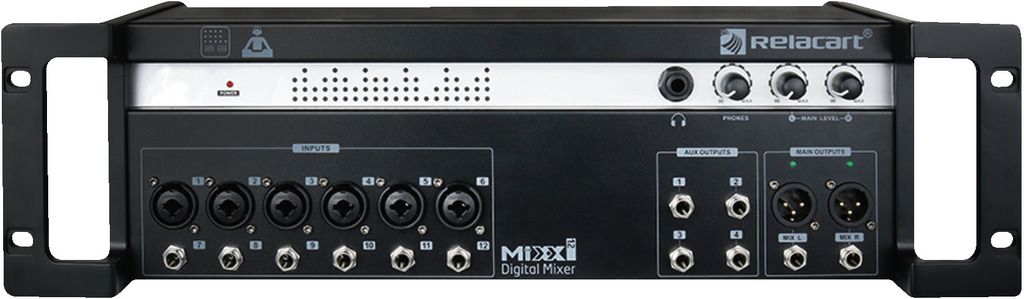

MIXX12-D

Digital audio mixer,
with Dante® interface.
  • 12 analogue inputs, 6 analogue outputs (2 x main, 4 x aux)
  • 4 Dante® inputs, 4 Dante® outputs
  • Controllable via any standard iOS as well as Windows, version 8 or higher (not in the scope of delivery)
  • With Dante® upgrade card for integrating device into any existing Dante® network
  • State-of-the-art control technology possible via app
  • Various settings possible
  • User-friendly, intuitive operation
  • Program selection and snapshot selection, locking function for safety
  • Supports multi-platform control for up to 10 devices simultaneously
  • Adjustable headphone output

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametry

No. of channels 12
No. of inputs 16
Mic input 3.3 kΩ, bal. (XLR)
Line input 30 kΩ (6.3 mm jack)
Master output 600 Ω, bal. (XLR)
Headphones yes
Frequency range 20-20,000 Hz
THD < 0.005%
S/N ratio 93 dB(A)
Crosstalk < 120 dB
Equalizer bass DSP (4-band equalizer)
Equalizer midrange DSP (4-band equalizer)
Equalizer treble DSP (4-band equalizer)
equalizer DSP (31-band equalizer)
Phantom power +48 V
Power supply ˜ 110-240 V/50-60 Hz/60 W
Mains voltage ~ 110-240 V
Mains frequency 50-60 Hz
Power consumption, operation 60 W
Dimensions 448 x 132 x 191 mm
Width 448 mm
Height 132 mm
Depth 191 mm
Weight 4.12 kg
Packaging dimensions (W x H x L) 0.49 x 0.13 x 0.19 m
Gross weight 4.76 kg
Net weight 4.12 kg
