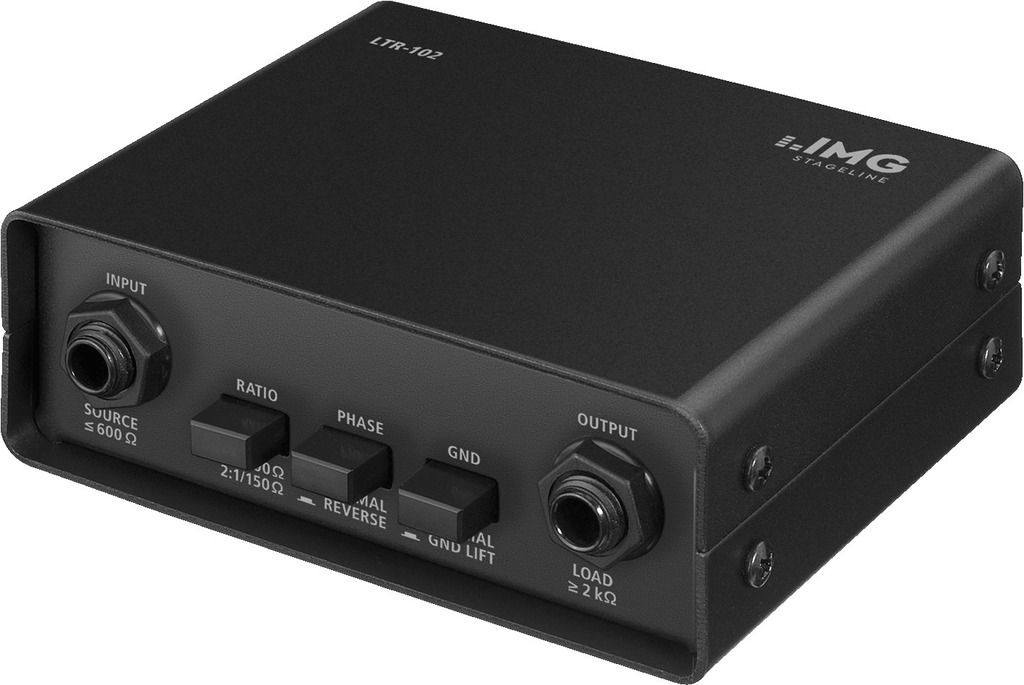

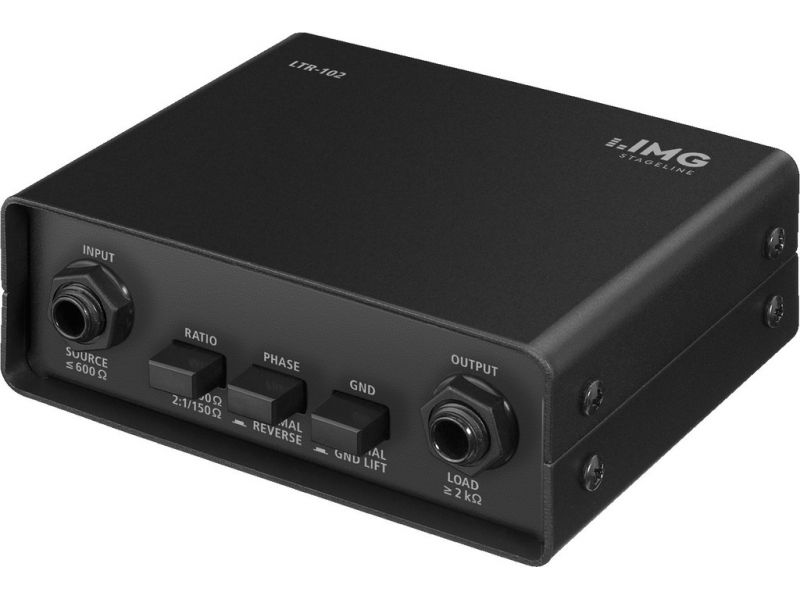

LTR-102
Line Transformers
For an optimum signal transmission from line units to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated.
All inputs and outputs can be used via 6.3 mm jacks and XLR jacks, balanced as well as unbalanced.
Line transformer
- Balanced and unbalanced inputs and outputs
- Output impedance can be switched from 1:1/600 Ω to 2:1/150 Ω
- Phase can be switched from 0° to 180°
- Ground lift switch
- Wideband balancing transformer
- Robust metal housing
Production Partner 03/2013
“Attractively-priced line transformer. The LTR-102 is of neat workmanship and provides respectable measured values.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | line transformer |
| Frequency range | 20-25,000 Hz |
| Input signal | 5 V |
| Input impedance | 600 Ω |
| Output impedance | 600 Ω/150 Ω |
| Transmission ratio | 1:1/2:1 |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 120 x 44 x 90 mm |
| Weight | 545 g |
| Inputs | 1 x 6.3 mm jack, bal.1 x XLR, bal. |
| Outputs | 1 x 6.3 mm jack, bal.1 x XLR, bal. |
| Other features | Optimum load imped.: ≥ 2 kΩ Optimum source imped.: 50-600 Ω |
