DT-25N
Kod EAN: 4007754154641
Neodymium hi-fi tweeter, 40 W, 8 Ω
LSP-102
Kod EAN: 4007754197730
2-channel 3-way line splitter, (2 inputs/6 outputs), e.g. for connecting one mixer to several amplifiers. 1 balanced XLR input (600 Ω) for each channel 2 galvanically isolated, balanced XLR outputs (600 Ω) with ground lift switch for each channel 1...
99,49 € brutto
(inkl. 23% DPH)
80,89 € netto

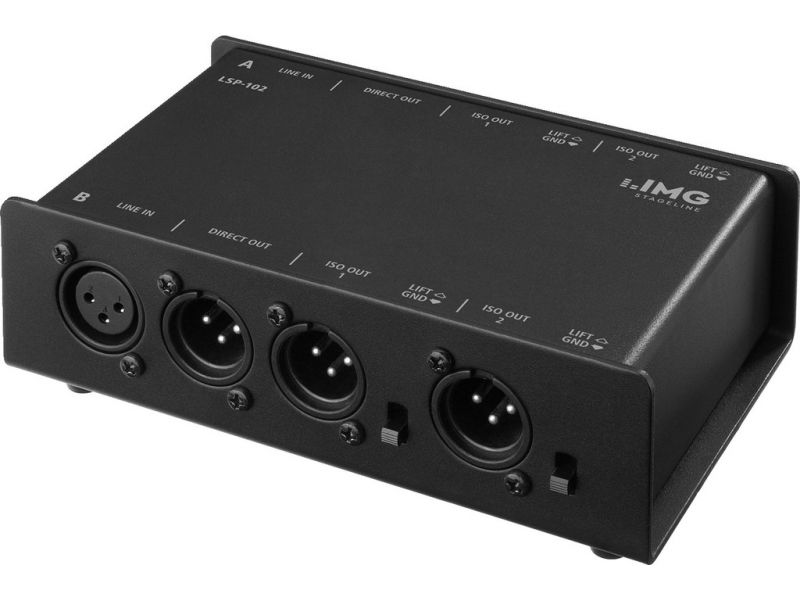

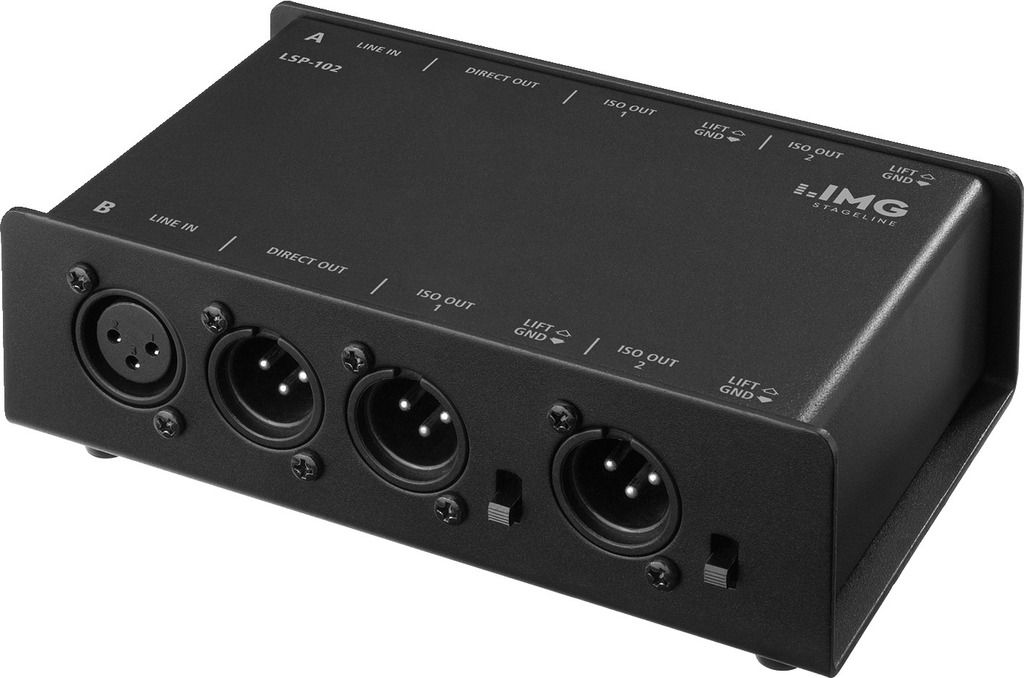

LSP-102
2-channel 3-way line splitter,
(2 inputs/6 outputs), e.g. for connecting one mixer to several amplifiers.
- 1 balanced XLR input (600 Ω) for each channel
- 2 galvanically isolated, balanced XLR outputs (600 Ω) with ground lift switch for each channel
- 1 balanced XLR direct output for each channel
- Frequency range: 20-20,000 Hz
- Robust metal housing with very good shielding qualities, suitable for stage applications
- Dimensions: 160 x 55 x 105 mm
- Weight: 909 g
SOUNDCHECK 07/2007
on the FGA-102, FGA-202, LC-31, MC-31 and LSP-102:
“Every musician or sound engineer should have these little helpers in their toolbox. They impress by their unobtrusiveness. Both the robust metal housing and the functionality of these transformers allow to solve many problems on stage or in the studio at a reasonable price.”
“Every musician or sound engineer should have these little helpers in their toolbox. They impress by their unobtrusiveness. Both the robust metal housing and the functionality of these transformers allow to solve many problems on stage or in the studio at a reasonable price.”
tools4music 06/2009
on the LSP-102, LC-31, FGA-102, FGA-202, DIB-102
“Recommendable and fit for on-the-road applications. An attractively priced little audio aid, perfect for the ever accompanying tool case.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | splitter |
| Frequency range | 20-20,000 Hz |
| Input impedance | 600 Ω |
| Output impedance | 600 Ω |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 160 x 55 x 105 mm |
| Weight | 909 g |
| Inputs | 2 x XLR, bal. |
| Outputs | 6 x XLR, bal. |
| Other features | ground lift switch |
