Tour guide transmitter, 446 MHz

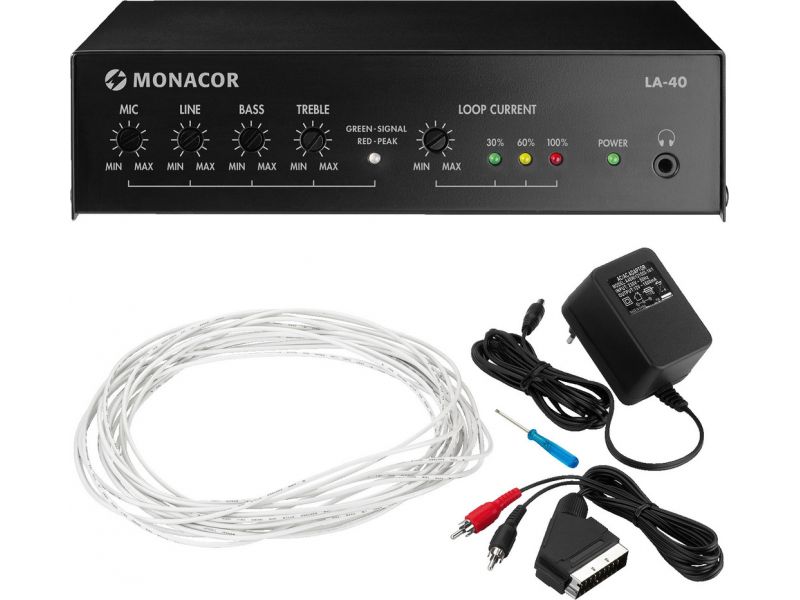

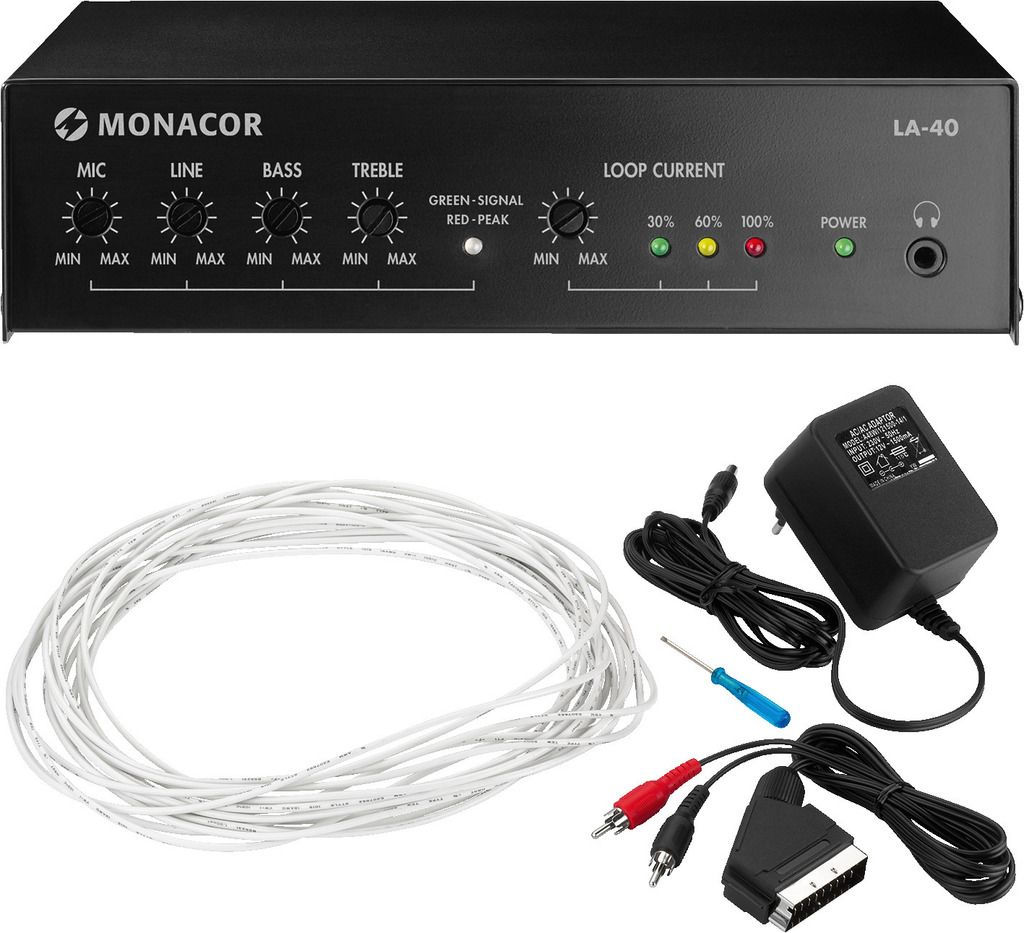

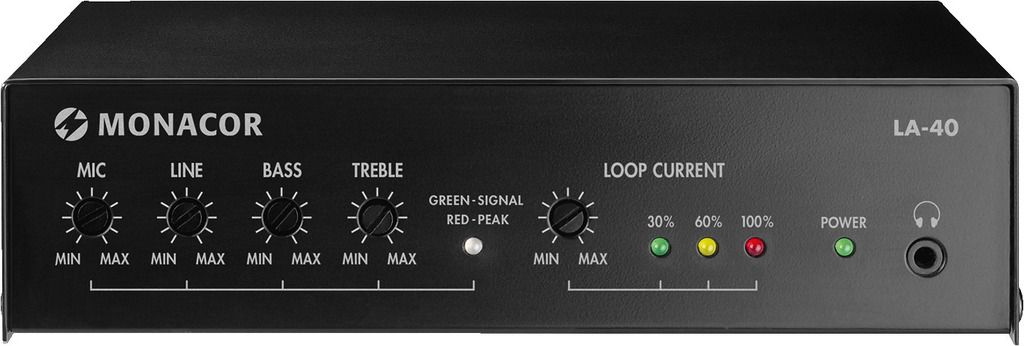

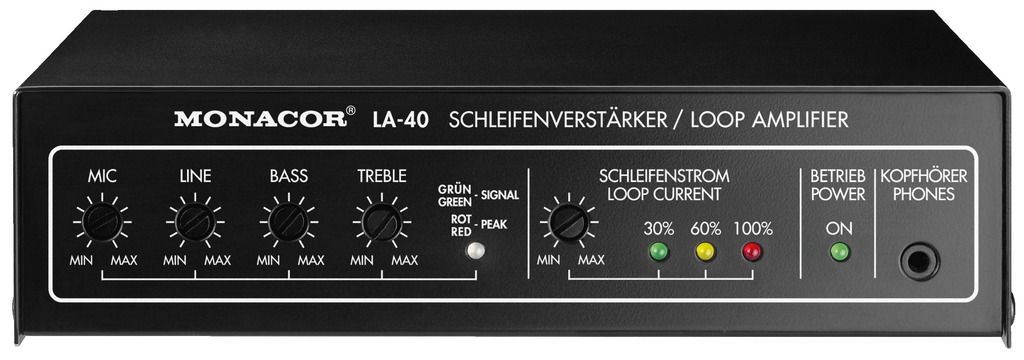

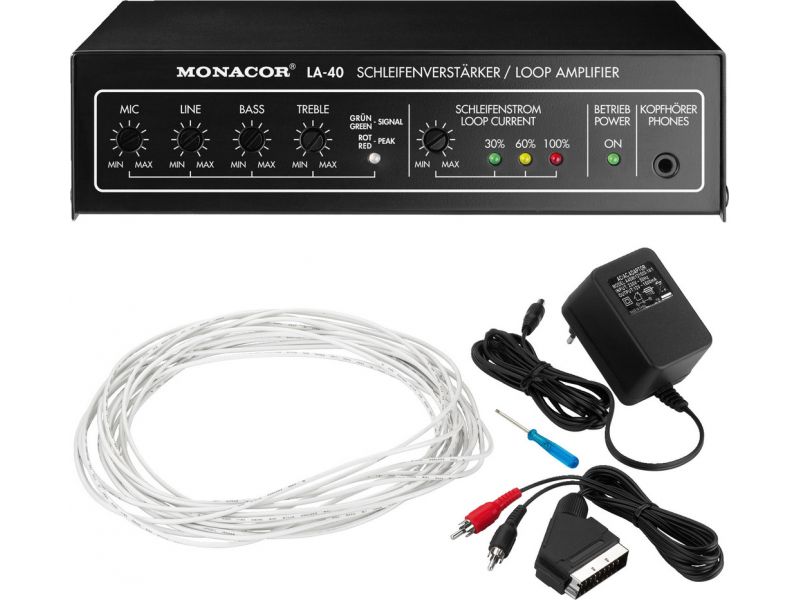

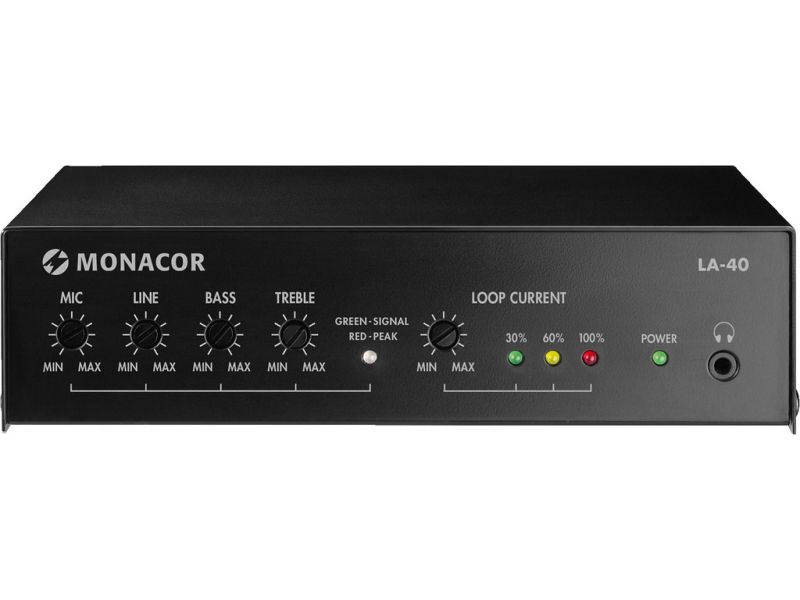

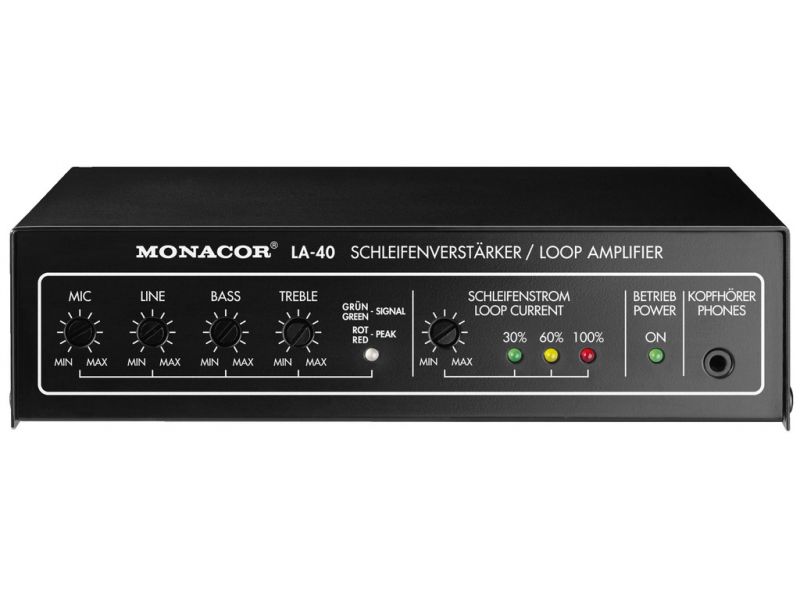

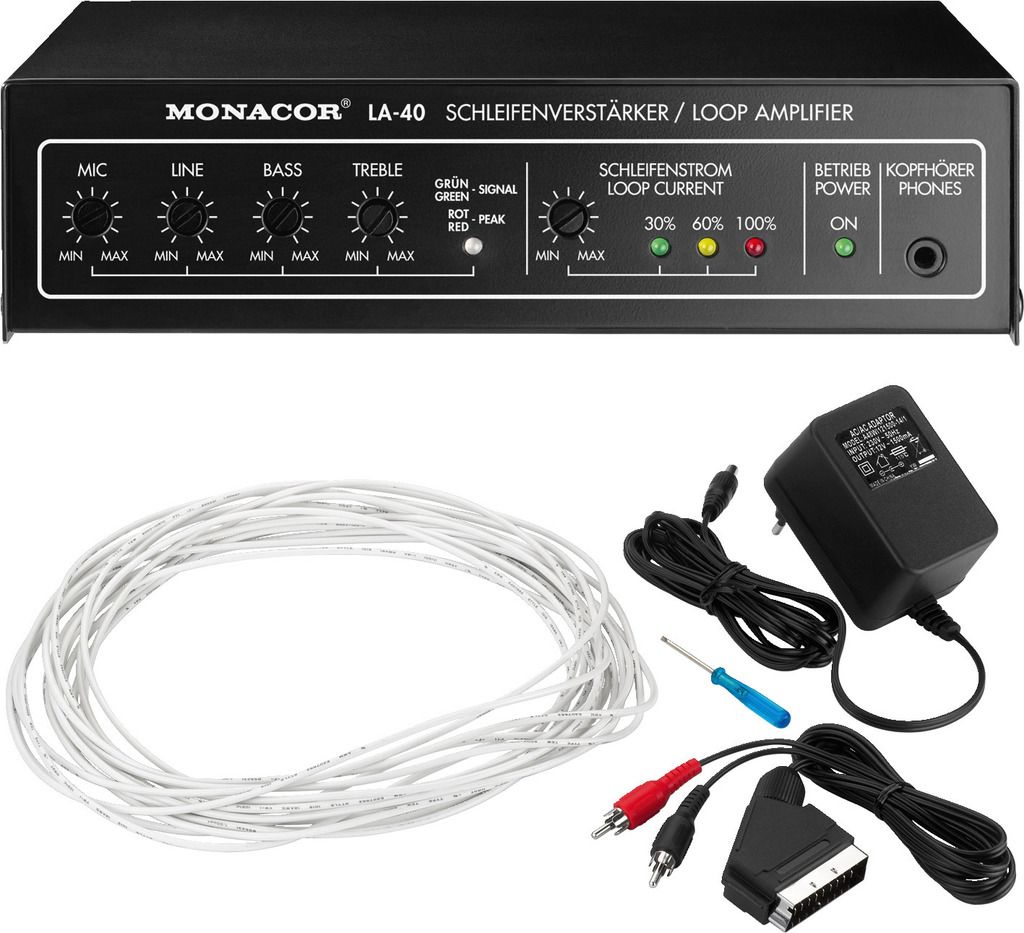

Active loop amplifier, with dynamic compressor, specifically for setting up an audio induction loop system in domestic locations (up to 40 m2). The loop amplifier LA-40 transmits the audio signals from a TV, audio system and/or microphone to the indu...
204,00 € brutto
(inkl. 20% DPH)
170,00 € netto
Loop current | 2.8 A |
Loop resistance | 0.4-2 Ω |
Room size | ≤ 40 m2 |

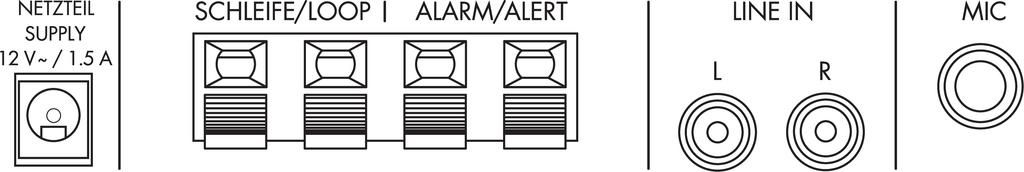

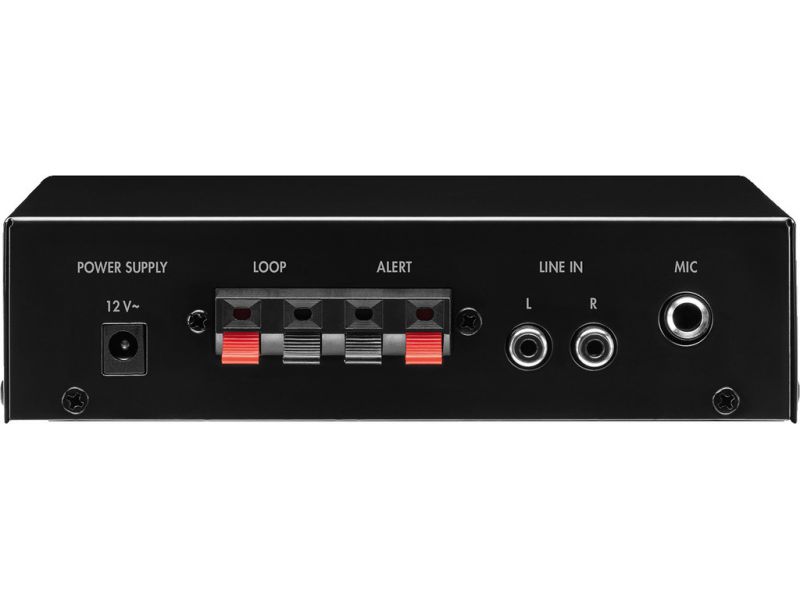

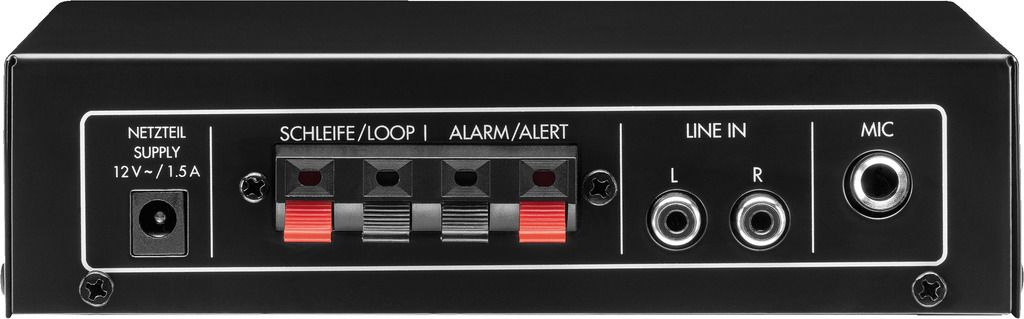

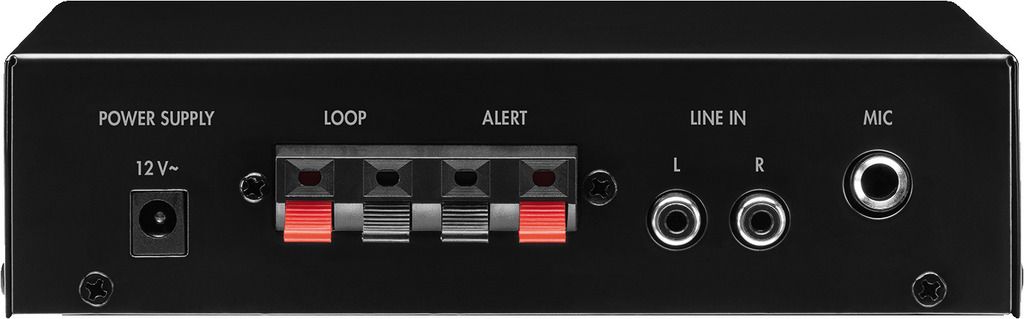

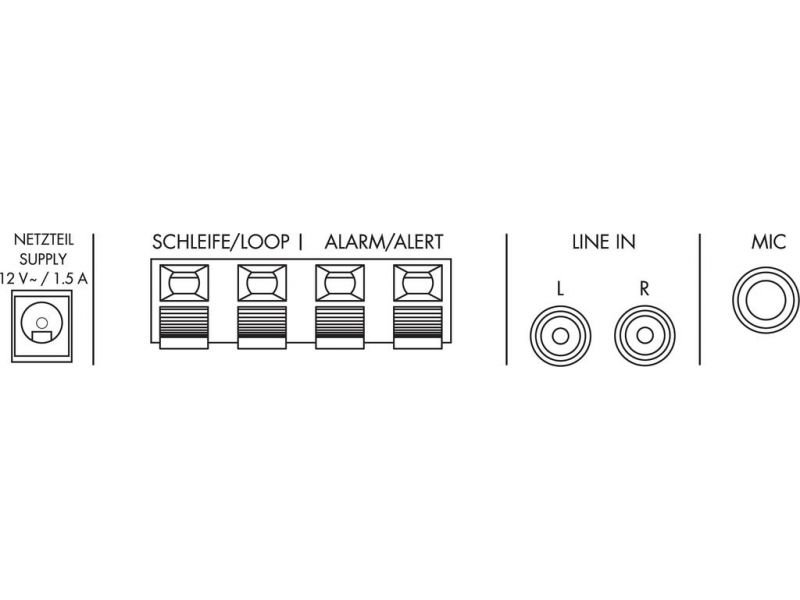

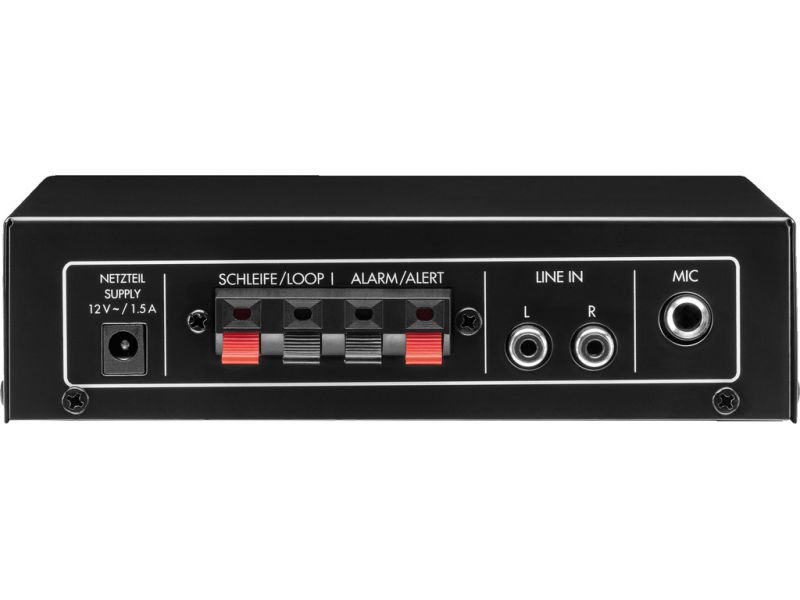

Inputs | mic: 2 mV/660 Ω (phantom power: 7.2 V) 6.3 mm jack line: 48 mV/11 kΩ, 2 x RCA alarm: 2 terminals for connecting a switch |

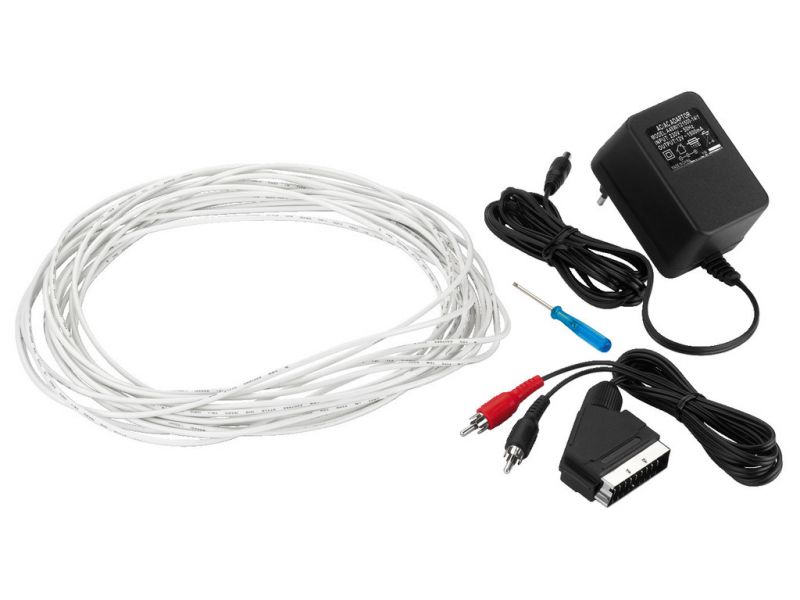

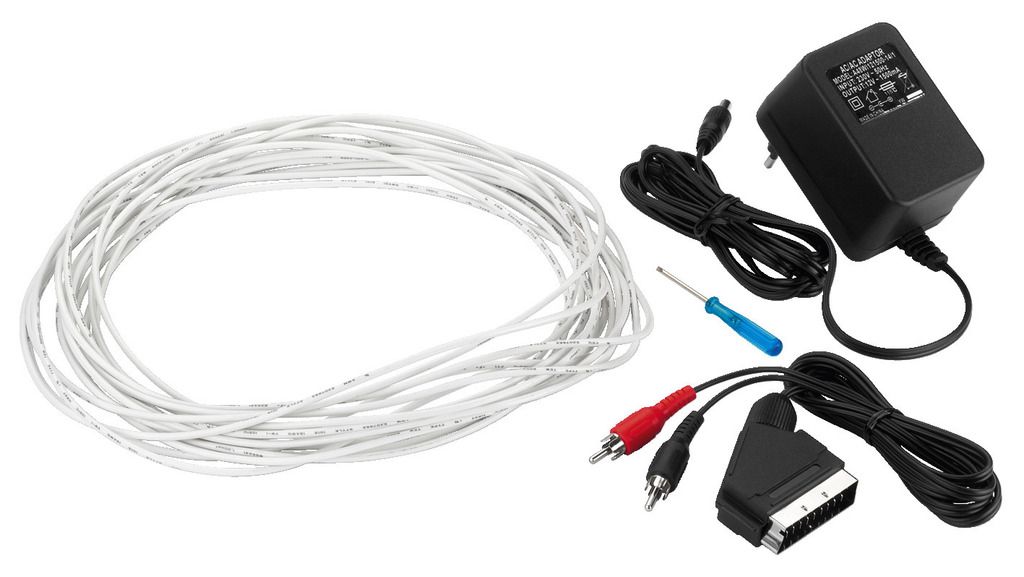

Outputs | loop: connection of the supplied loopvia 2 terminalsheadphones: ≥ 32 Ω, 3.5 mm jack |
Equalizer bass | ± 8 dB, 100 Hz |
Equalizer treble | ± 10 dB, 10 kHz |
Frequency range | 75-7,500 Hz, ±3 dB |
THD | 0.44% |
Admiss. ambient temp. | 0-40 °C |
Power supply | via encl. power supply |
Dimensions | 175 x 102 x 45 mm |
Weight | 510 g |
