K12H-100TC/8
Kod EAN: 0739894540247
PA bass-midrange speaker, 100 W, 8 Ω 30 cm (12") speaker made of extruded steel Ferrite magnet driver with extended reproduction of the high frequencies due to dual cone Stabilised voice coil system for a detailed reproduction of the midrange Man...

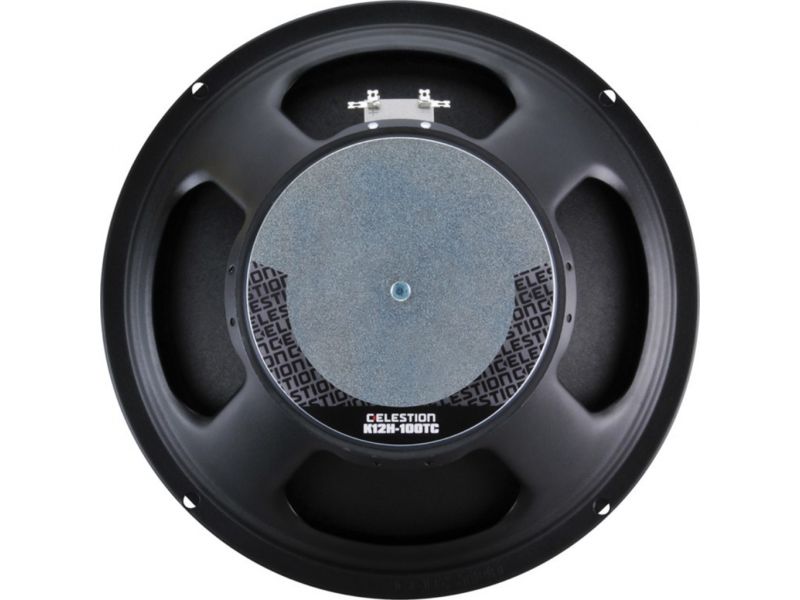

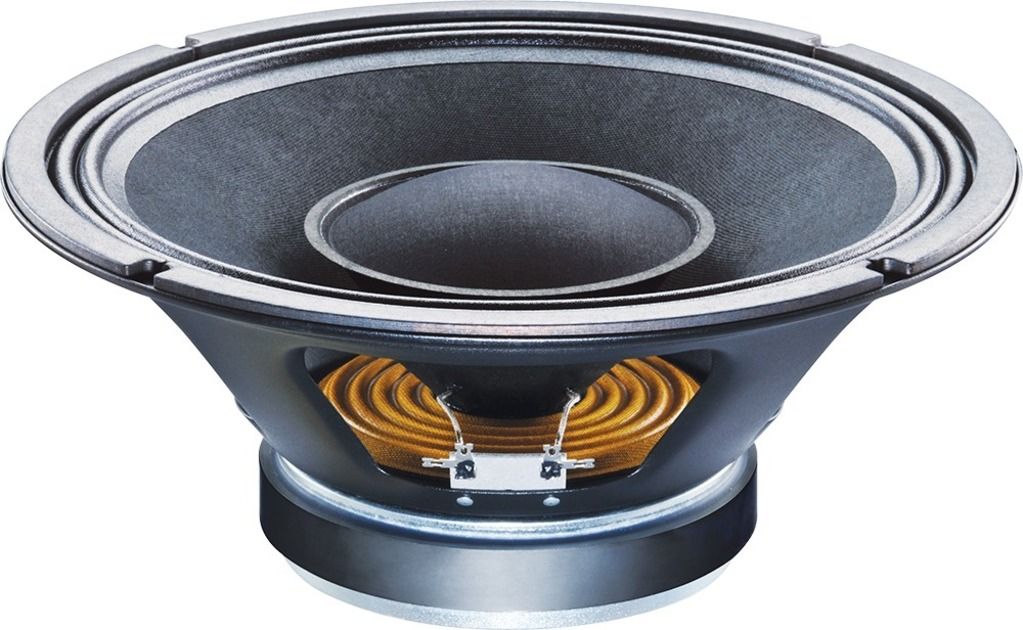

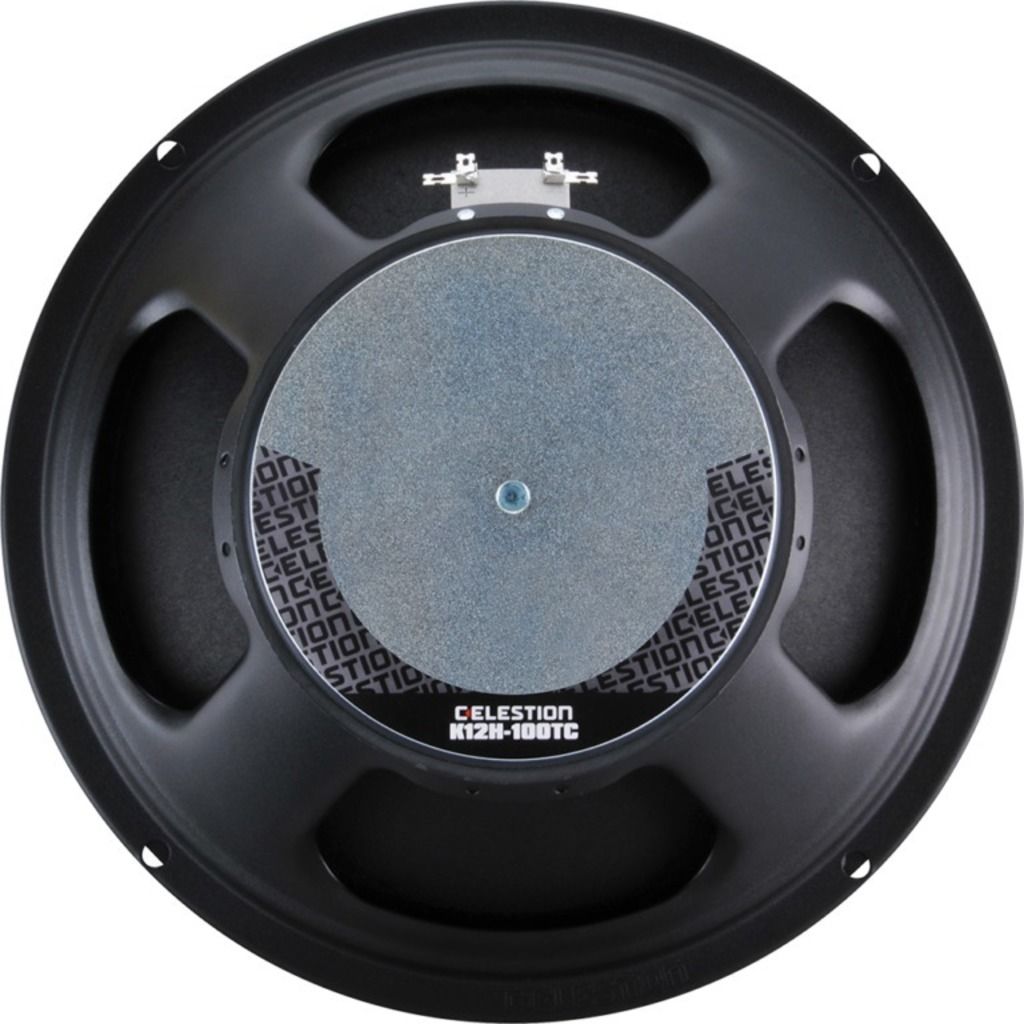

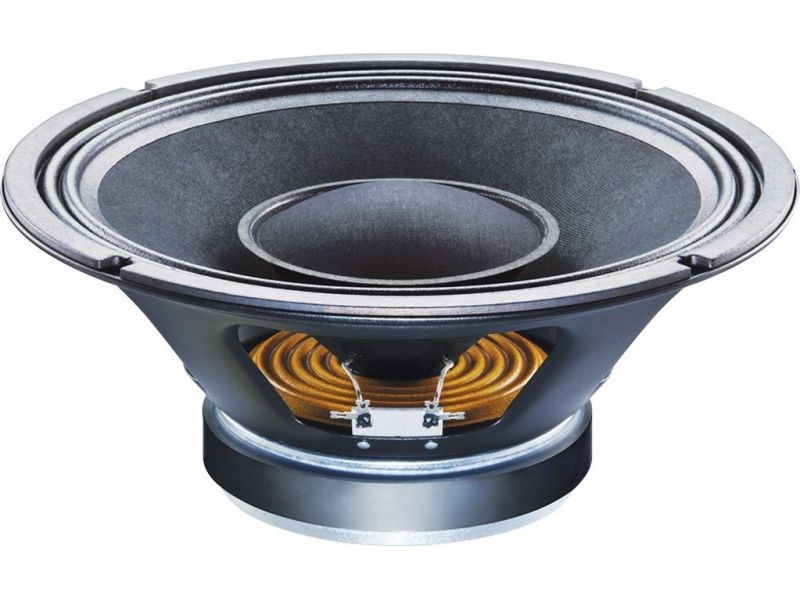

K12H-100TC/8
PA bass-midrange speaker, 100 W, 8 Ω
- 30 cm (12") speaker made of extruded steel
- Ferrite magnet driver with extended reproduction of the high frequencies due to dual cone
- Stabilised voice coil system for a detailed reproduction of the midrange
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 50-10,000 Hz |
| Resonant frequency (fs) | 55.6 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 97 dB/W/m |
| Suspension compl. (Cms) | 0.18 mm/N |
| Moving mass (Mms) | 45.39 g |
| Mech. Q factor (Qms) | 2.550 |
| Electr. Q factor (Qes) | 0.473 |
| Total Q factor (Qts) | 0.399 |
| Equivalent volume (Vas) | 72.0 l |
| DC resistance (Re) | 5.48 Ω |
| Force factor (BxL) | 13.55 Tm |
| Voice coil induct. (Le) | 0.67 mH |
| Voice coil diameter | Ø 45 mm |
| Voice coil winding height | 10 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 3 mm |
| Eff. cone area (Sd) | 530.93 cm2 |
| Magnet weight | 1.41 g |
| Mounting cutout | Ø 283 mm |
| Mounting depth | 129.7 mm |
| Mounting hole diameter | Ø 297 mm |
| Dimensions | Ø 309 mm x 129.7 mm |
| Outside diameter | Ø 309 mm |
| Width | Ø 309 mm |
| Height | Ø 309 mm |
| Depth | 129.7 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 4.7 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.33 x 0.16 x 0.33 m |
| Gross weight | 5 kg |
| Net weight | 4.7 kg |
