H1-9040P

Kod EAN: 4007754425833

PA mid-high range horn Durable reinforced polymer horn 25 mm (1") flange connection with 2 x M6 screw connection (hole spacing: 76 mm) Recommended minimum crossover frequency: 1.5 kHz Manufacturer information: Celestion International LtdClaydon...

víc

Staň se partnerem
Kup teď

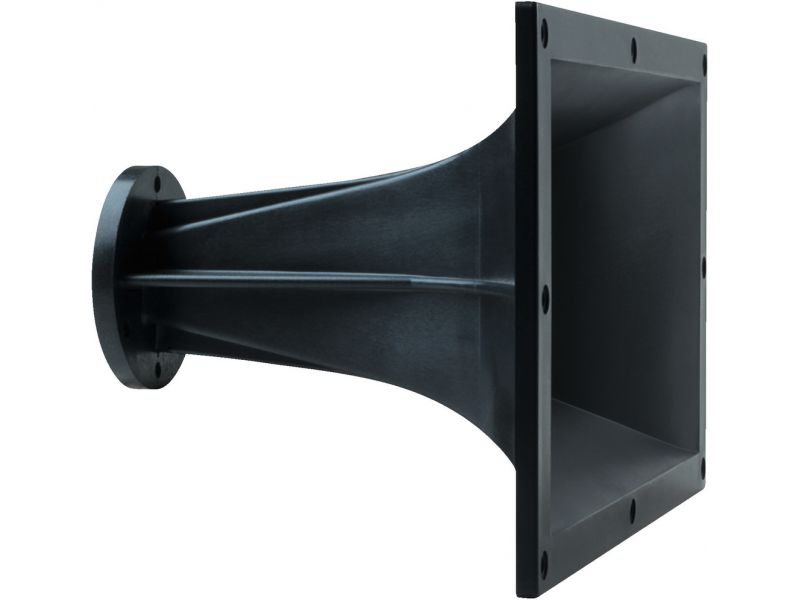

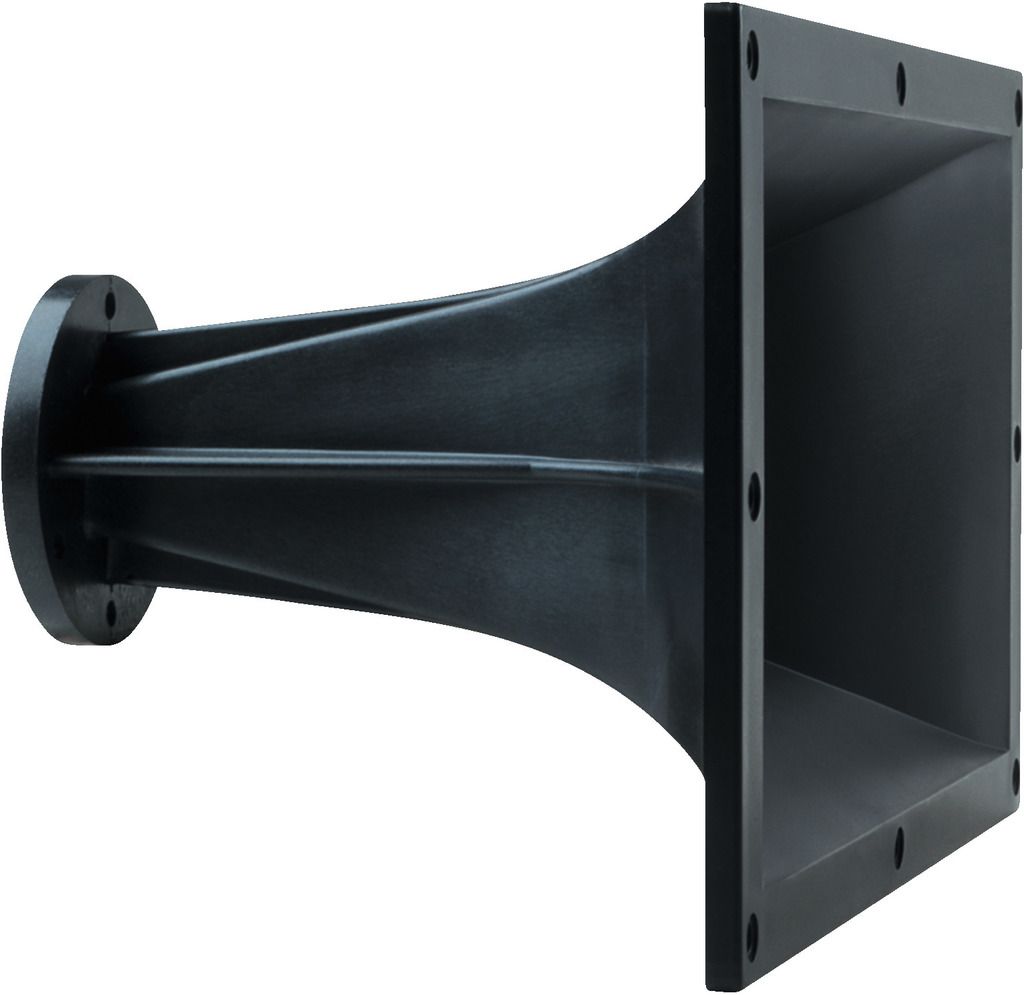

H1-9040P

PA mid-high range horn
  • Durable reinforced polymer horn
  • 25 mm (1") flange connection with 2 x M6 screw connection (hole spacing: 76 mm)
  • Recommended minimum crossover frequency: 1.5 kHz
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Description exponential horn
Material polymer (ABS)
Frequency range 700-20,000 Hz
Crossover frequency 1.5 kHz

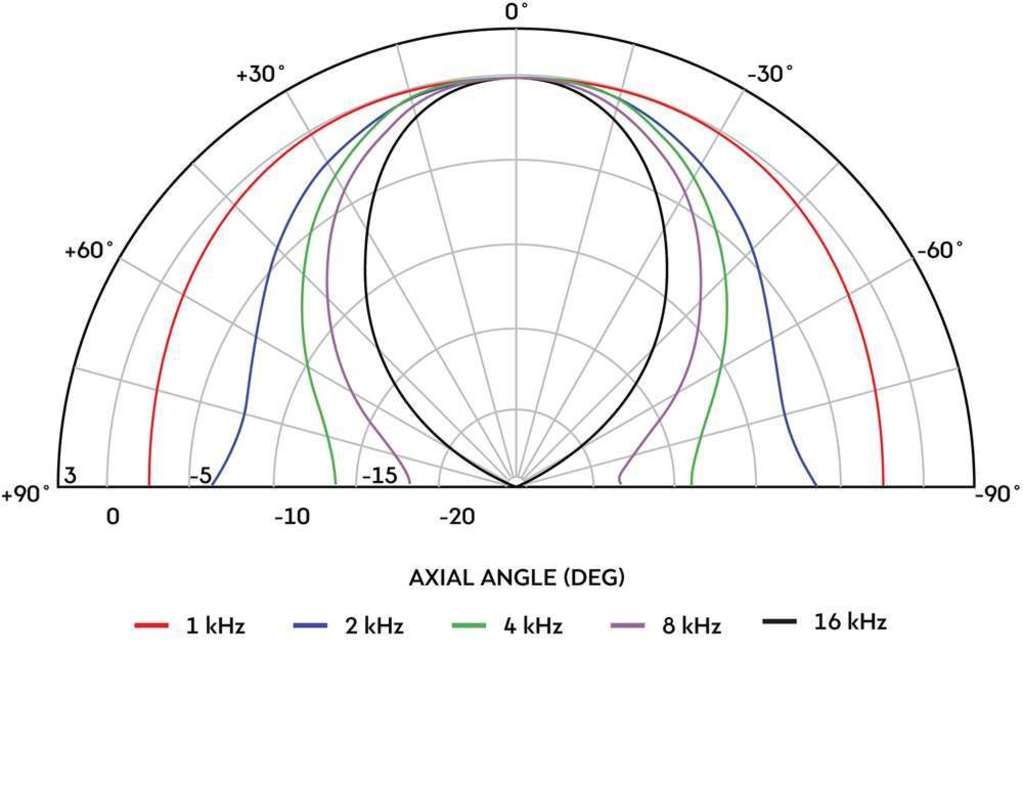

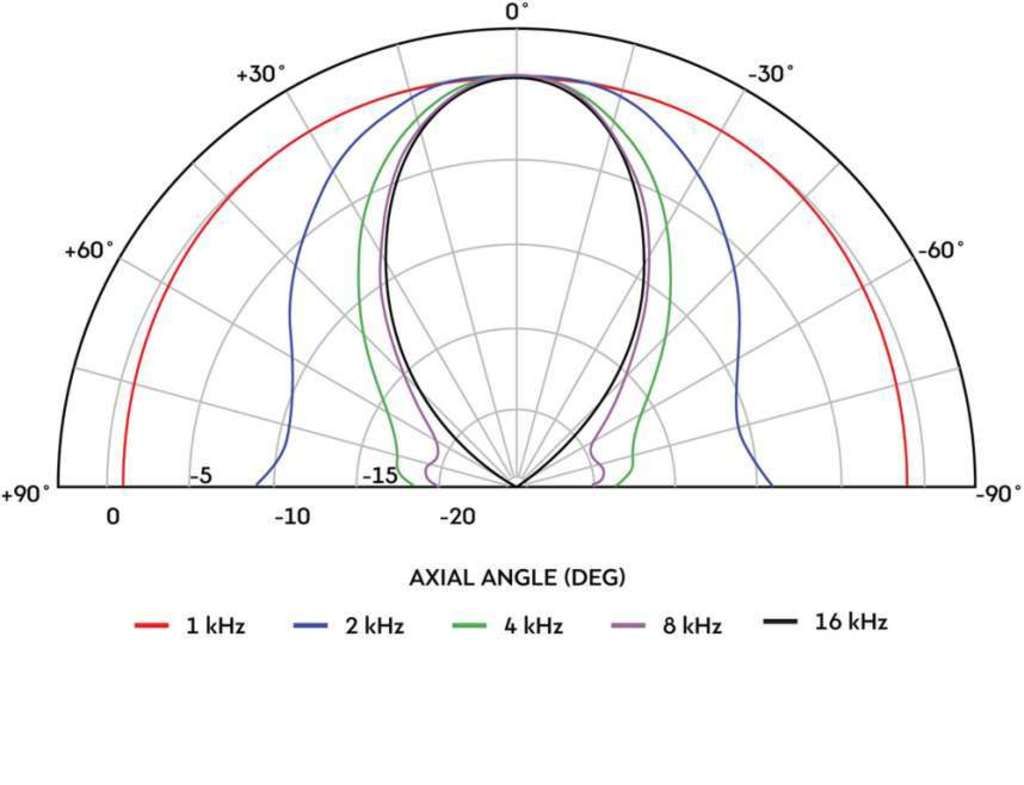

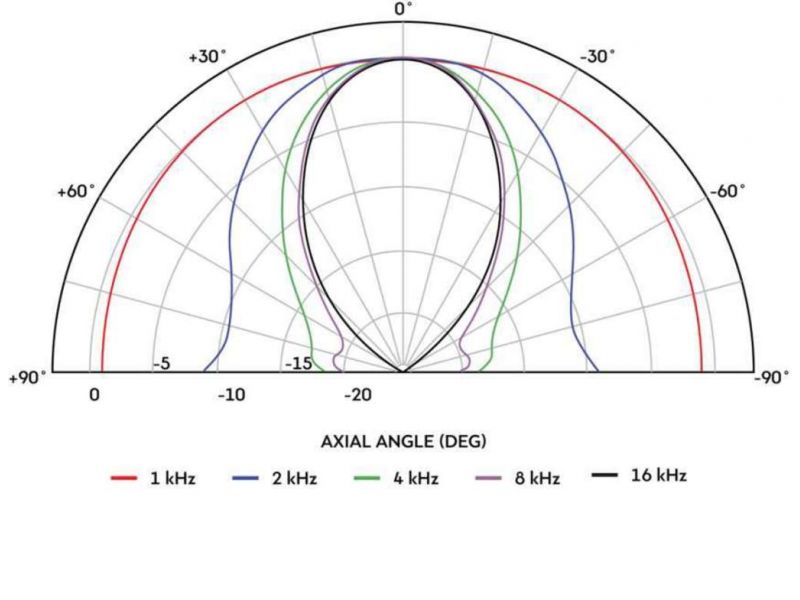

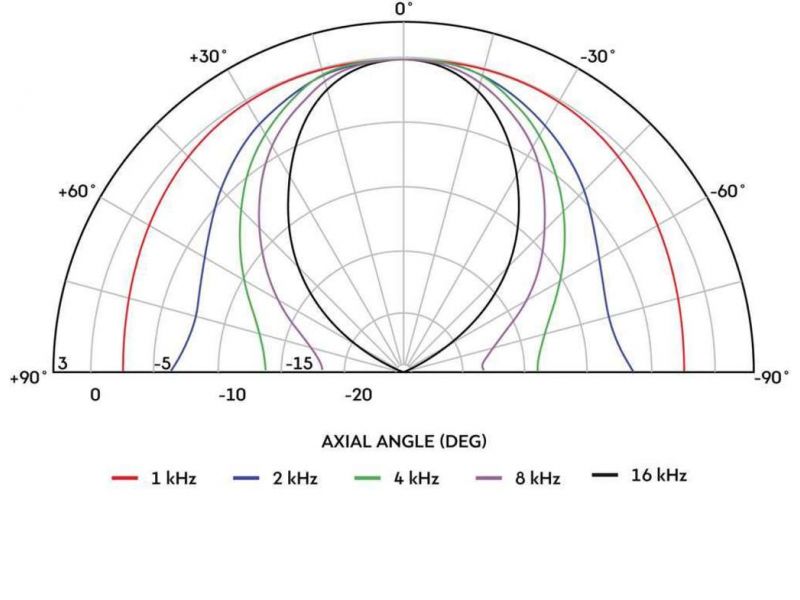

Radiation angle (vert./hor.) 90°/40°
Radiation angle, vertical 40°
Radiation angle, horizontal 90°
Suitable outlet Ø 25.1 mm
Mounting cutout 260 x 165 mm
Mounting depth 208 mm
Dimensions 318 x 199 x 208 mm
Height 199 mm
Width 318 mm
Depth 208 mm
Weight 0.66 kg

Na stáhnutí

Produktová karta H1-9040P Technický produktový list
