H1-7050

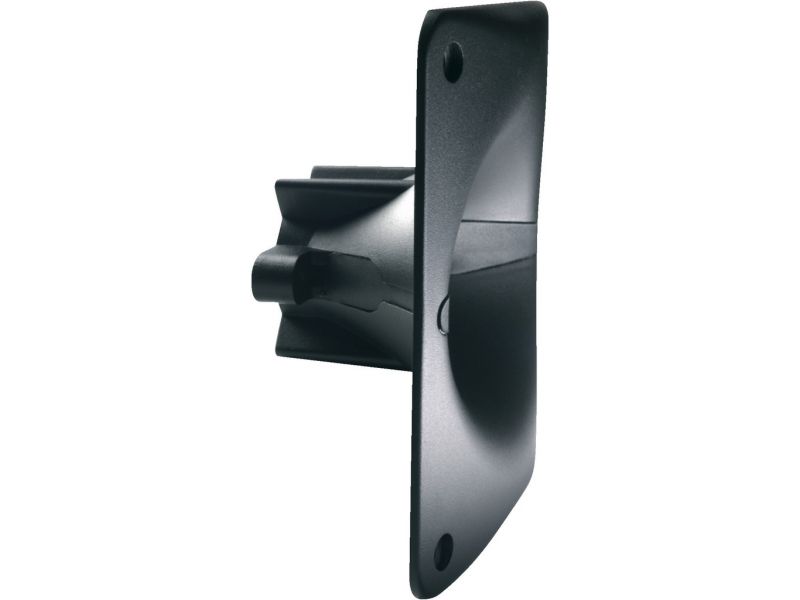

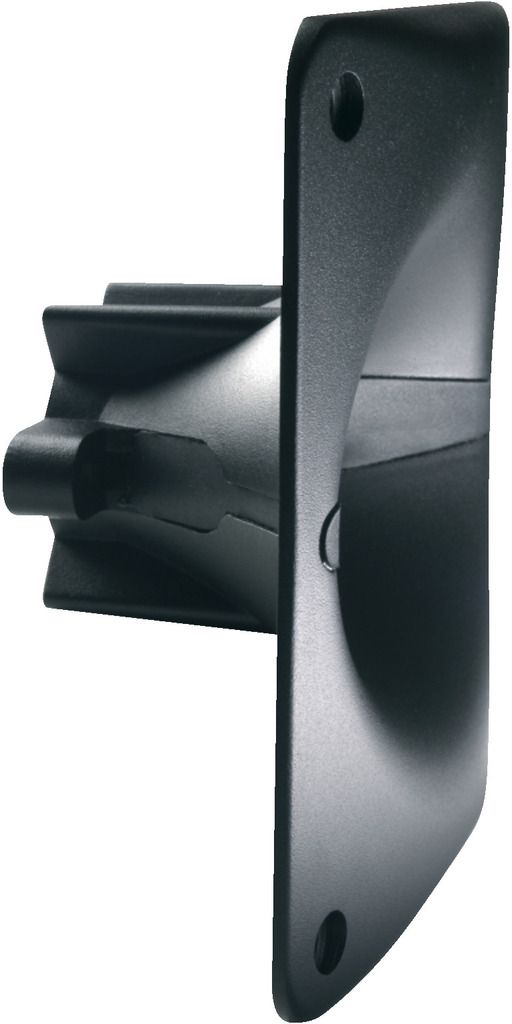

PA mid-high range horn
  • Diecast aluminium horn
  • Resonance-free due to applied rubber elements
  • 25 mm (1") flange connection with standard 2-hole screw connection (hole spacing: 76 mm)
  • Recommended minimum crossover frequency: 1.5 kHz
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Description exponential horn
Material diecast aluminium
Frequency range 1,000-20,000 Hz
Crossover frequency 1.5 kHz

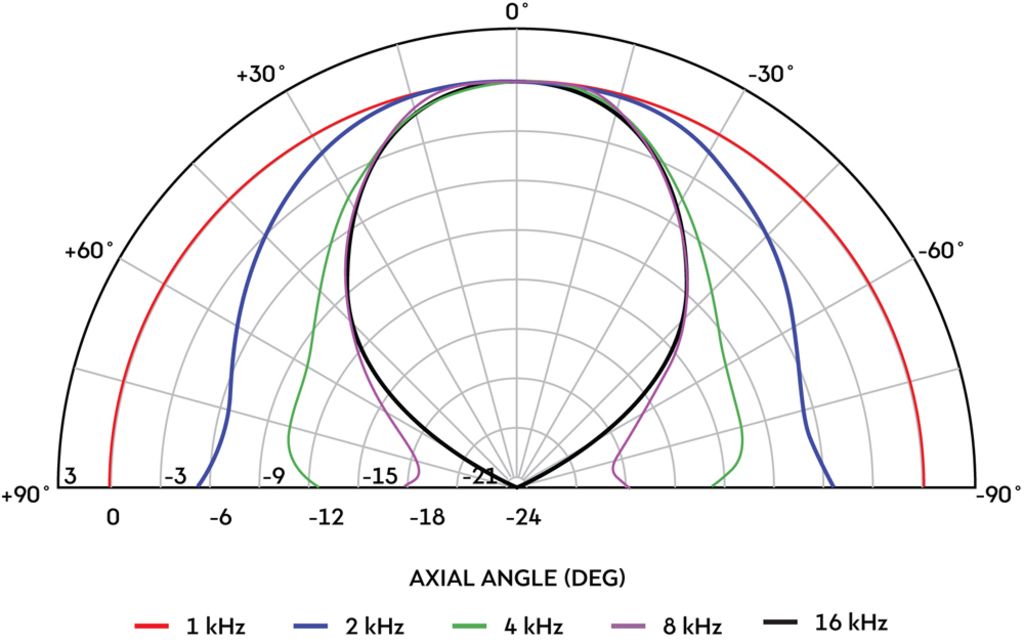

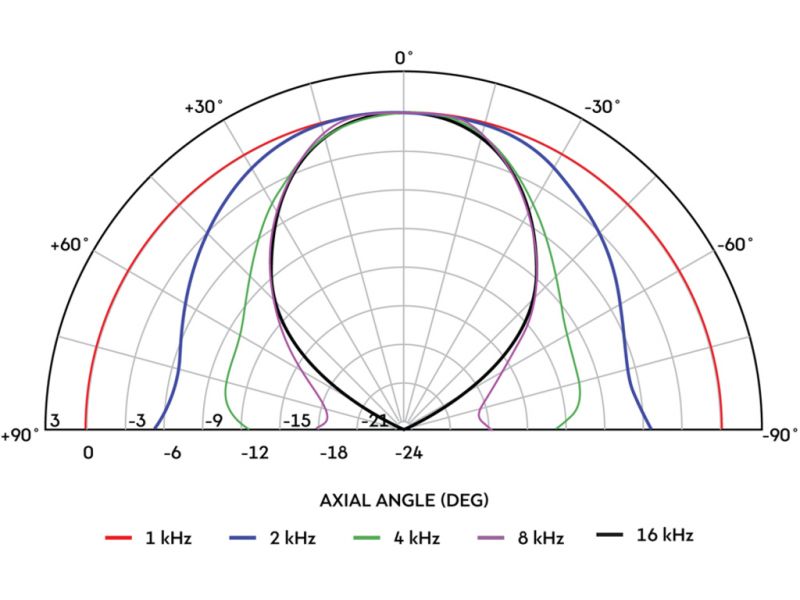

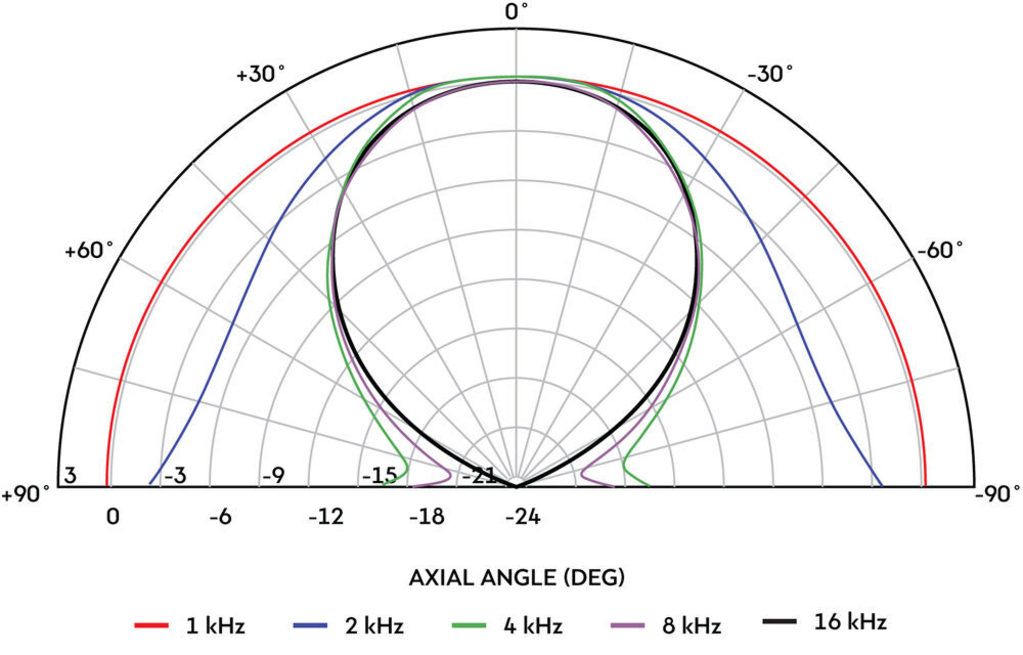

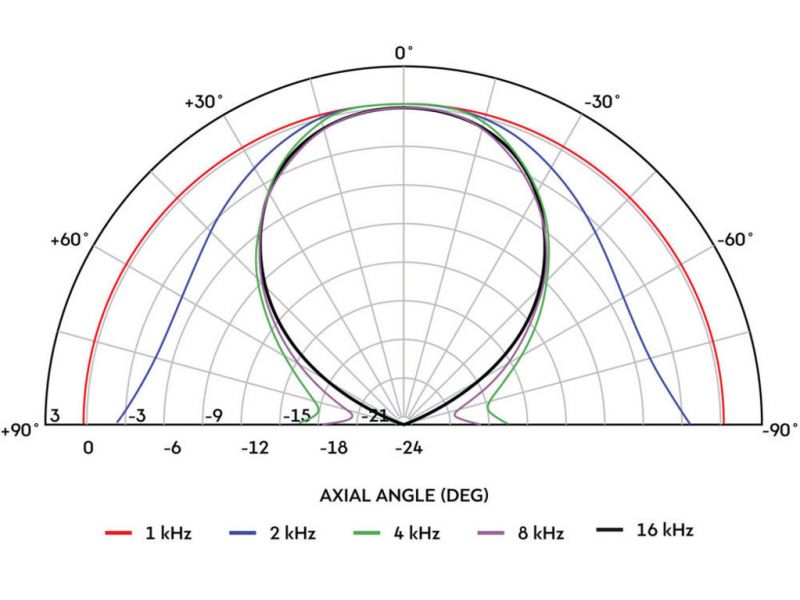

Radiation angle (vert./hor.) 50°/70°
Radiation angle, vertical 50°
Radiation angle, horizontal 70°
Suitable outlet Ø 25.1 mm
Mounting cutout Ø 155 mm
Mounting depth 86 mm
Dimensions 180 x 180 x 90 mm
Height 180 mm
Width 180 mm
Depth 90 mm
Weight 0.7 kg

Na stáhnutí

Produktová karta H1-7050 Technický produktový list
