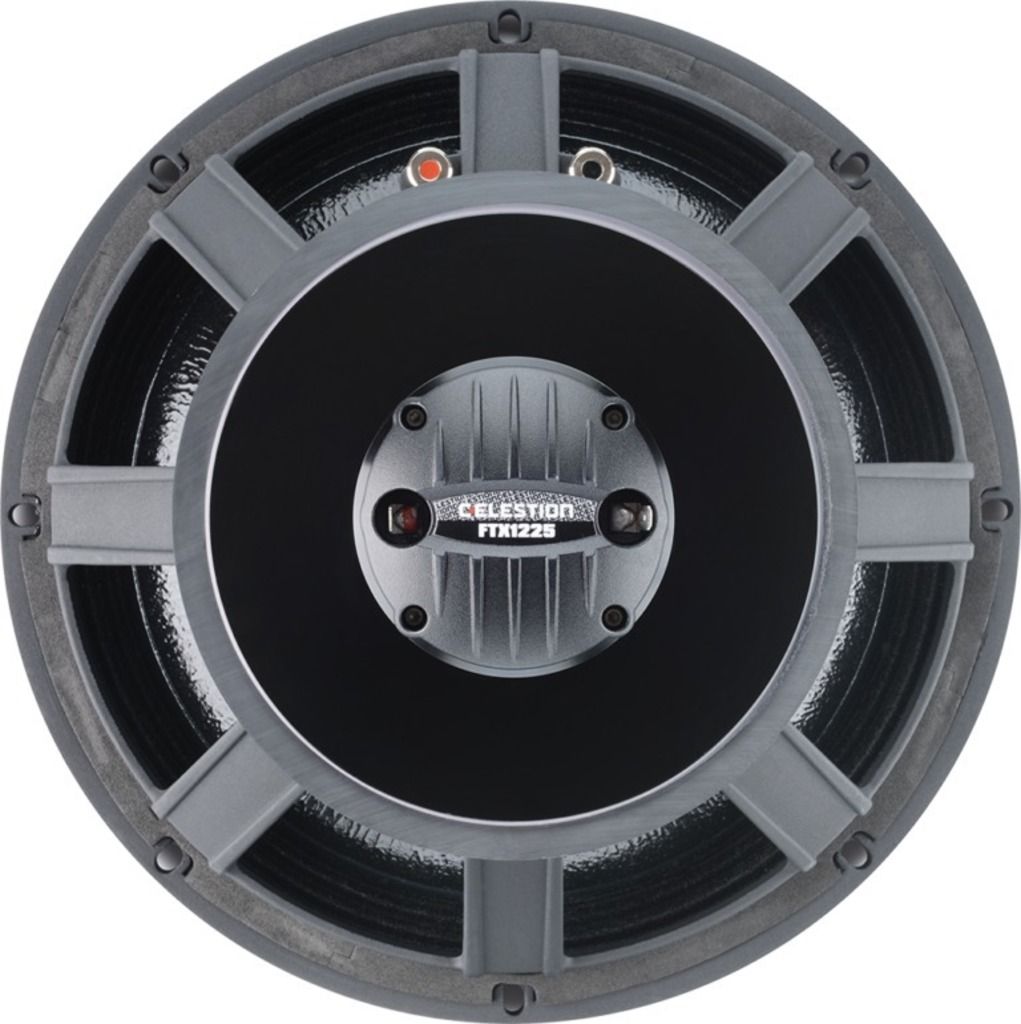

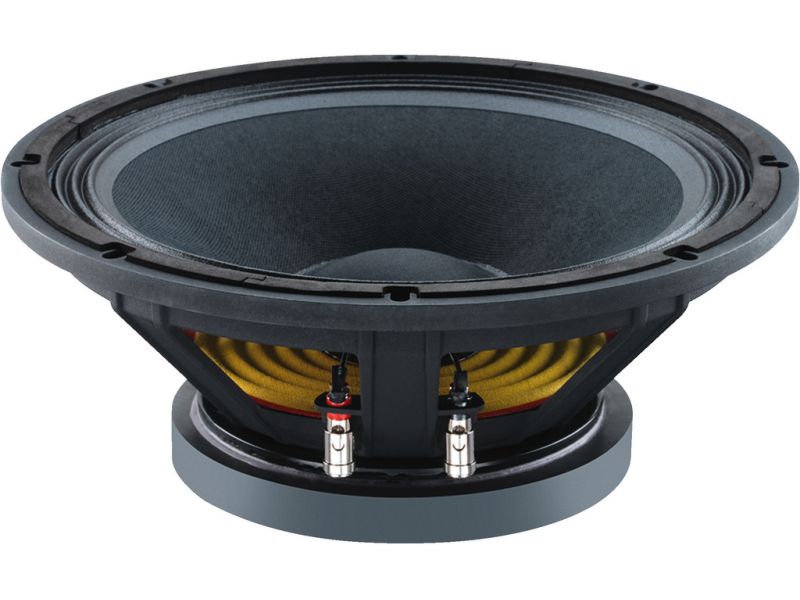

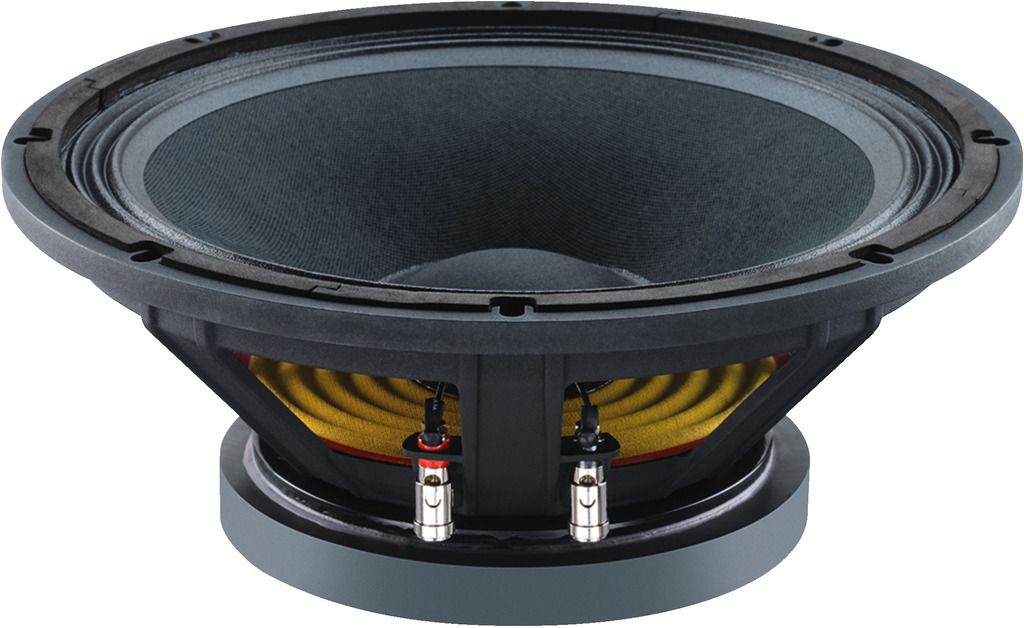

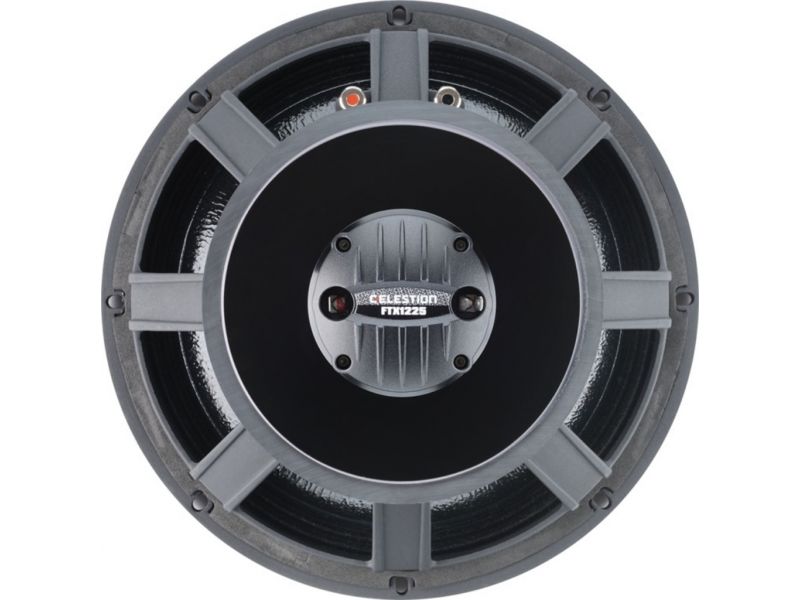

FTX1225/8
PA coaxial speaker, 300 W, 8 Ω
- 305 mm (12") PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter
- Optimised drive with one common magnet only for high-frequency driver and bass driver
- Integrated demodulation rings for reducing electromagnetic distortions
- Robust diecast aluminium basket with rear ventilation of the centering spider
- 90° nominal HF coverage
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

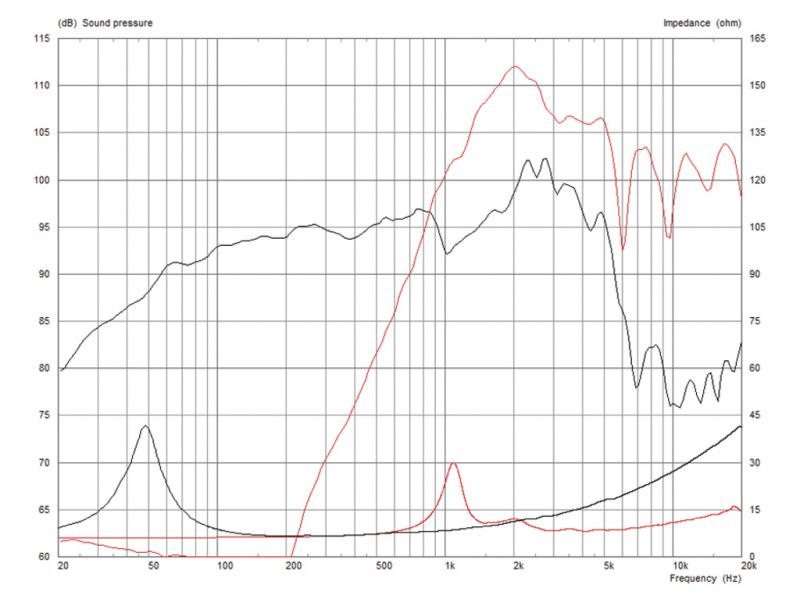

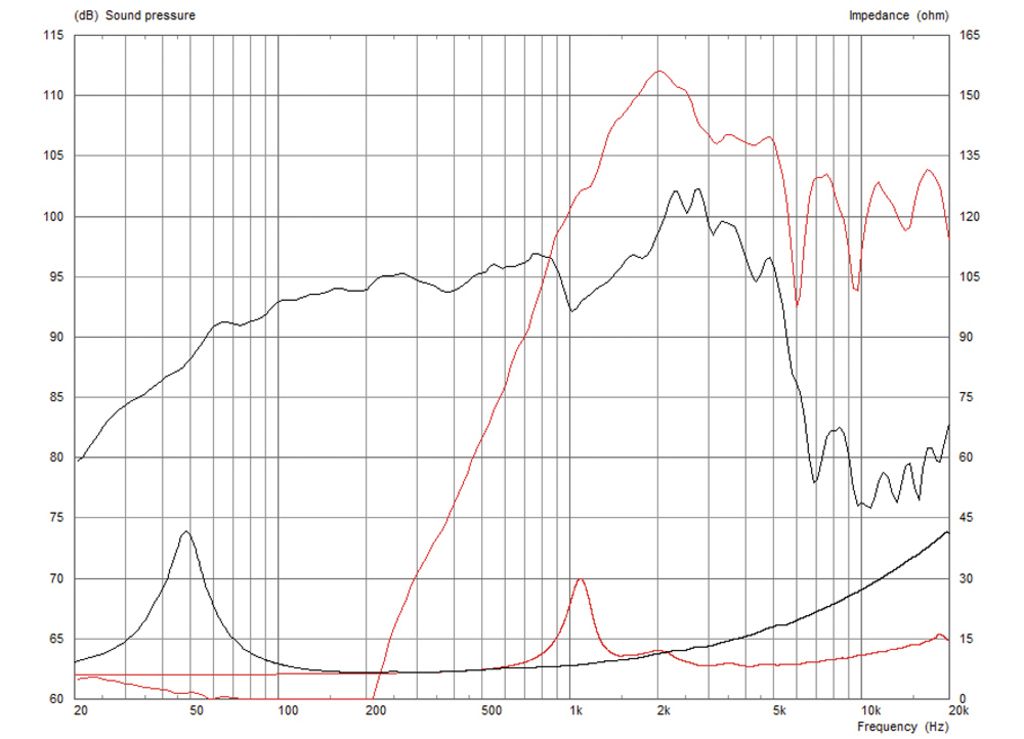

| Frequency range | 50-5,000 Hz (bass speaker) 1000-20,000 Hz (tweeter) |
| Resonant frequency (fs) | 47.3 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,000 Hz |
| Power rating (RMS) | 300 W (bass) / 60 W (tweeter) |
| Peak music power output (MAX) | 600 W (bass) / 120 W (tweeter) |
| SPL | 97 dB (bass) / 104 dB (tweeter) |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 90° |
| Suspension compl. (Cms) | 0.212 mm/N |
| Moving mass (Mms) | 53.50 g |
| Mech. Q factor (Qms) | 4.214 |
| Electr. Q factor (Qes) | 0.437 |
| Total Q factor (Qts) | 0.396 |
| Equivalent volume (Vas) | 84.6 l |
| DC resistance (Re) | 5.39 Ω |
| Force factor (BxL) | 14 Tm |
| Voice coil induct. (Le) | 3.36 mH |
| Voice coil diameter | Ø 64 mm (bass speaker) / Ø 45 mm (tweeter) |
| Voice coil winding height | 16 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 6 mm |
| Eff. cone area (Sd) | 530.93 cm2 |
| Magnet weight | 2.3 kg |
| Mounting cutout | Ø 286 mm |
| Mounting depth | 168 mm |
| Mounting hole diameter | Ø 298-304 mm |
| Dimensions | Ø 318 mm x 168 mm |
| Outside diameter | Ø 318 mm |
| Width | 318 mm |
| Height | 318 mm |
| Depth | 168 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 5.98 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.356 x 0.2 x 0.356 m |
| Gross weight | 7.28 kg |
| Net weight | 5.98 kg |
