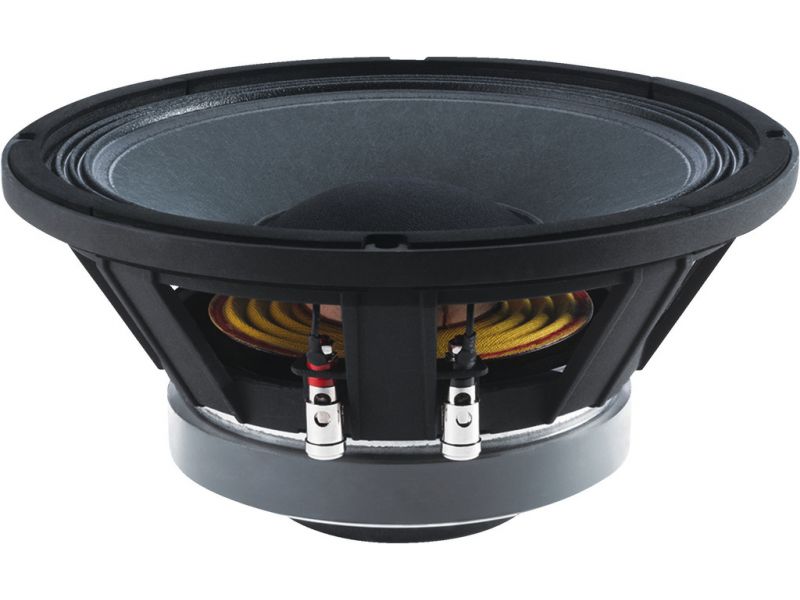

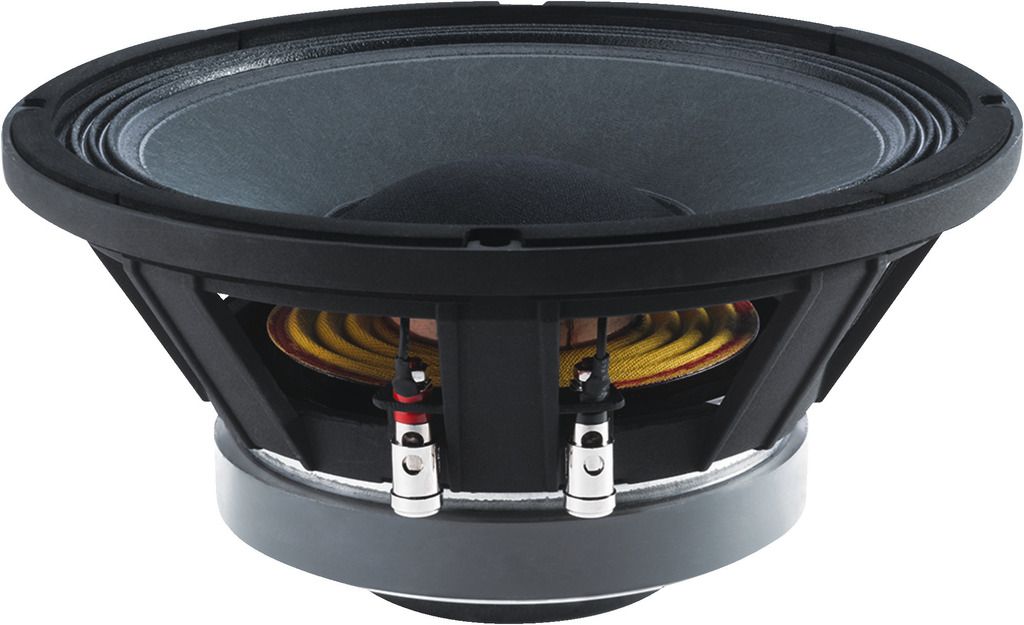

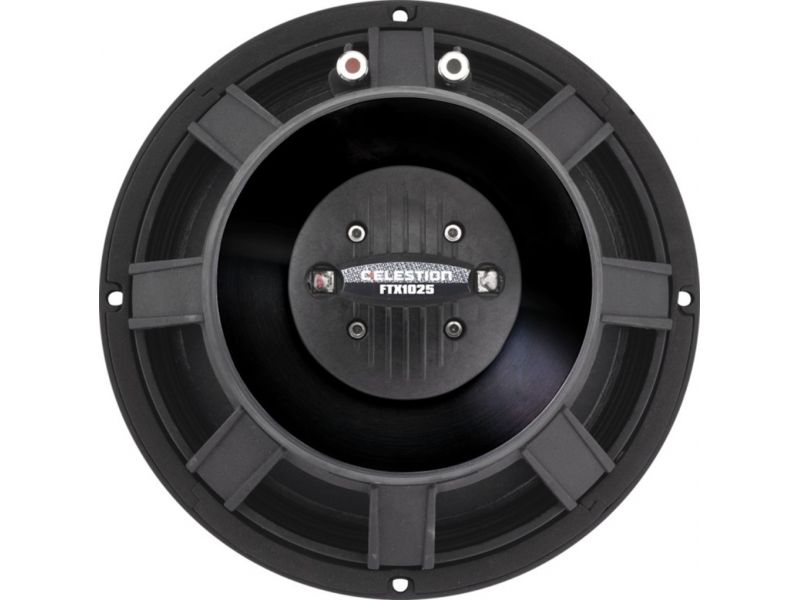

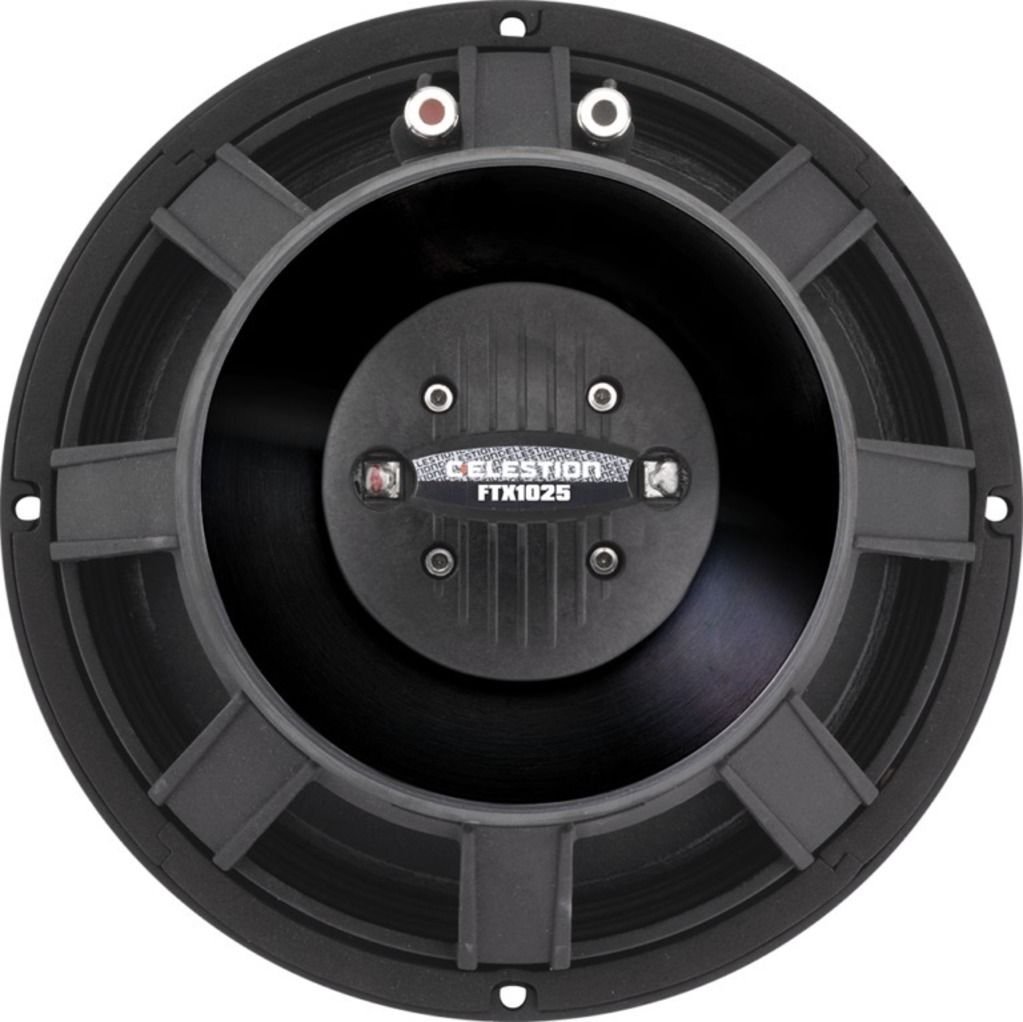

FTX1025/8
PA coaxial speaker, 300 W, 8 Ω
- 254 mm (10") PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter
- Optimised drive with one common magnet only for high-frequency driver and bass driver
- Integrated demodulation rings for reducing electromagnetic distortions
- Robust diecast aluminium basket with rear ventilation of the centering spider
- 100° nominal HF coverage
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

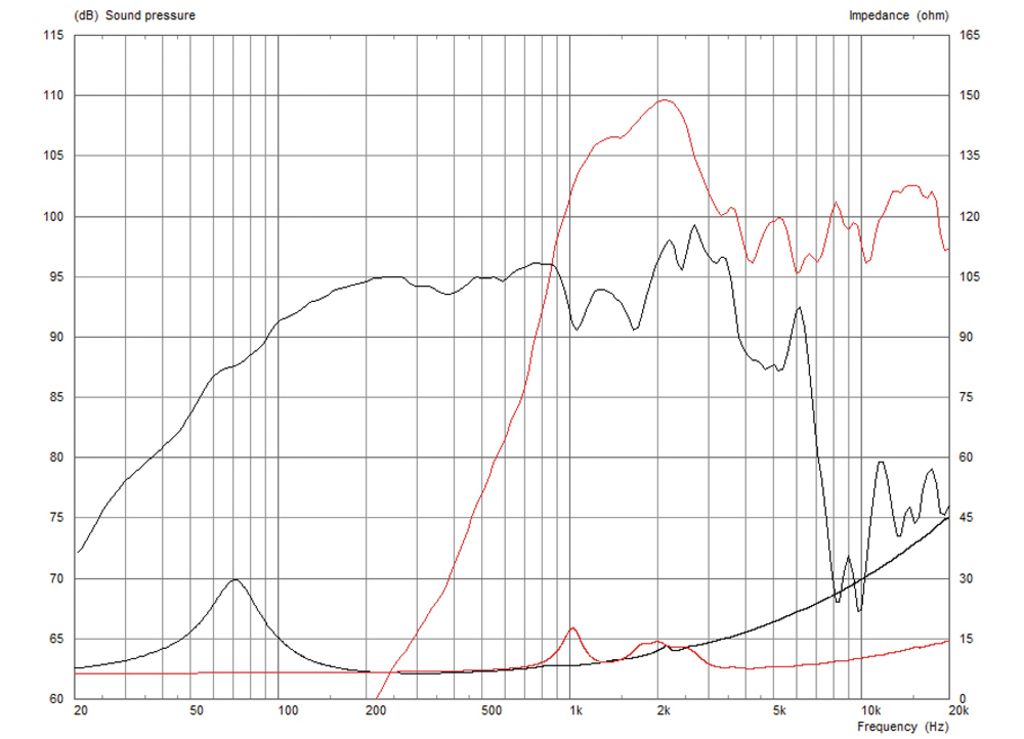

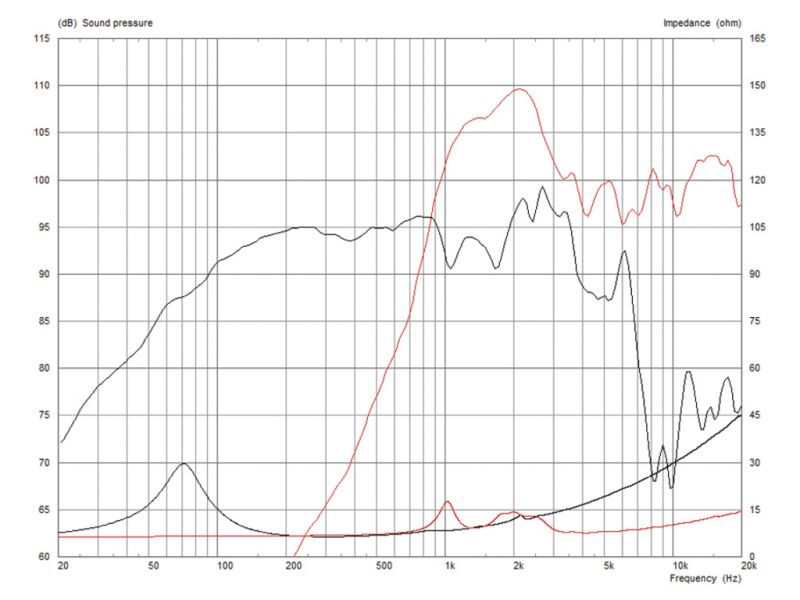

| Frequency range | 60-5,000 Hz (bass speaker) 1000-20,000 Hz (tweeter) |
| Resonant frequency (fs) | 78.80 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,200 Hz |
| Power rating (RMS) | 300 W (bass) / 40 W (tweeter) |
| Peak music power output (MAX) | 600 W (bass) / 80 W (tweeter) |
| SPL | 96 dB (bass) / 104 dB (tweeter) |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 100° |
| Suspension compl. (Cms) | 0.15 mm/N |
| Moving mass (Mms) | 32.55 g |
| Mech. Q factor (Qms) | 2.788 |
| Electr. Q factor (Qes) | 0.523 |
| Total Q factor (Qts) | 0.44 |
| Equivalent volume (Vas) | 25.9 l |
| DC resistance (Re) | 5.42 Ω |
| Force factor (BxL) | 12.30 Tm |
| Voice coil induct. (Le) | 0.48 mH |
| Voice coil diameter | Ø 64 mm (bass speaker) / Ø 34 mm (tweeter) |
| Voice coil winding height | 14 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 5 mm |
| Eff. cone area (Sd) | 346.36 cm2 |
| Magnet weight | 1.5 kg |
| Mounting cutout | Ø 234 mm |
| Mounting depth | 123 mm |
| Mounting hole diameter | Ø 244-247 mm |
| Dimensions | Ø 260 mm x 123 mm |
| Outside diameter | Ø 260 mm |
| Width | 260 mm |
| Height | 260 mm |
| Depth | 123 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 4.5 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.303 x 0.178 x 0.303 m |
| Gross weight | 5.3 kg |
| Net weight | 4.5 kg |
