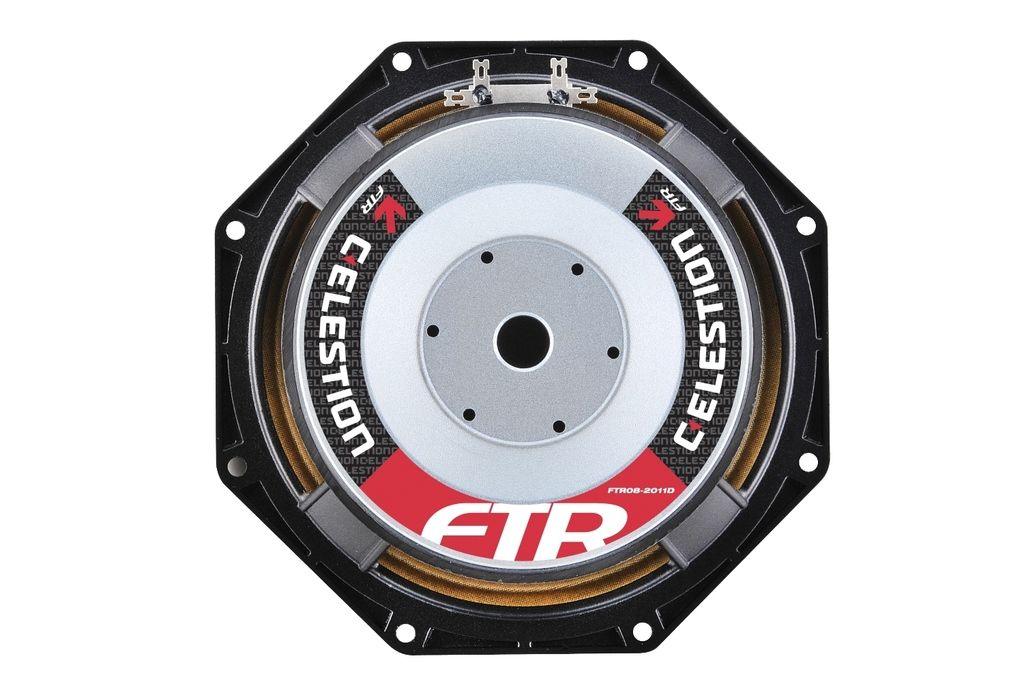

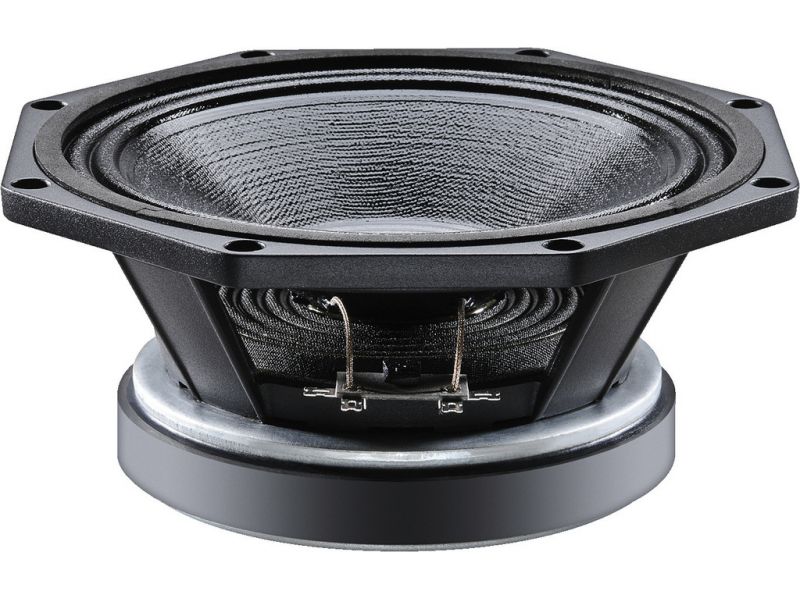

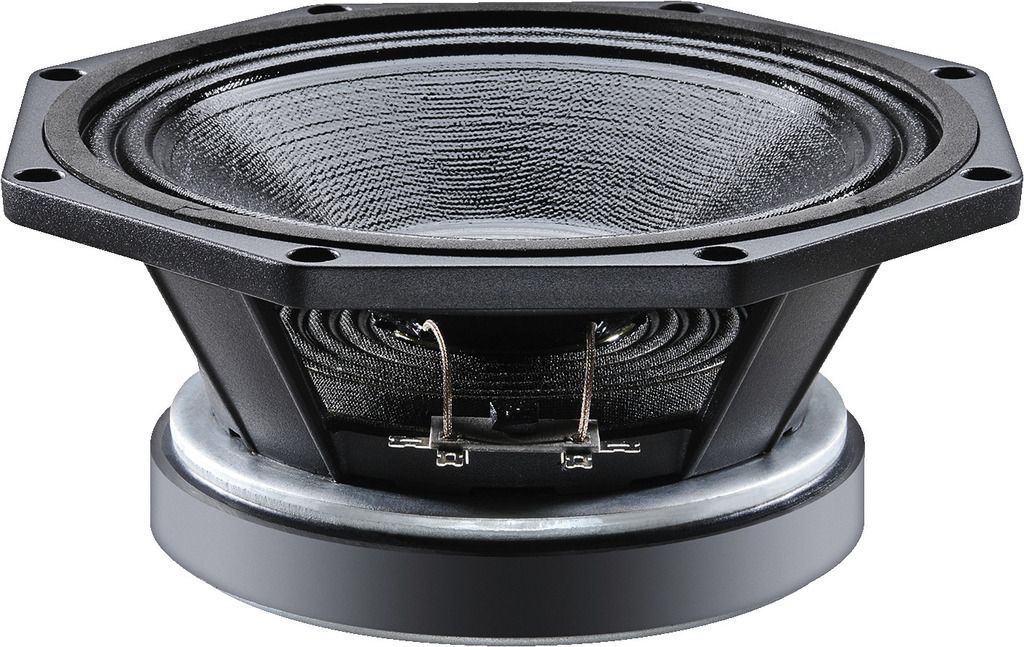

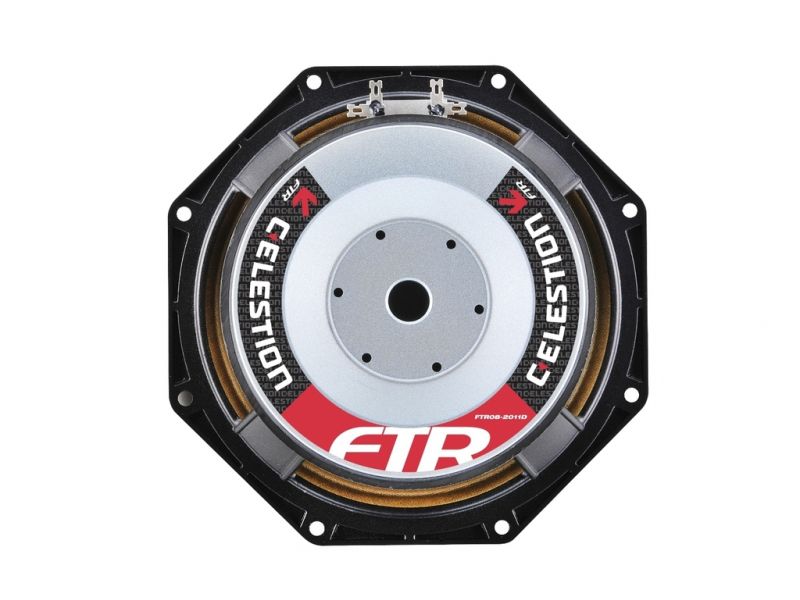

FTR08-2011D/8
Kod EAN: 0739894586054
PA bass-midrange speaker, 200 W, 8 Ω Coated Kevlar cone for improved weather resistance Copper-coated pole core reduces inductive high-frequency peaks Ventilated magnet arrangement for dynamic heat dissipation
FTR08-2011D/8
PA bass-midrange speaker, 200 W, 8 Ω
- Coated Kevlar cone for improved weather resistance
- Copper-coated pole core reduces inductive high-frequency peaks
- Ventilated magnet arrangement for dynamic heat dissipation
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 70-6,000 Hz |
| Resonant frequency (fs) | 86.10 Hz |
| Power rating (RMS) | 200 W |
| Peak music power output (MAX) | 400 W |
| SPL | 93 dB/W/m |
| Suspension compl. (Cms) | 0.12 mm/N |
| Moving mass (Mms) | 27.75 g |
| Mech. Q factor (Qms) | 2.238 |
| Electr. Q factor (Qes) | 0.5 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 9.0 l |
| DC resistance (Re) | 5.82 Ω |
| Force factor (BxL) | 12.71 Tm |
| Voice coil induct. (Le) | 0.38 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil winding height | 15 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 5.5 mm |
| Eff. cone area (Sd) | 226.98 cm2 |
| Magnet weight | 1.2 kg |
| Mounting cutout | Ø 187 mm |
| Mounting depth | 102 mm |
| Mounting hole diameter | Ø 210 mm |
| Dimensions | Ø 225 mm x 102 mm |
| Outside diameter | Ø 225 mm |
| Width | Ø 225 mm |
| Height | Ø 225 mm |
| Depth | 102 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.6 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0,229 x 0,15 x 0,229 m |
| Gross weight | 4.2 kg |
| Net weight | 3.6 kg |
