FGA-22
Kod EAN: 4007754172133
Transformer, for connecting speaker outputs of a car radio to the line inputs of an amplifier. Internal ground separation Open cable ends, gold-plated RCA jacks Max. input power: 20 W Input/output impedance: 120 Ω/200 Ω Frequency range: 20-30,000 H...
17,60 € brutto
(inkl. 23% DPH)
14,31 € netto

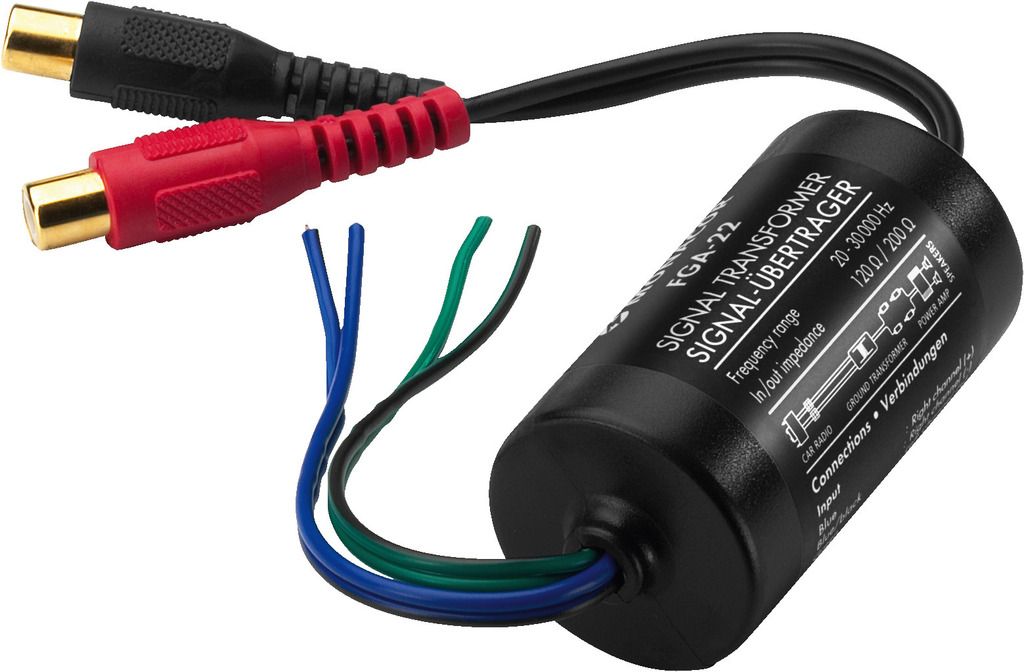

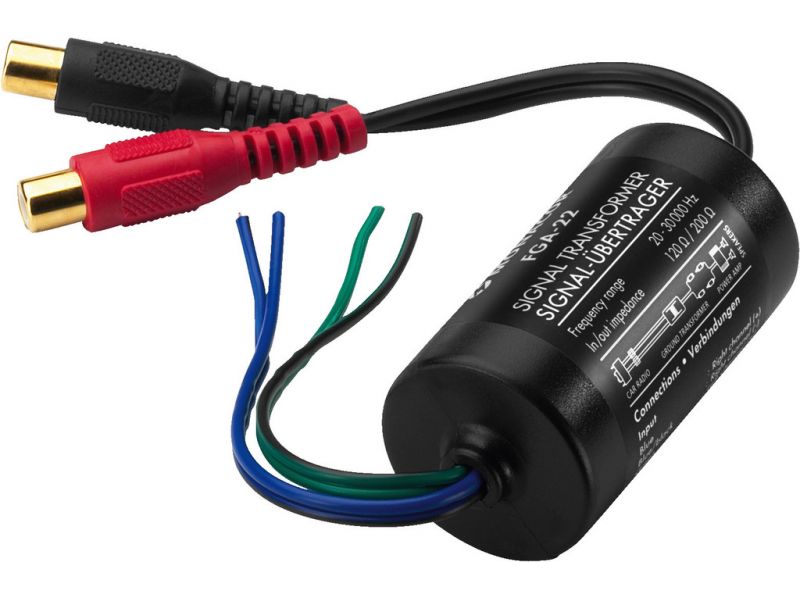

FGA-22
Transformer,
for connecting speaker outputs of a car radio to the line inputs of an amplifier.
- Internal ground separation
- Open cable ends, gold-plated RCA jacks
- Max. input power: 20 W
- Input/output impedance: 120 Ω/200 Ω
- Frequency range: 20-30,000 Hz
- THD: < 0.001%
- Ø 35 mm x 65 mm, 58 g
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | transformer |
| Frequency range | 20-30,000 Hz |
| Input impedance | 120 Ω |
| Output impedance | 200 Ω |
| THD | < 0.001% |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 35mm x 65 mm |
| Weight | 58 g |
| Inputs | open cable ends |
| Outputs | 1 x RCA L/R |
