ESP-50AB/WS
Kod EAN: 4007754233377
PA A/B wall speaker, with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849 and DIN VDE 0833-4. 100 V transmission technology 2 separate full range speakers (10 cm), each with its own transformer 6/3...
106,00 € brutto
(inkl. 23% DPH)
86,18 € netto

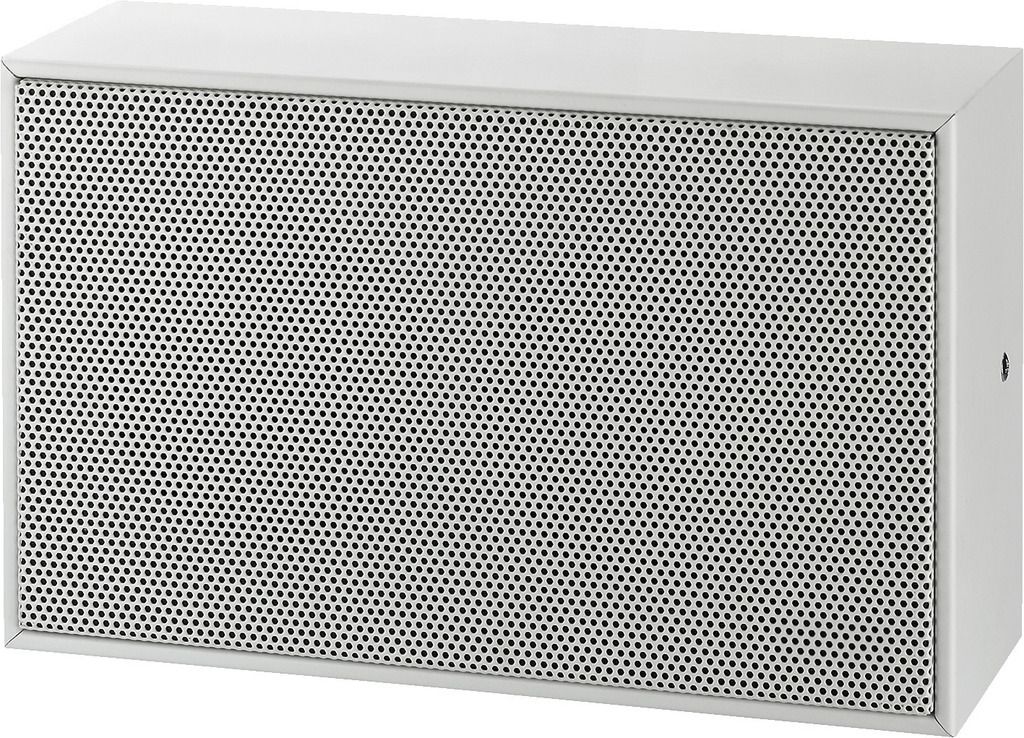

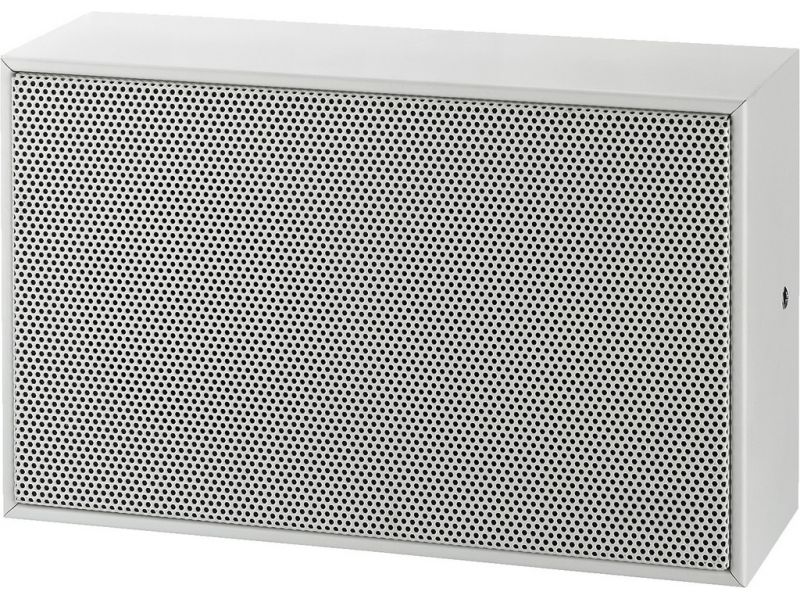

ESP-50AB/WS
PA A/B wall speaker,
with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849 and DIN VDE 0833-4.
- 100 V transmission technology
- 2 separate full range speakers (10 cm), each with its own transformer 6/3/1.5 W
- Connection via 2 spring-loaded terminals inside the cabinet
- Wooden cabinet with protective metal grille
- Easy wall mounting via supplied metal bracket and mounting accessories
- Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 2 x 6 W |
| Power rating (RMS) | 2 x 6/3/1.5 W |
| Frequency range | 120-20,000 Hz |
| Number of speakers | 2 |
| Speaker size | 10 cm (4") |
| SPL | 2 x 92 dB (1 W/1 m) 76 dB (EN, 1 W/4 m) |
| Max. rated SPL | 2 x 100 dB (1 m) 85 dB (EN, 4 m) |
| Radiation angle/beam angle | H180°/V180° (500 Hz) H83°/V85° (1 kHz) H154°/V148° (2 kHz) H82°/V88° (4 kHz) |
| Radiation angle, horizontal | 180° (500 Hz) 83° (1 kHz) 154° (2 kHz) 82° (4 kHz) |
| Radiation angle, vertical | 180° (500 Hz) 85° (1 kHz) 148° (2 kHz) 88° (4 kHz) |
| Housing material | wood |
| Colour | white |
| Mounting device | metal bracket |
| Protected against ball rebound | yes |
| Admiss. ambient temp. | -10 °C to +50 °C |
| Dimensions | 265 x 165 x 90 mm |
| Width | 265 mm |
| Height | 165 mm |
| Depth | 90 mm |
| Weight | 1.9 kg |
| Inputs | screw terminals |
| Packaging dimensions (W x H x L) | 0.18 x 0.27 x 0.1 m |
| Gross weight | 2.12 kg |
| Net weight | 1.9 kg |
