EDL-416EN/WS

Kod EAN: 4007754254662

Moisture-proof PA ball speaker, with EN 54-24 certification, 1438-CPR-0535. 100 V transmission technology White ABS housing (UL 94HB), UV-resistant and weatherproof Moisture-proof speaker cone Supplied with 450 cm connection cable and canopy Ceram...

víc

109,00 € brutto

(inkl. 20% DPH)
90,83 € netto



EDL-416EN/WS

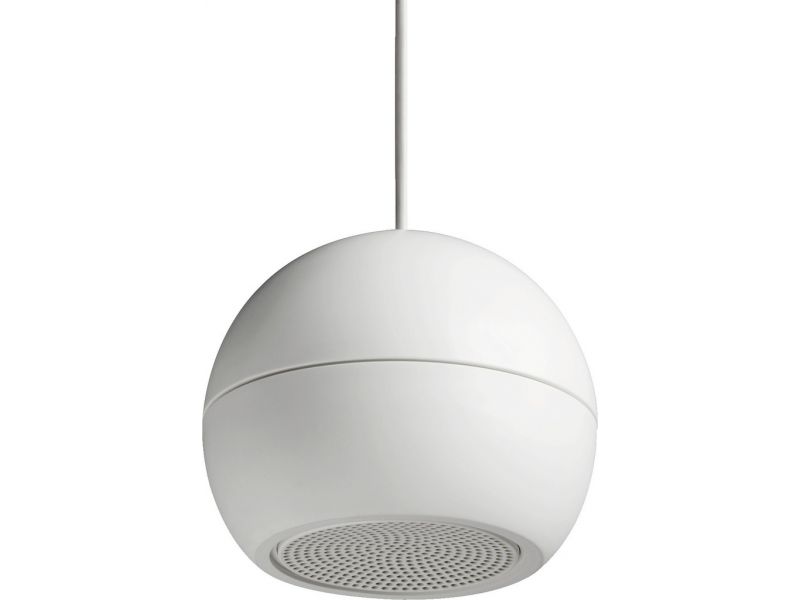

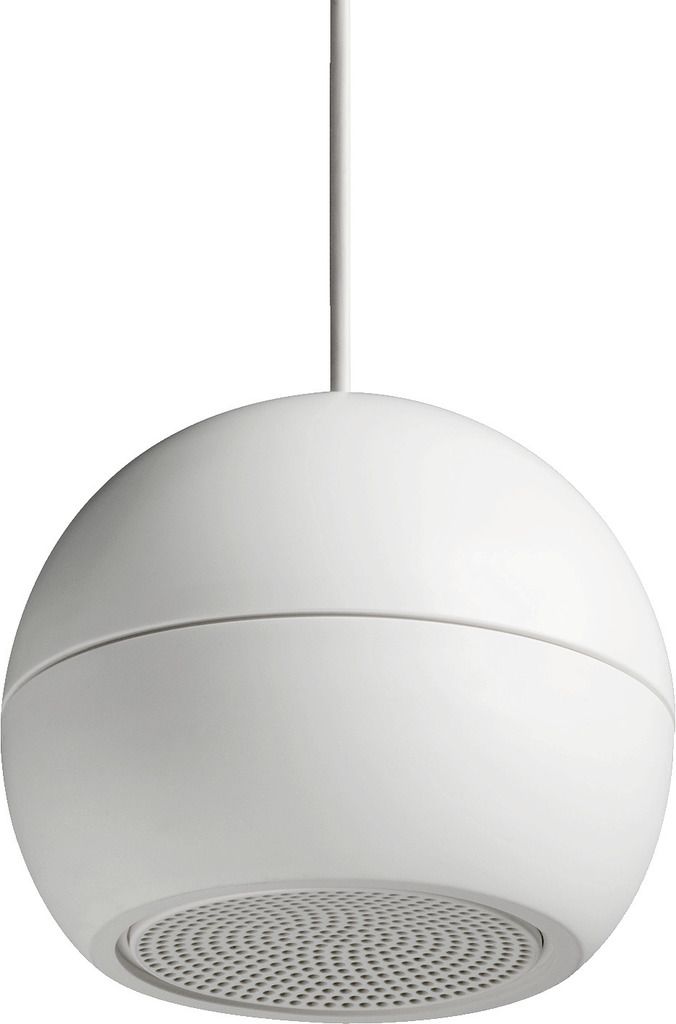

Moisture-proof PA ball speaker,
with EN 54-24 certification, 1438-CPR-0535.
  • 100 V transmission technology
  • White ABS housing (UL 94HB), UV-resistant and weatherproof
  • Moisture-proof speaker cone
  • Supplied with 450 cm connection cable and canopy
  • Ceramic connection terminal, thermal fuse

Parametry

Active/passive passive
Transmission technology 100 V
Power rating (RMS) 16/8/4 W
Frequency range 130-18,000 Hz
System 130 mm full range speaker
Number of speakers 1
Speaker size 13 cm (5")
SPL 89.9 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle 196° (1 kHz)132° (2 kHz)170° (4 kHz)
Radiation angle, horizontal 196° (1 kHz)132° (2 kHz)170° (4 kHz)
Radiation angle, vertical 196° (1 kHz)132° (2 kHz)170° (4 kHz)
Housing material ABS
Colour white, RAL 9010
Mounting device canopy
Protection class IP35
Admiss. ambient temp. -20 °C to +80 °C
Dimensions Ø 185 mm x 157 mm
Width Ø 185 mm
Height 157 mm
Weight 1.6 kg
Inputs ceramic terminal with thermal fuse
Packing dimensions (W x H x L) 0.19 x 0.18 x 0.19 m
Gross weight 1.79 kg
Net weight 1.64 kg
