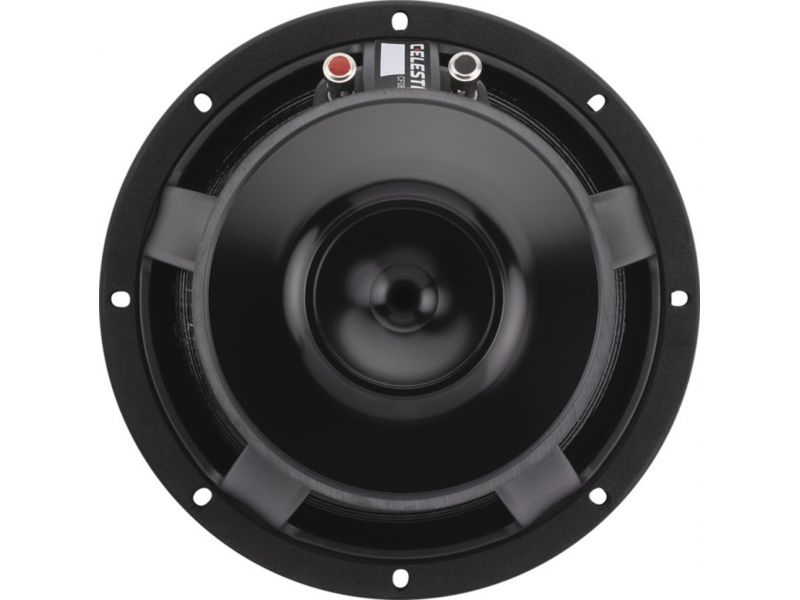

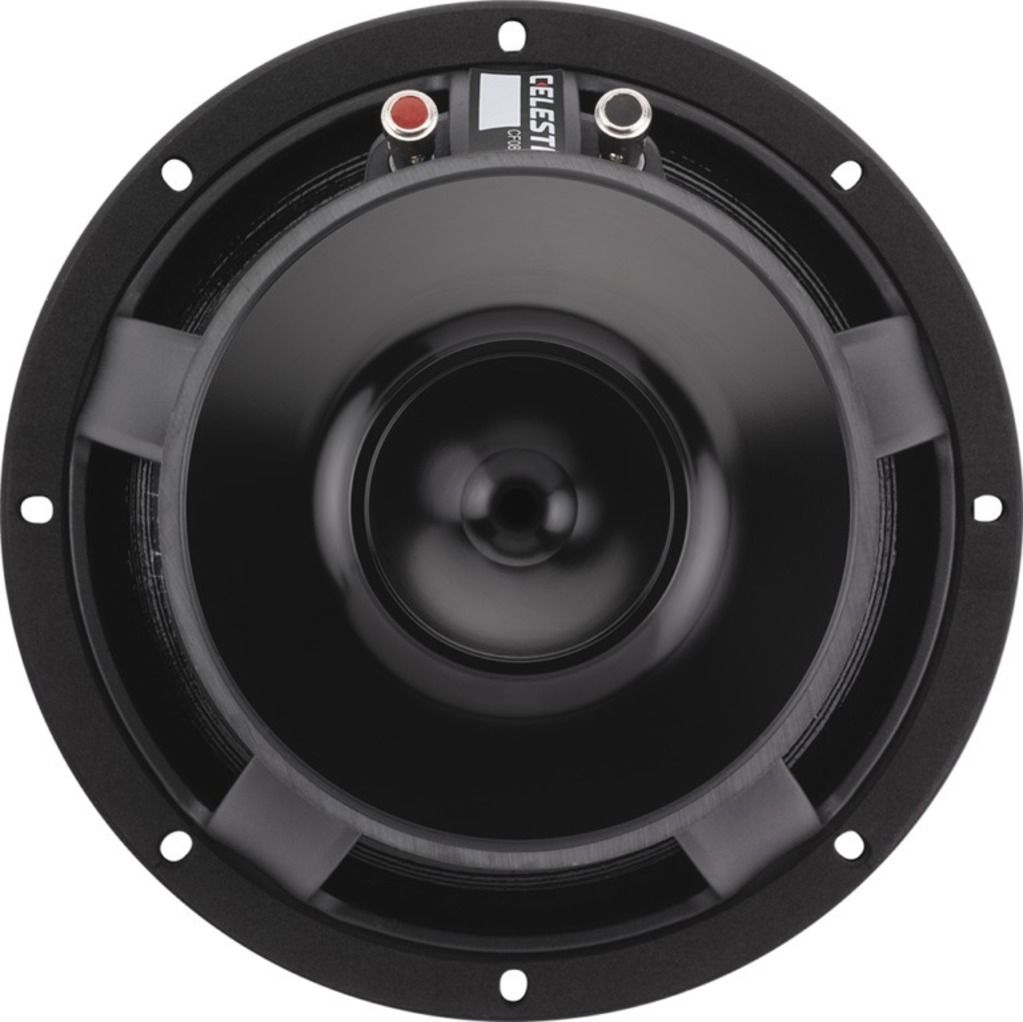

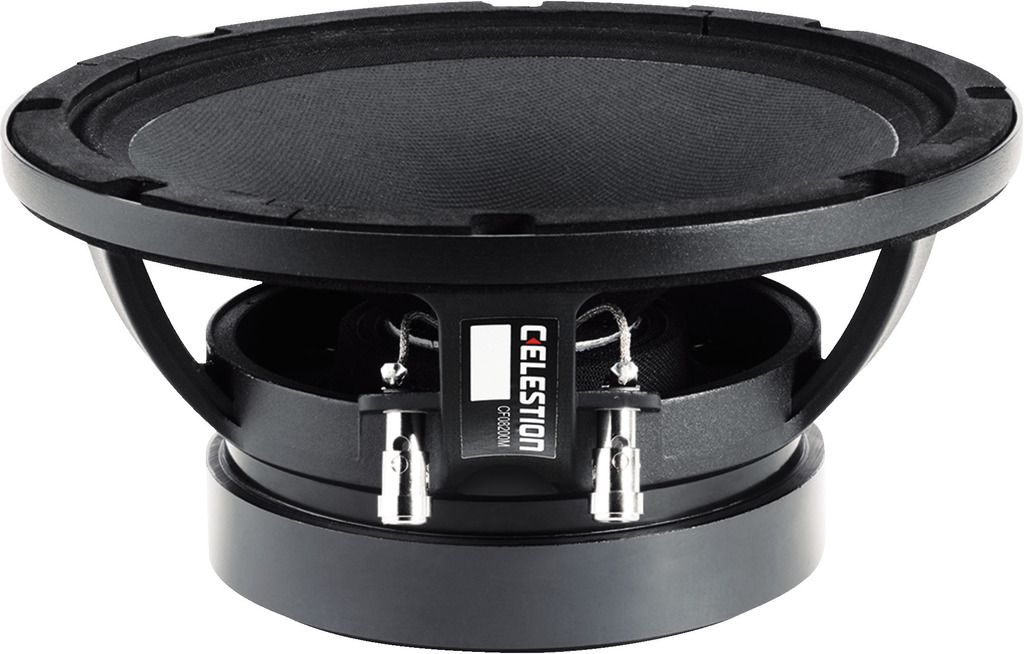

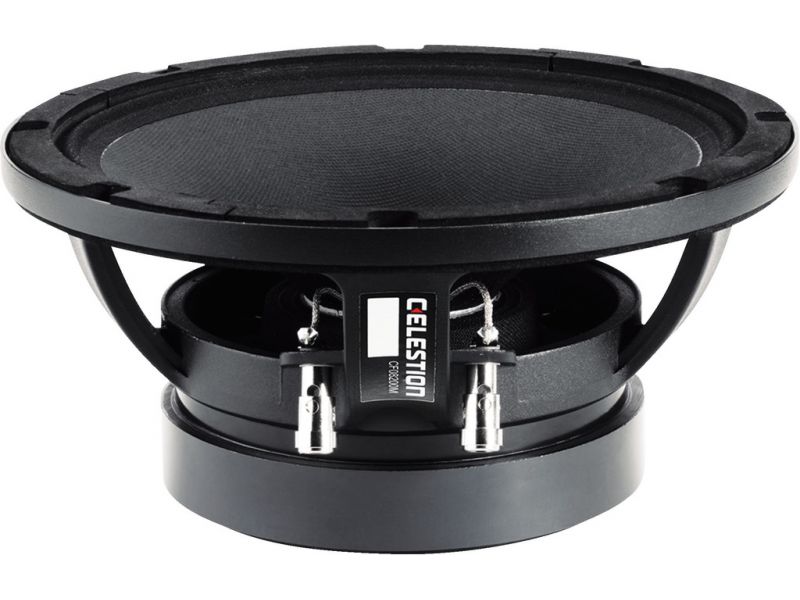

CF0820M/8

PA midrange speaker, 250 W, 8 Ω
  • Compact dimensions for tight positioning on the baffle
  • Copper-clad terminals for reducing inductive high-frequency peaks
  • Airflow ventilation for dynamic heat dissipation
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

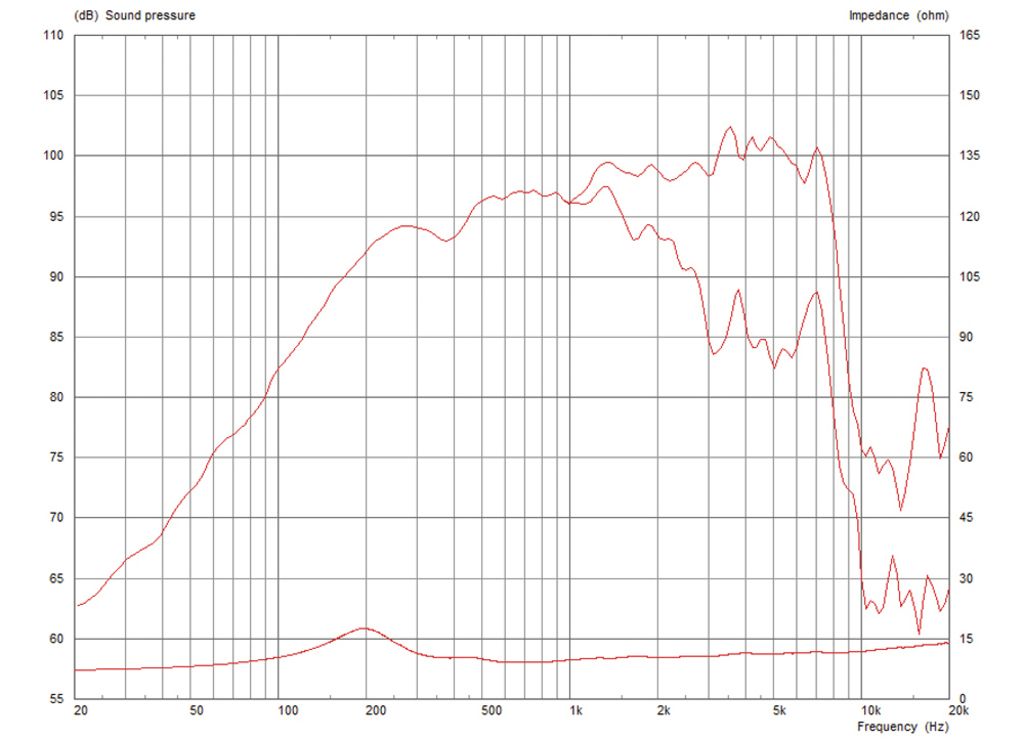

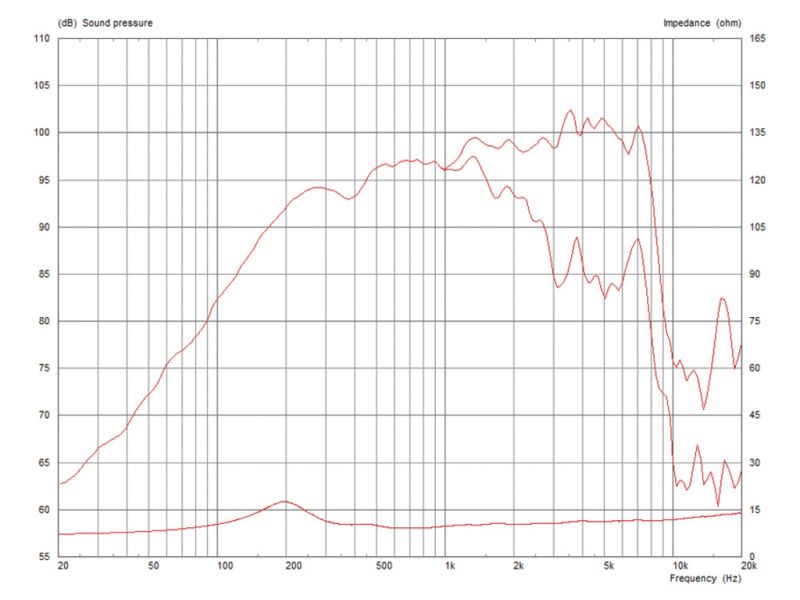

Frequency range 150-6,000 Hz
Resonant frequency (fs) 202 Hz
Power rating (RMS) 250 W
Peak music power output (MAX) 500 W
SPL 98 dB/W/m
Suspension compl. (Cms) 0.03 mm/N
Moving mass (Mms) 21.38 g
Mech. Q factor (Qms) 1.784
Electr. Q factor (Qes) 0.831
Total Q factor (Qts) 0.567
Equivalent volume (Vas) 2.1 l
DC resistance (Re) 5.39 Ω
Force factor (BxL) 13.27 Tm
Voice coil induct. (Le) 0.12 mH
Voice coil diameter Ø 50 mm
Voice coil winding height 11 mm
Voice coil material copper-coated aluminium
Voice coil former glass fibre
Linear excursion (XMAX) ± 3.5 mm
Eff. cone area (Sd) 226.98 cm2
Magnet weight 1.3 kg
Mounting cutout Ø 187 mm
Mounting depth 113 mm
Mounting hole diameter Ø 197-200 mm
Dimensions Ø 215 mm x 113 mm
Outside diameter Ø 215 mm
Width Ø 215 mm
Height Ø 215 mm
Depth 11 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 3.4 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.24 x 0,15 x 0,24 m
Gross weight 4 kg
Net weight 3.4 kg
