CDX1-1748/8

Kod EAN: 0739894630054

PA horn driver, 60 W, 8 Ω High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet One-piece polyamide cone and surround Recommended crossover frequency: 1,600 Hz (12 dB/oct.) 35 mm (1⅜") standard thread

Staň se partnerem
Kup teď

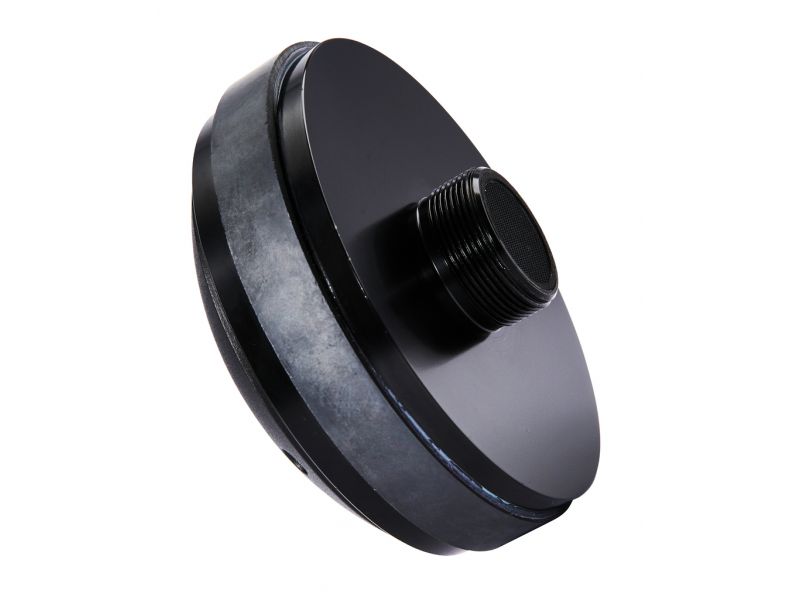

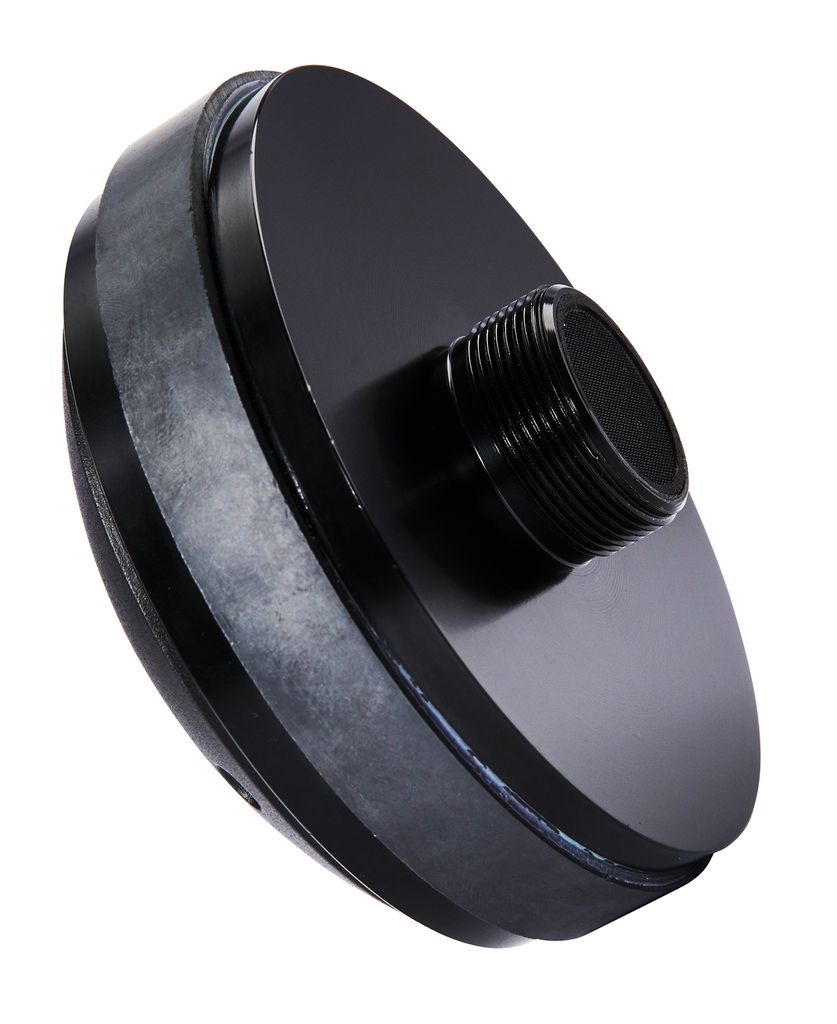

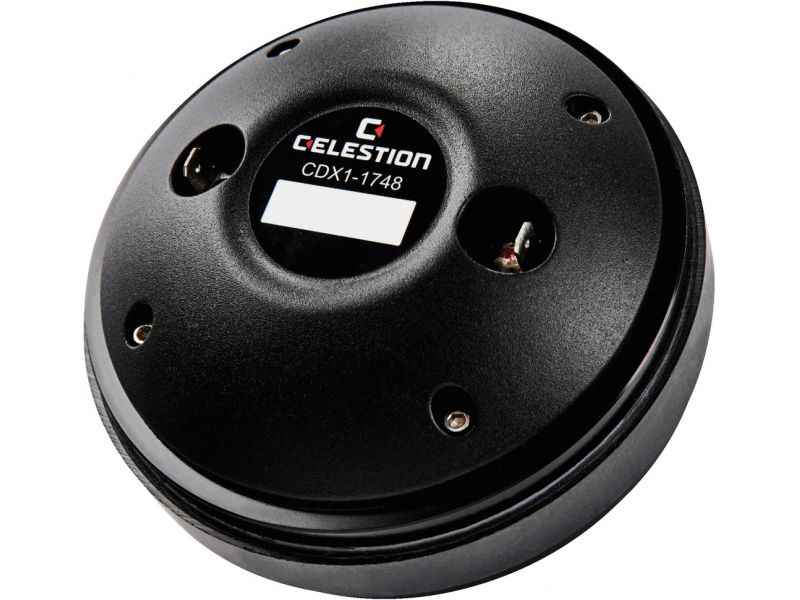

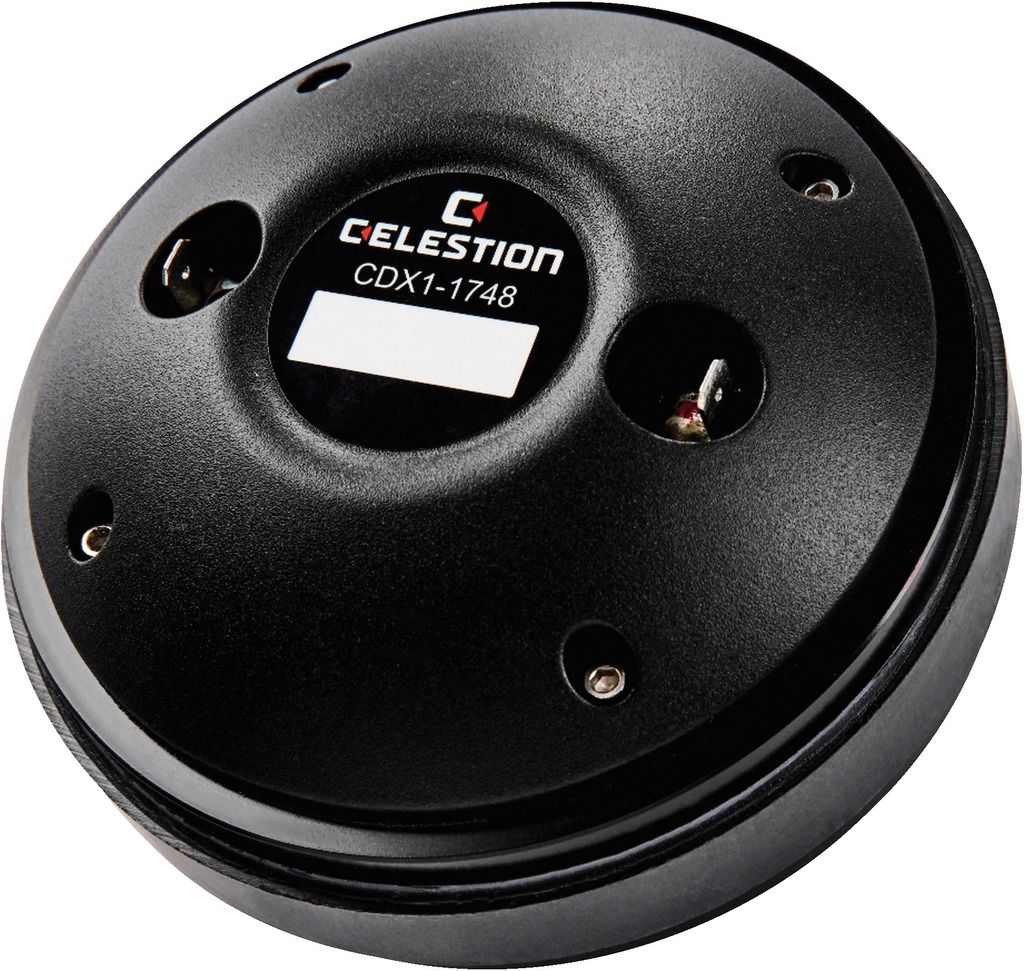

CDX1-1748/8

PA horn driver, 60 W, 8 Ω
  • High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet
  • One-piece polyamide cone and surround
  • Recommended crossover frequency: 1,600 Hz (12 dB/oct.)
  • 35 mm (1⅜") standard thread

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 1,000-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 1,600 Hz
Power rating (RMS) 60 W
Peak music power output (MAX) 120 W
SPL 110 dB/W/m
Voice coil diameter Ø 44 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Dimensions Ø 120 mm x 53 mm
Outside diameter Ø 120 mm
Width Ø 120 mm
Height Ø 120 mm
Depth 53 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.0 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.135 x 0.08 x 0.17 m
Gross weight 2.16 kg
Net weight 2.0 kg

Na stáhnutí

Produktová karta CDX1-1748/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
