CDX1-1742/8

Kod EAN: 0739894598347

PA horn driver, 50 W, 8 Ω High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet One-piece polyamide cone and surround Next generation sound castle soft clamping cone Recommended crossover frequency: 2,000 Hz (12...

víc

Staň se partnerem
Kup teď

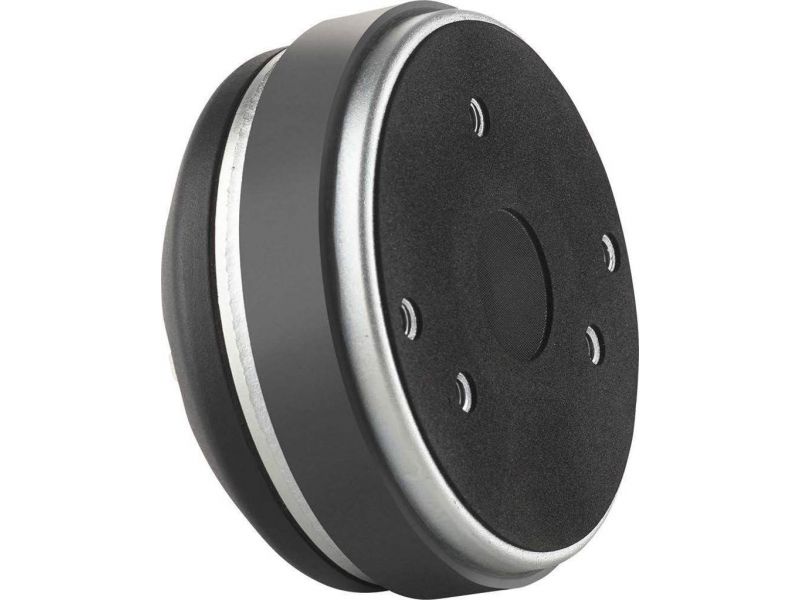

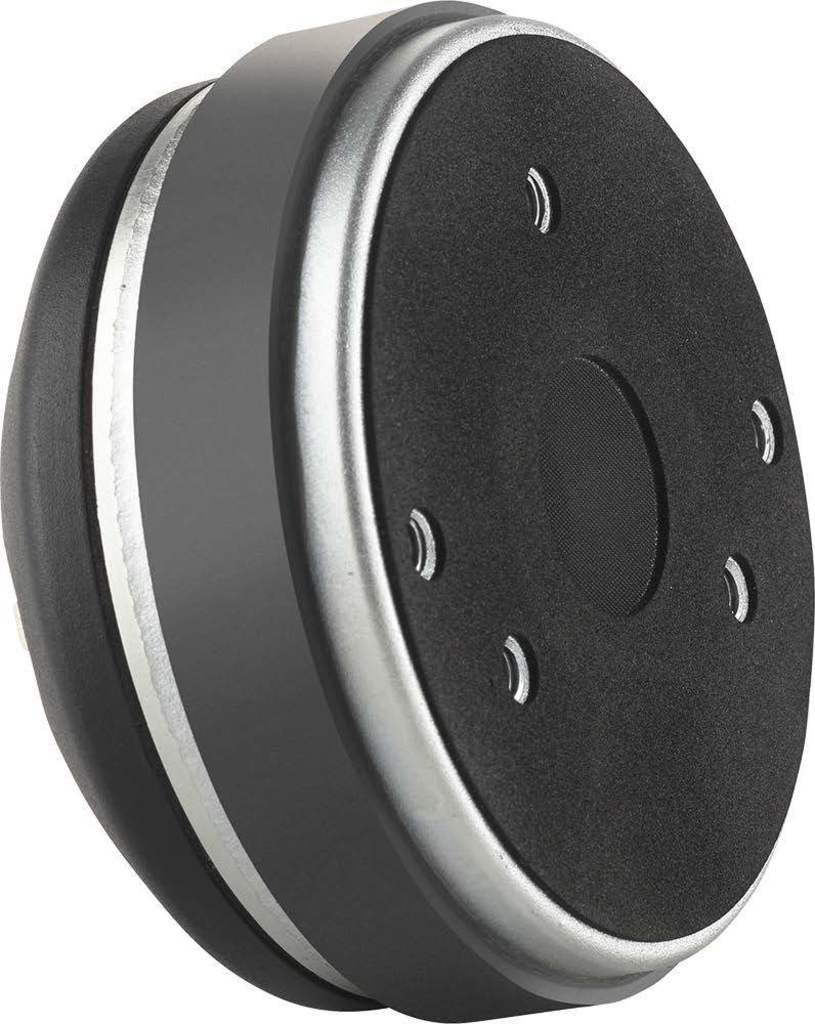

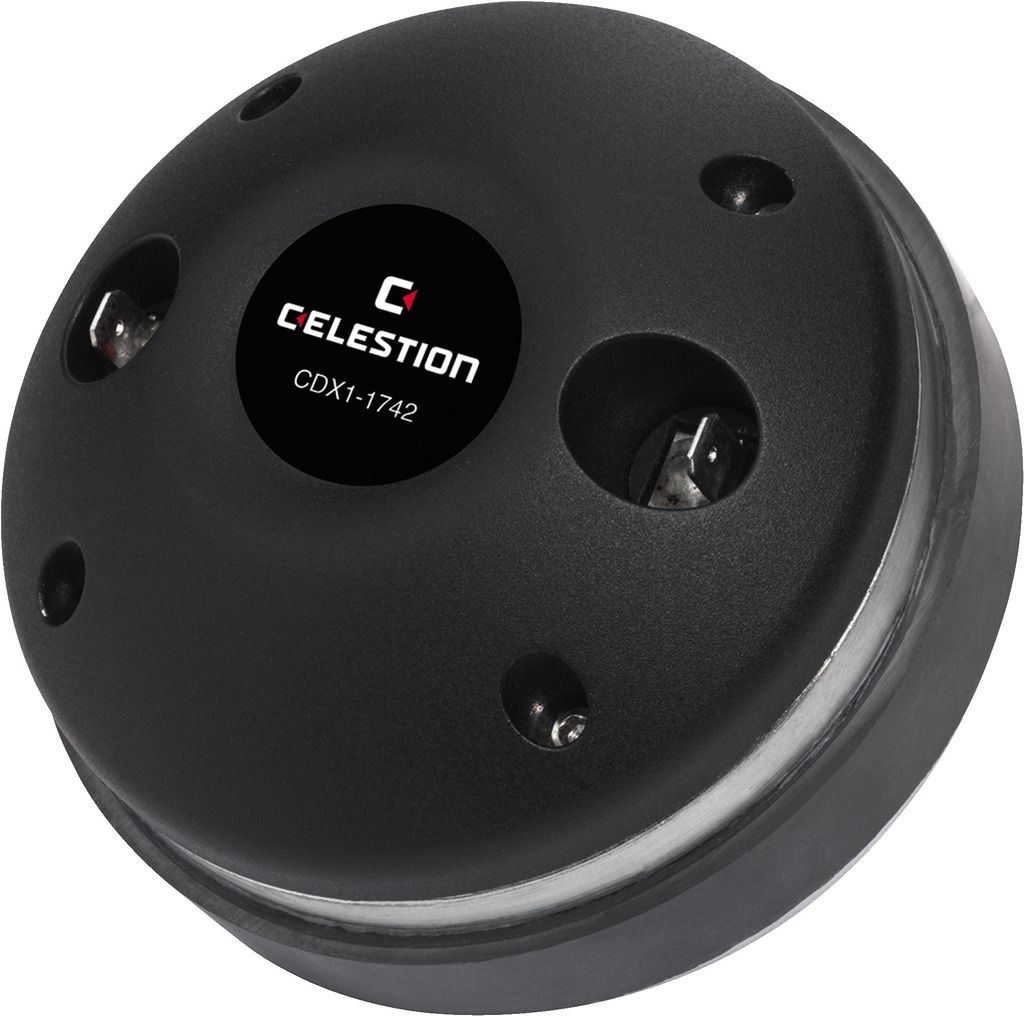

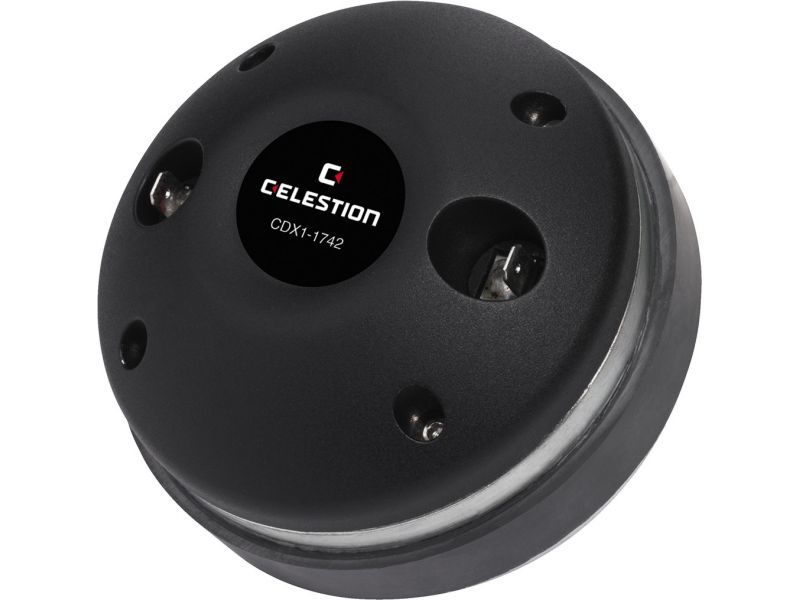

CDX1-1742/8

PA horn driver, 50 W, 8 Ω
  • High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet
  • One-piece polyamide cone and surround
  • Next generation sound castle soft clamping cone
  • Recommended crossover frequency: 2,000 Hz (12 dB/oct.)
  • 2-hole and 3-hole screw mounting
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

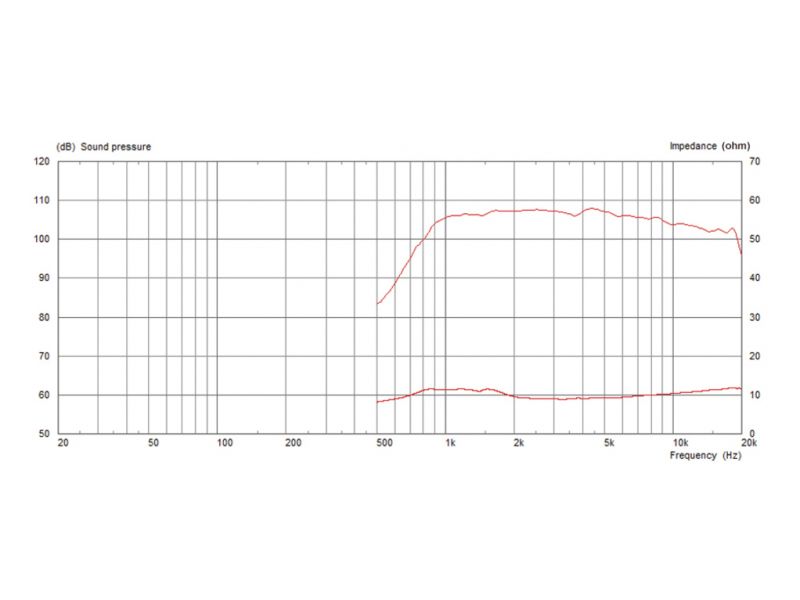

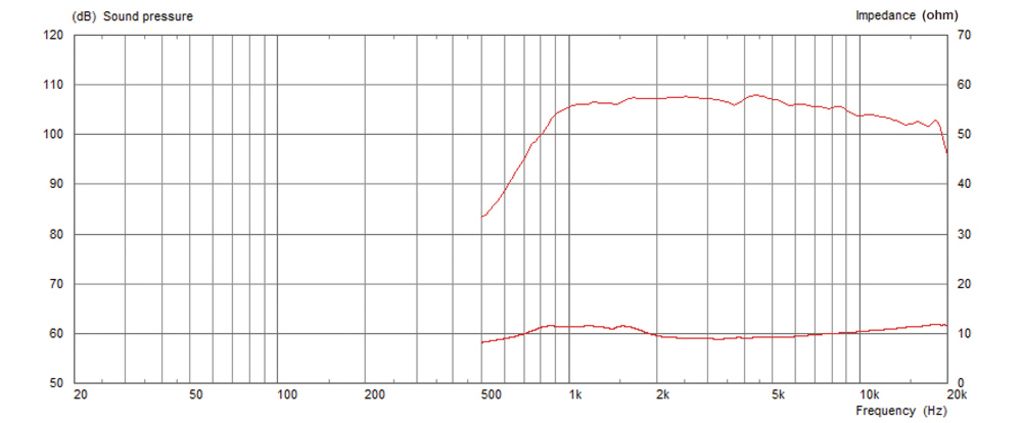

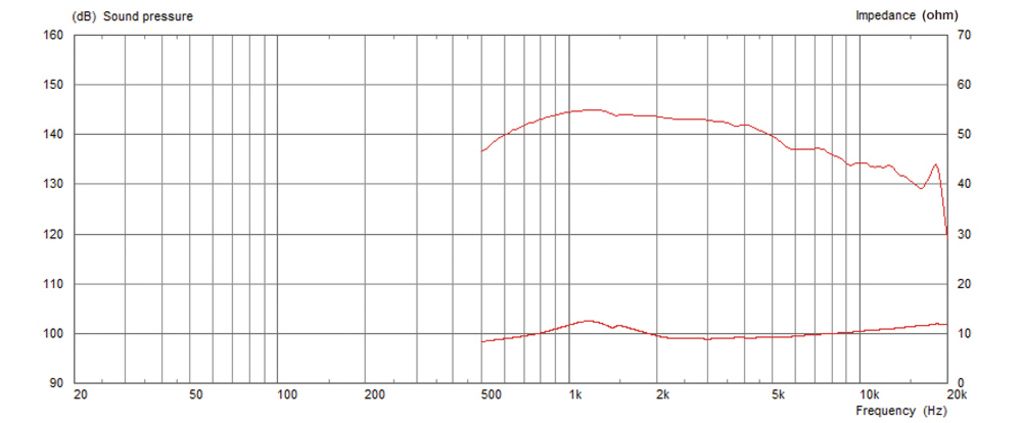

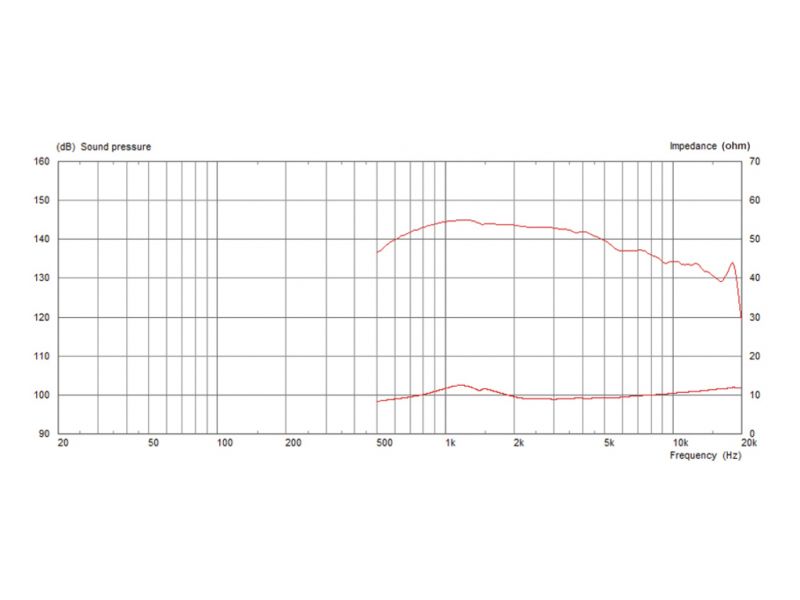

Frequency range 1,200-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,000 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 106 dB/W/m
Voice coil diameter Ø 44 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 76 mm (2x M6), Ø 57 mm (3x M6)
Dimensions Ø 100 mm x 53.5 mm
Outside diameter Ø 100 mm
Width Ø 100 mm
Height Ø 100 mm
Depth 53.5 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.4 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.14 x 0.07 x 0.17 m
Gross weight 1.55 kg
Net weight 1.4 kg

Na stáhnutí

Produktová karta CDX1-1742/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
