CDX1-1731/8

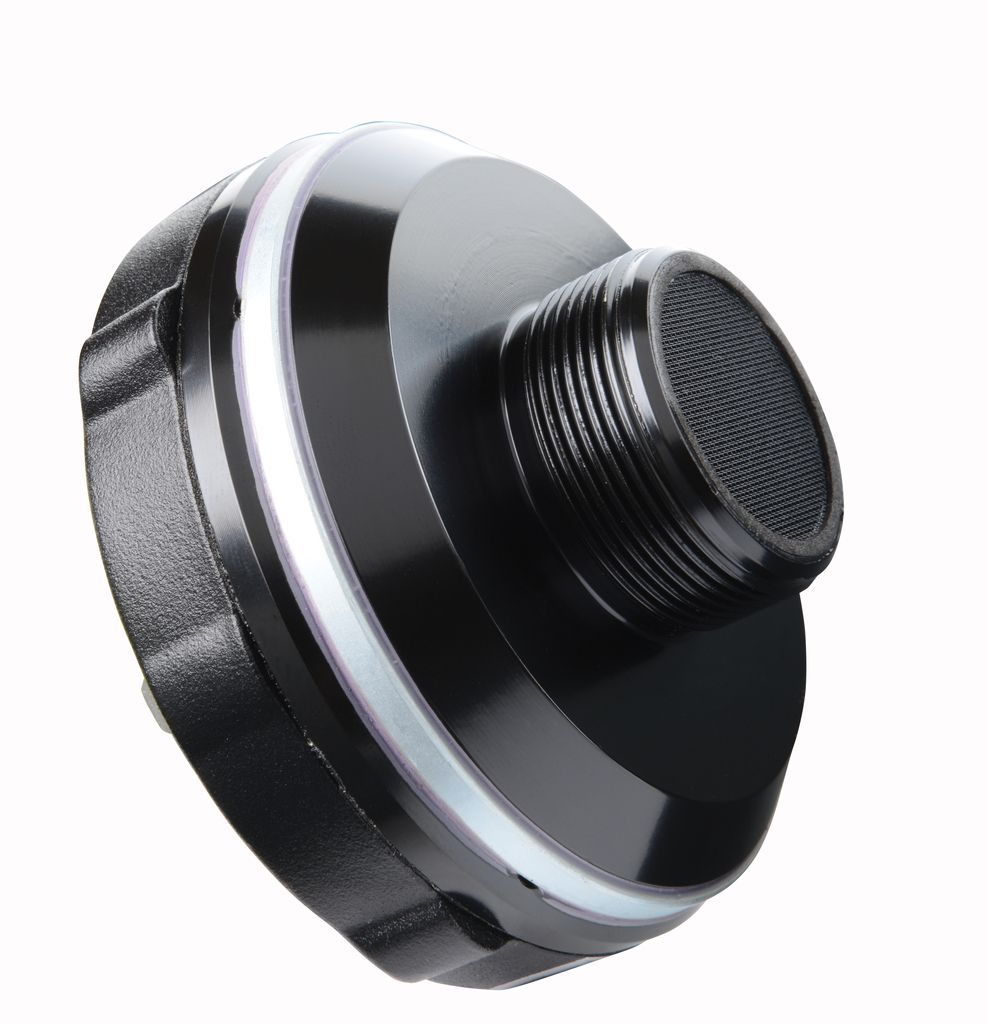

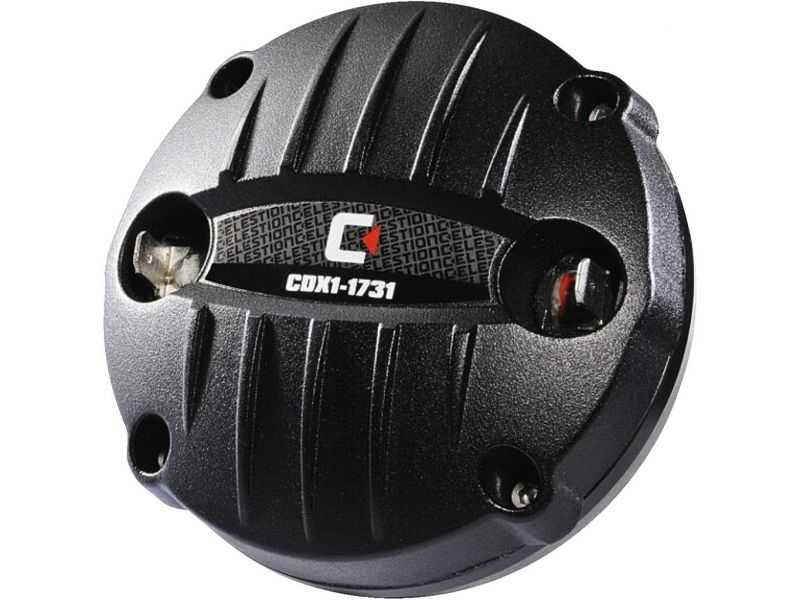

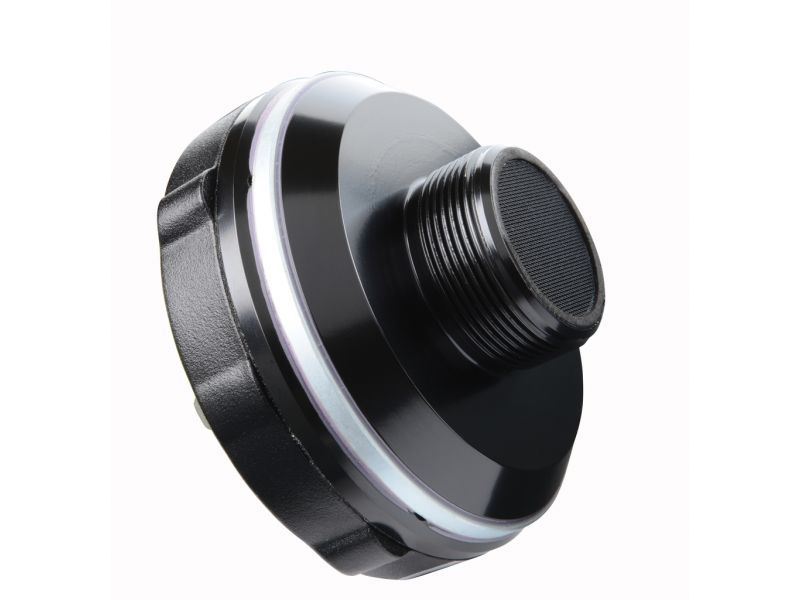

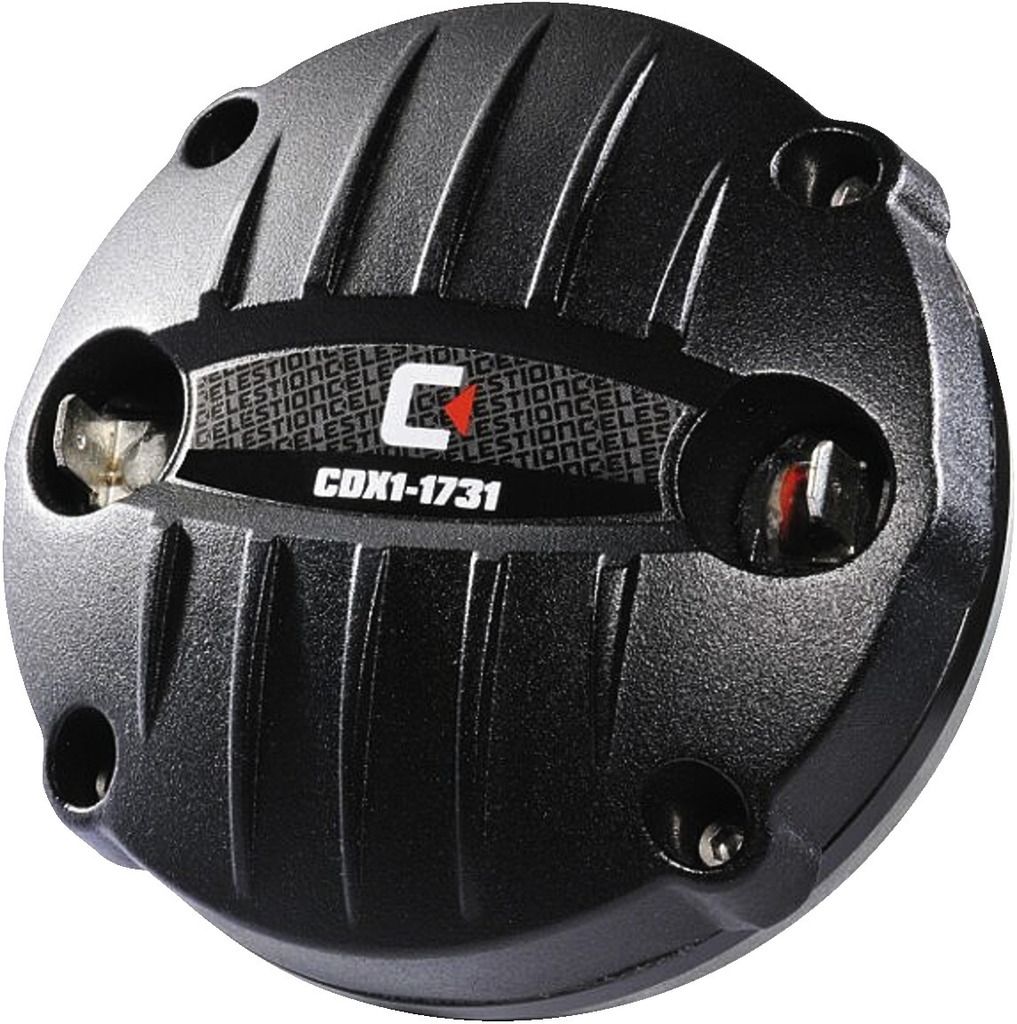

PA horn driver, 40 W, 8 Ω
  • High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and neodymium magnet
  • One-piece PETP film cone and surround
  • Sound castle cone arrangement
  • Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
  • 35 mm standard thread
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 1,200-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,200 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 110 dB/W/m
Voice coil diameter Ø 44 mm
Voice coil material flat copper-coated aluminium wire
Voice coil former PETP
Mounting cutout dep. on horn
Mounting depth dep. on horn
Dimensions Ø 88.5 mm x 55 mm
Outside diameter Ø 88.5 mm
Width Ø 88.5 mm
Height Ø 88.5 mm
Depth 55 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.65 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.105 x 0.075 x 0.13 m
Gross weight 0.75 kg
Net weight 0.651 kg
