CDX1-1446/8
Kod EAN: 0739894579650
PA horn driver, 20 W, 8 Ω High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet One-piece PETP cone and surround Integrated cone and rear cover for easy replacement Recommended crossover frequency: 2,200 Hz (12 dB...
66,00 € brutto
(inkl. 20% DPH)
55,00 € netto

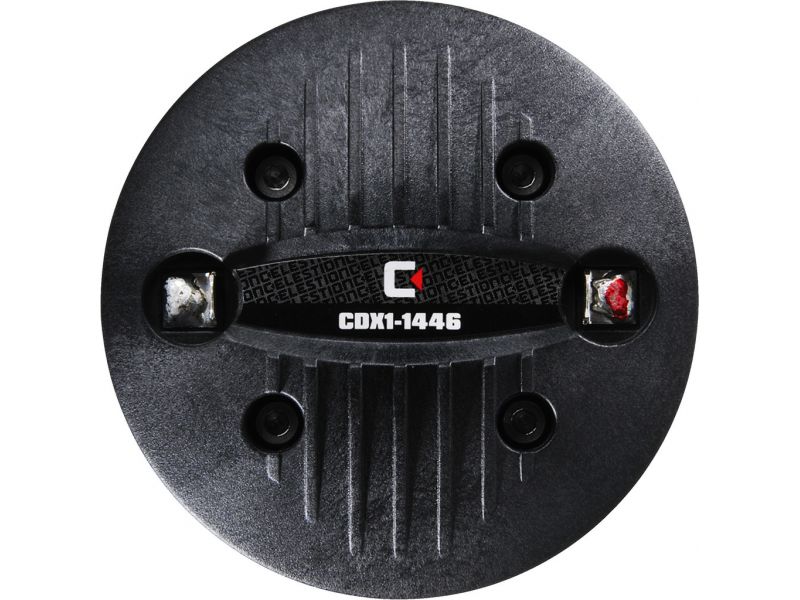

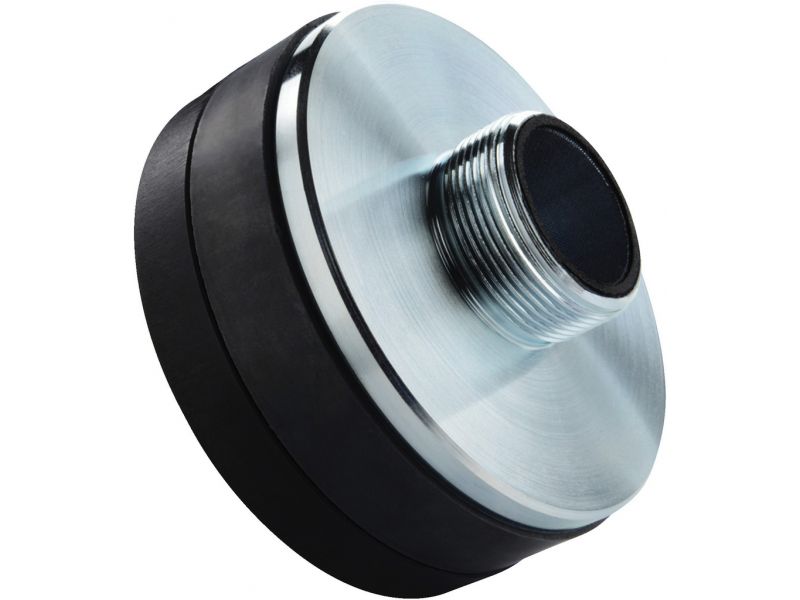

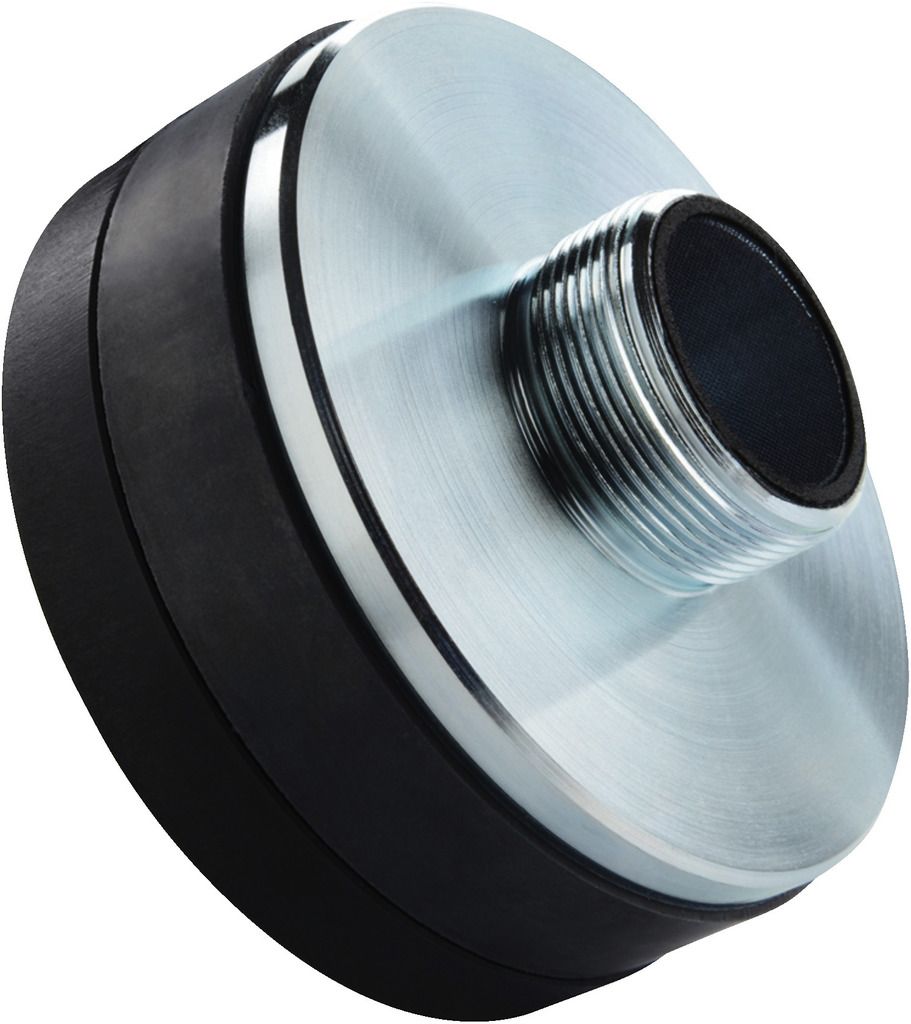

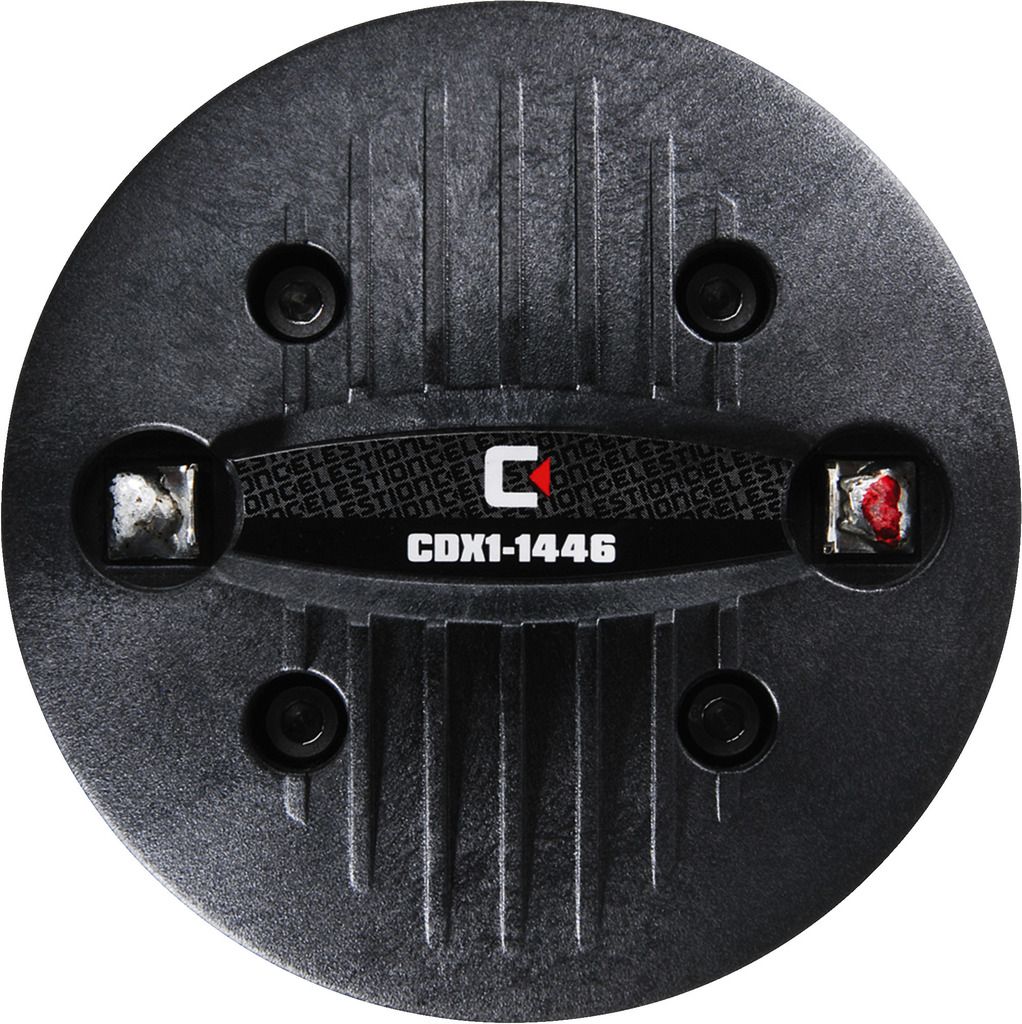

CDX1-1446/8
PA horn driver, 20 W, 8 Ω
- High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet
- One-piece PETP cone and surround
- Integrated cone and rear cover for easy replacement
- Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
- 35 mm standard thread (1⅜")
Parametry
| Impedance (Z) | 8 Ω |
| Frequency range | 1,500-20,000 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,200 Hz |
| Power rating (RMS) | 20 W |
| Peak music power output (MAX) | 40 W |
| SPL | 106 dB/W/m |
| Radiation angle | dep. on horn |
| Voice coil diameter | Ø 35 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Outlet | Ø 25 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Dimensions | Ø 90 mm x 52 mm |
| Outside diameter | Ø 90 mm |
| Width | Ø 90 mm |
| Depth | 52 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.0 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packing dimensions (W x H x L) | 0.13 x 0.081 x 0.11 m |
| Gross weight | 1.2 kg |
| Net weight | 1.0 kg |
