CDX1-1430/8
Kod EAN: 0739894536752
PA horn driver, 50 W, 8 Ω 25 mm (1") horn driver Standard 2-hole screw mounting Neodymium drive system with cooling Wide and extra linear frequency response Very high sound pressure level with lowest distortions From approx. 3,000 Hz already, this dr...

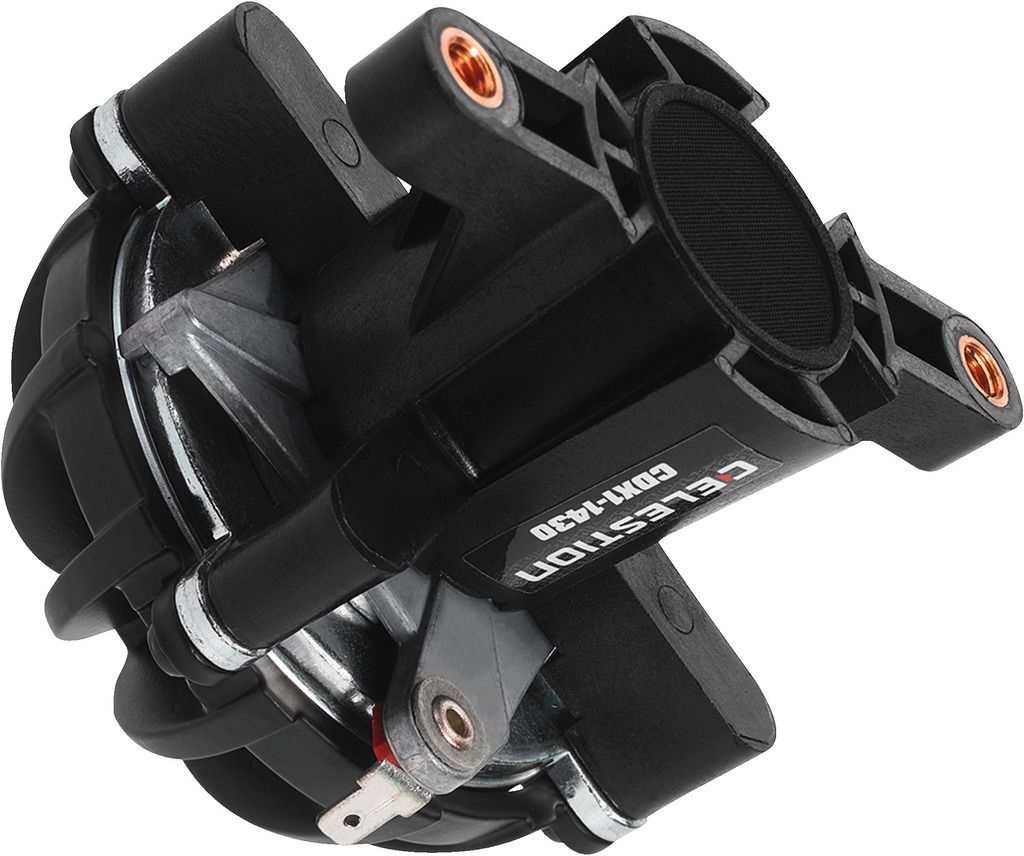

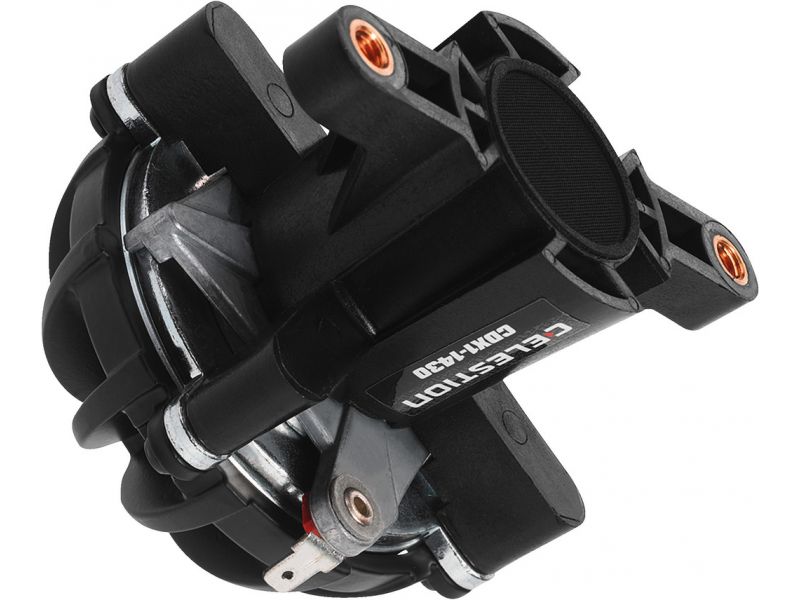

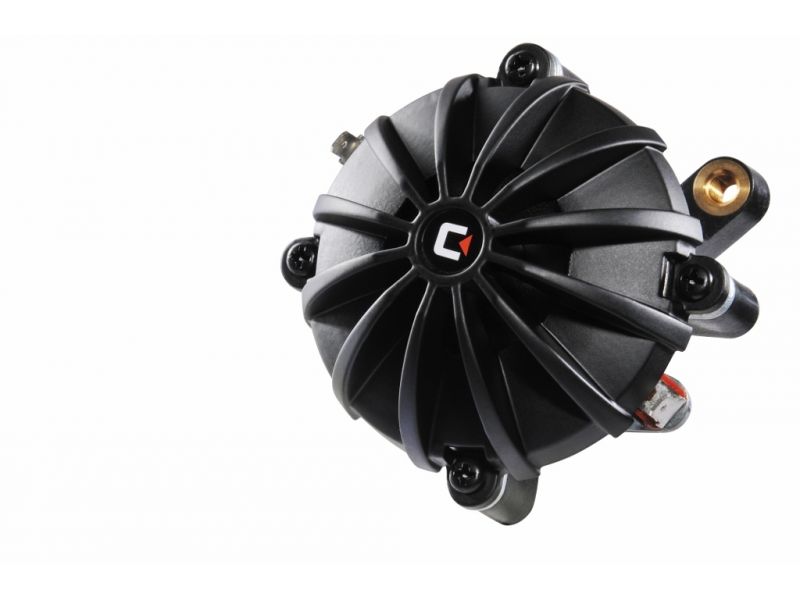

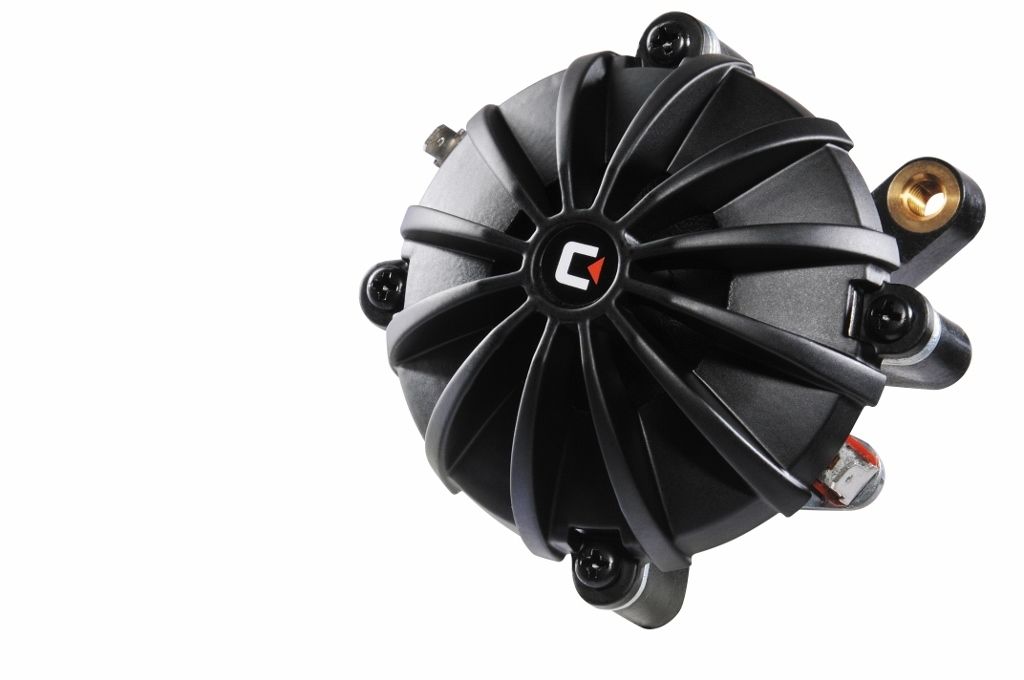

CDX1-1430/8
PA horn driver, 50 W, 8 Ω
- 25 mm (1") horn driver
- Standard 2-hole screw mounting
- Neodymium drive system with cooling
- Wide and extra linear frequency response
- Very high sound pressure level with lowest distortions
- From approx. 3,000 Hz already, this driver provides a very high-quality sound in 2-way arrangements, even with 38 cm (15") bass speakers
- Compatible with various horns, including MRH-180
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 20-20,000 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,500 Hz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| SPL | 108 dB/W/m |
| Voice coil diameter | Ø 35 mm |
| Voice coil material | copper-coated aluminium |
| Outlet | Ø 25 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Mounting hole diameter | Ø 76 mm (2x M6) |
| Dimensions | Ø 90 mm x 58 mm |
| Outside diameter | Ø 90 mm |
| Width | Ø 90 mm |
| Height | Ø 90 mm |
| Depth | 58 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.47 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.13 x 0.08 x 0.11 m |
| Gross weight | 0.5 kg |
| Net weight | 0.42 kg |
