CDX1-1010/8
Kod EAN: 0739894582940
PA horn driver, 15 W, 8 Ω 25 mm (1") compression driver with 25 mm (1") voice coil and ferrite magnet One-piece PETP cone and surround Recommended crossover frequency: 2,200 Hz (12 dB/oct.) Standard thread: 35 mm Manufacturer information: Celes...

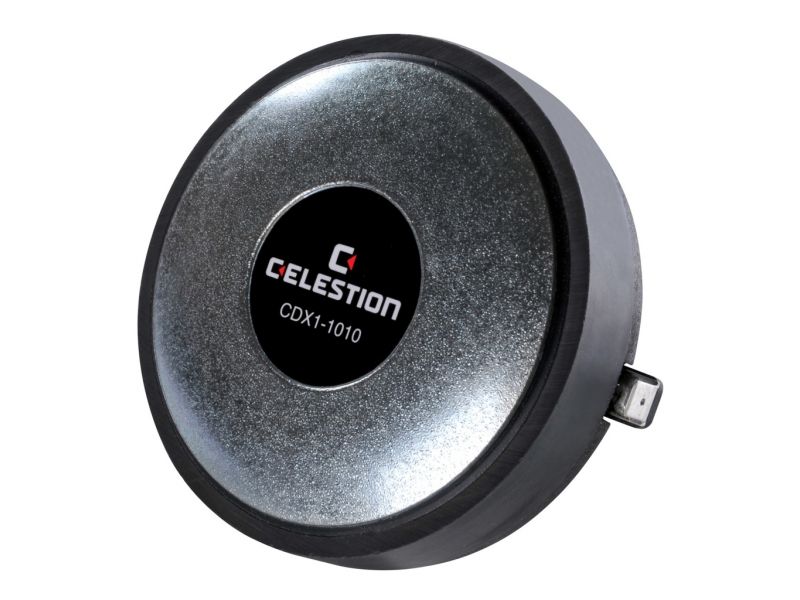

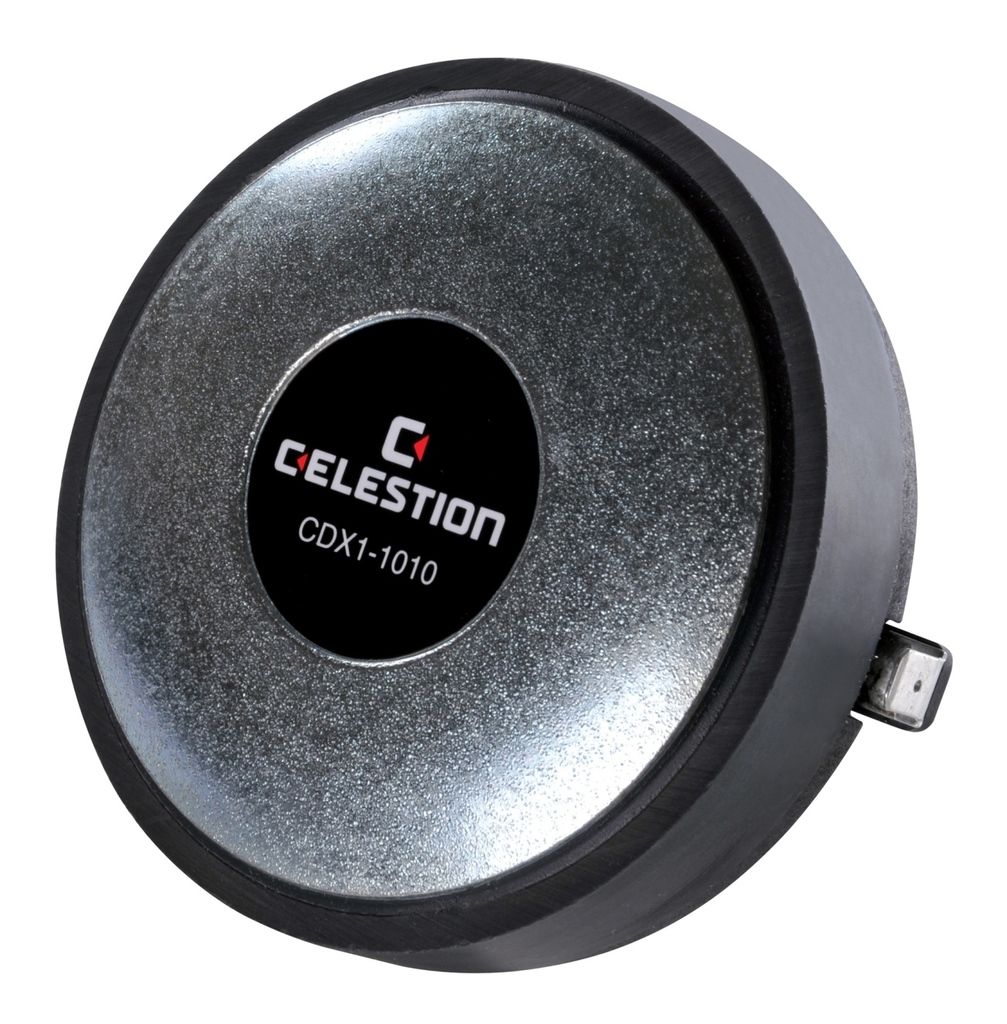

CDX1-1010/8
PA horn driver, 15 W, 8 Ω
- 25 mm (1") compression driver with 25 mm (1") voice coil and ferrite magnet
- One-piece PETP cone and surround
- Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
- Standard thread: 35 mm
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Deutschland
info@monacor.com
Zum Falsch 36
28307 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 1,500-20,000 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,200 Hz |
| Power rating (RMS) | 15 W |
| Peak music power output (MAX) | 30 W |
| SPL | 107 dB/W/m |
| Voice coil diameter | Ø 25 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Voice coil former | PETP |
| Outlet | Ø 25 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Dimensions | Ø 90 mm x 53 mm |
| Outside diameter | Ø 90 mm |
| Width | Ø 90 mm |
| Height | Ø 90 mm |
| Depth | 53 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.84 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.102 x 0.076 x 0.11 m |
| Gross weight | 1 kg |
| Net weight | 0.84 kg |
