Přenosný digitální audio rekordér
CC-142
Kod EAN: 4050821808435
Connecting terminal from WAGO 2-conductor terminal with operating levers Wires and cross sections can individually be combined from 0.14 to 4 mm2 Power rating: 450 V/32 A Continuous operating temperature: up to 85 °C Correct position of the conductor...
0,80 € brutto
(inkl. 23% DPH)
0,65 € netto

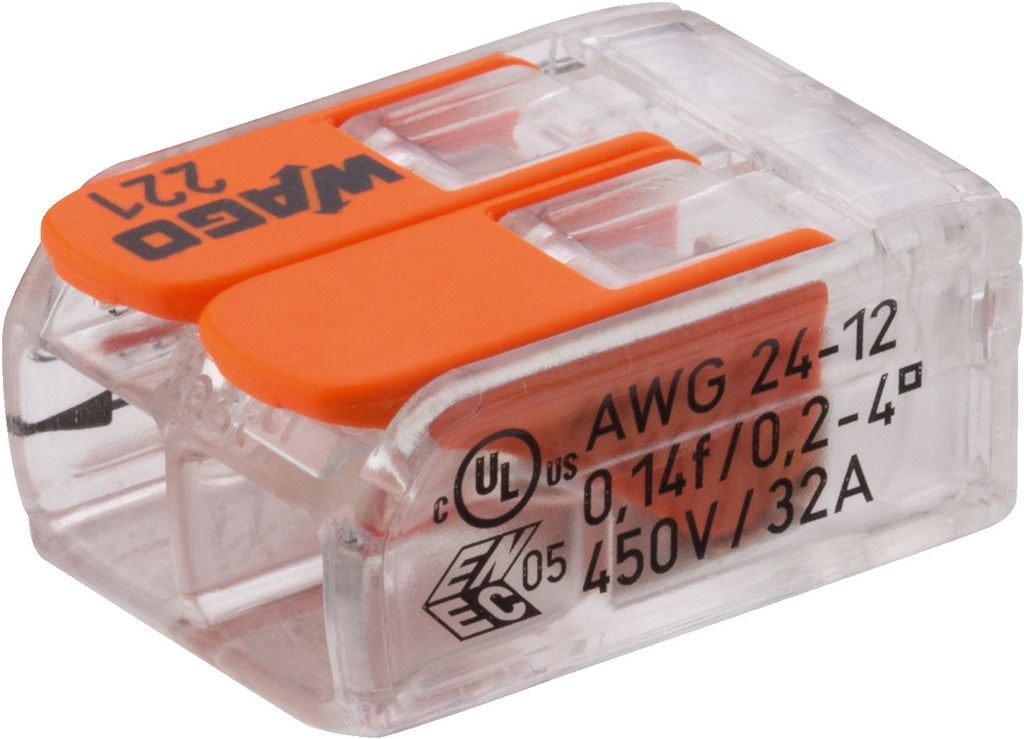

CC-142
Connecting terminal from WAGO
- 2-conductor terminal with operating levers
- Wires and cross sections can individually be combined from 0.14 to 4 mm2
- Power rating: 450 V/32 A
- Continuous operating temperature: up to 85 °C
- Correct position of the conductor and stripping length can be visually checked due to transparent housing
- Two test slots for any standard test prod
- Of very compact size, thus, ideally suited for application in confined spaces
Manufacturer information:
WAGO GmbH & Co. KG
Hansastraße 27
32423 Minden
Germany
info.de@wago.com
Hansastraße 27
32423 Minden
Germany
info.de@wago.com
Parametry
| Description | connecting terminal |
| Type | WAGO |
| Quantity | 1 |
| Features | operating levers |
| Colour/colour coding | transparent |
| Power rating | 450 V/32 A |
| Dielectric strength | 4 kV |
| Certification | UL, ABS, LR |
| Pole number | 2 |
| Cable inlet | AWG 24-12 |
| Suitable cable cross section | flexible conductors: 0.14-4 mm2 rigid conductors: up to 0.2-4 mm2 |
| Connection | 2-conductor terminal with operating levers |
| Admiss. ambient temp. | 85 °C |
| Dimensions | 13.1 x 8.3 x 18.6 mm |
| Weight | 1.6 g |
