ATT-235H/WS

Kod EAN: 4007754255638

Wall-mounted PA volume control Power rating: 35 W Recessed control to prevent unintentional readjustment Attenuation in 11 steps and OFF Audio transformer for 100 V transmission technology White plastic front panel (removable) and knob Flush mountin...

víc

44,60 € brutto

(inkl. 23% DPH)
36,26 € netto

Staň se partnerem
Kup teď

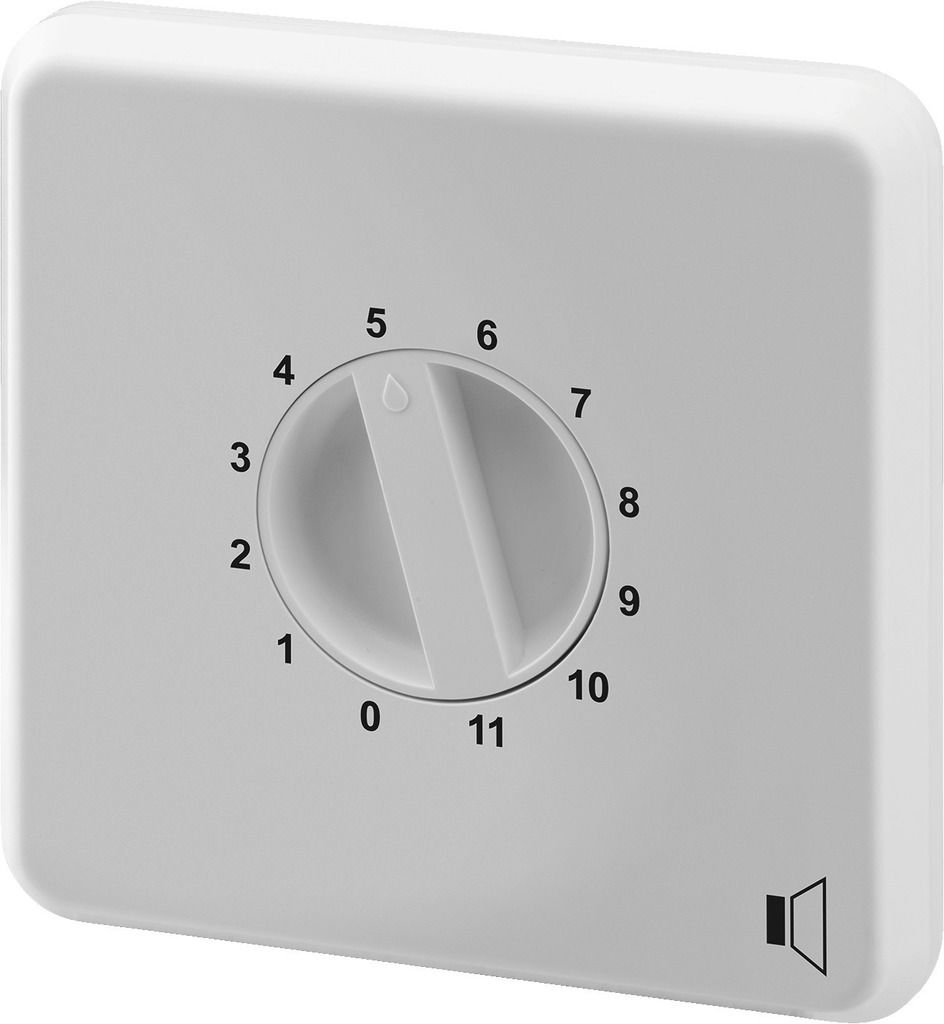

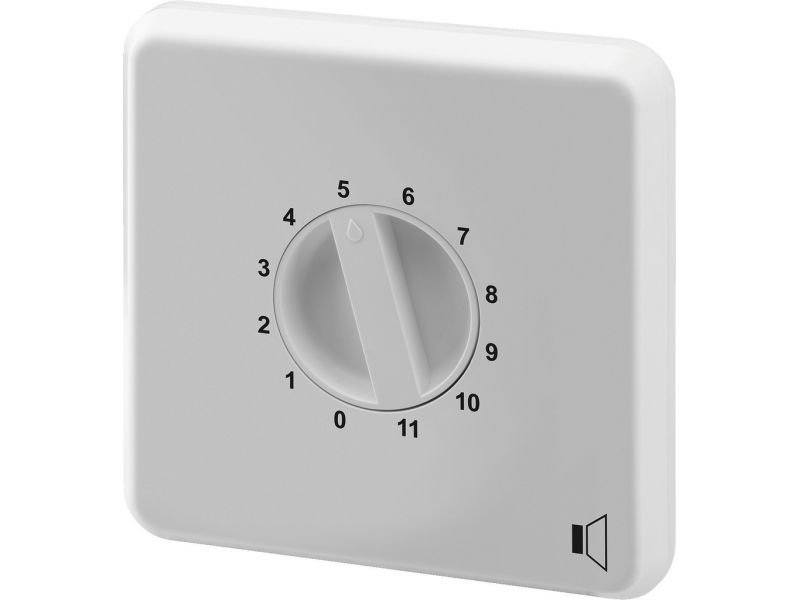

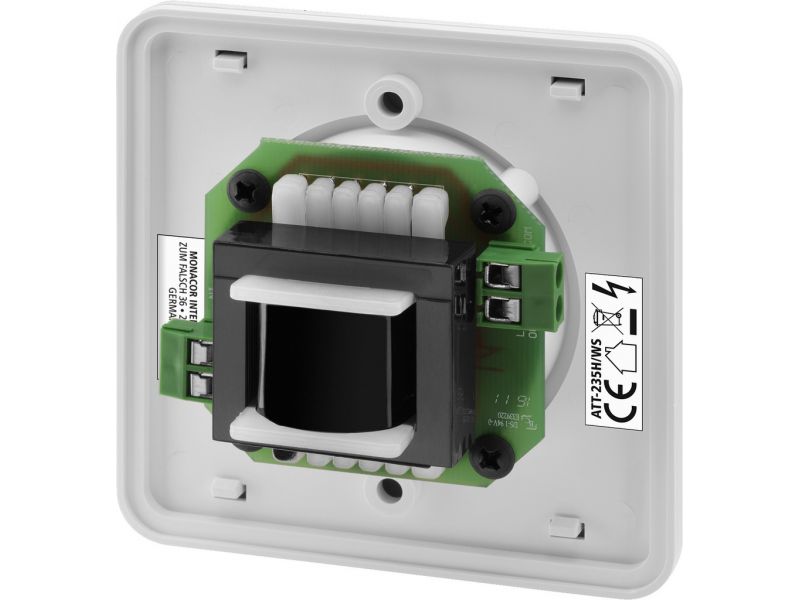

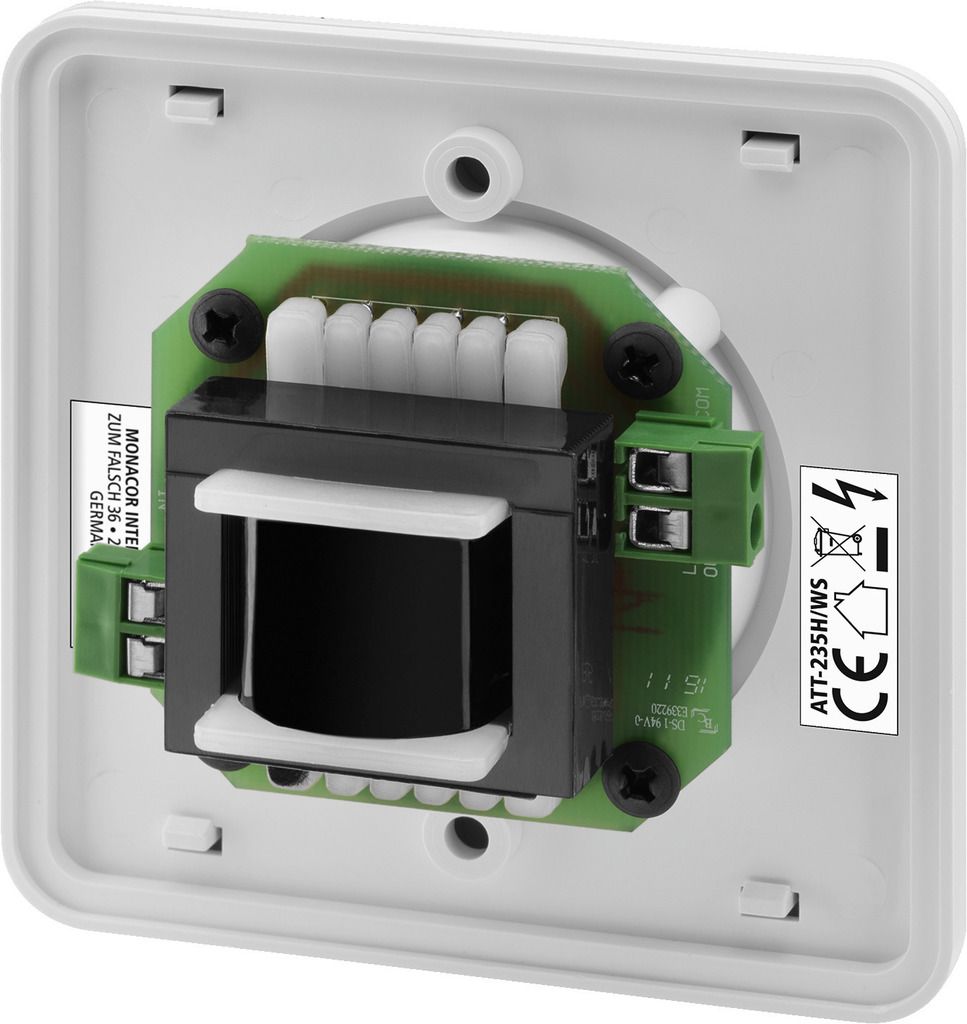

ATT-235H/WS

Wall-mounted PA volume control
  • Power rating: 35 W
  • Recessed control to prevent unintentional readjustment
  • Attenuation in 11 steps and OFF
  • Audio transformer for 100 V transmission technology
  • White plastic front panel (removable) and knob
  • Flush mounting in standard hollow wall boxes
  • Surface mounting with matching housing ATT-200, available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametry

Description wall-mounted PA volume control
Frequency range 50-18,000 Hz
Power rating 35 W
Priority facility no
Dimensions 85 x 85 x 45 mm
Mounting depth 34 mm
Weight 155 g
Surface-mounted housing ATT-200

Na stáhnutí

Produktová karta ATT-235H/WS konformitaetserklaerung-ukca konformitaetserklaerung-ce Návod na obsluhu
