ATT-2100H/WS
Kod EAN: 4007754255652
Wall-mounted PA volume control Power rating: 100 W Recessed control to prevent unintentional readjustment Attenuation in 11 steps and OFF Audio transformer for 100 V transmission technology White plastic front panel (removable) and knob Flush mounti...
54,50 € brutto
(inkl. 23% DPH)
44,31 € netto

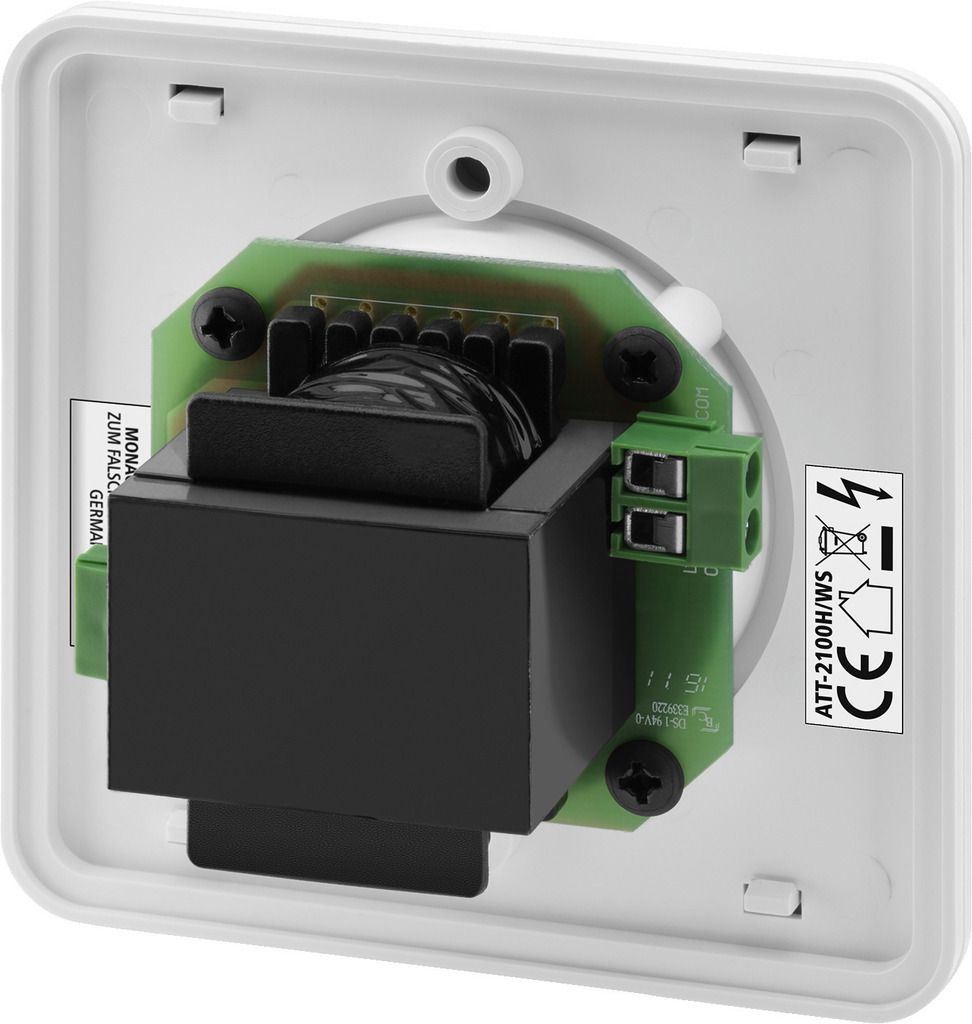

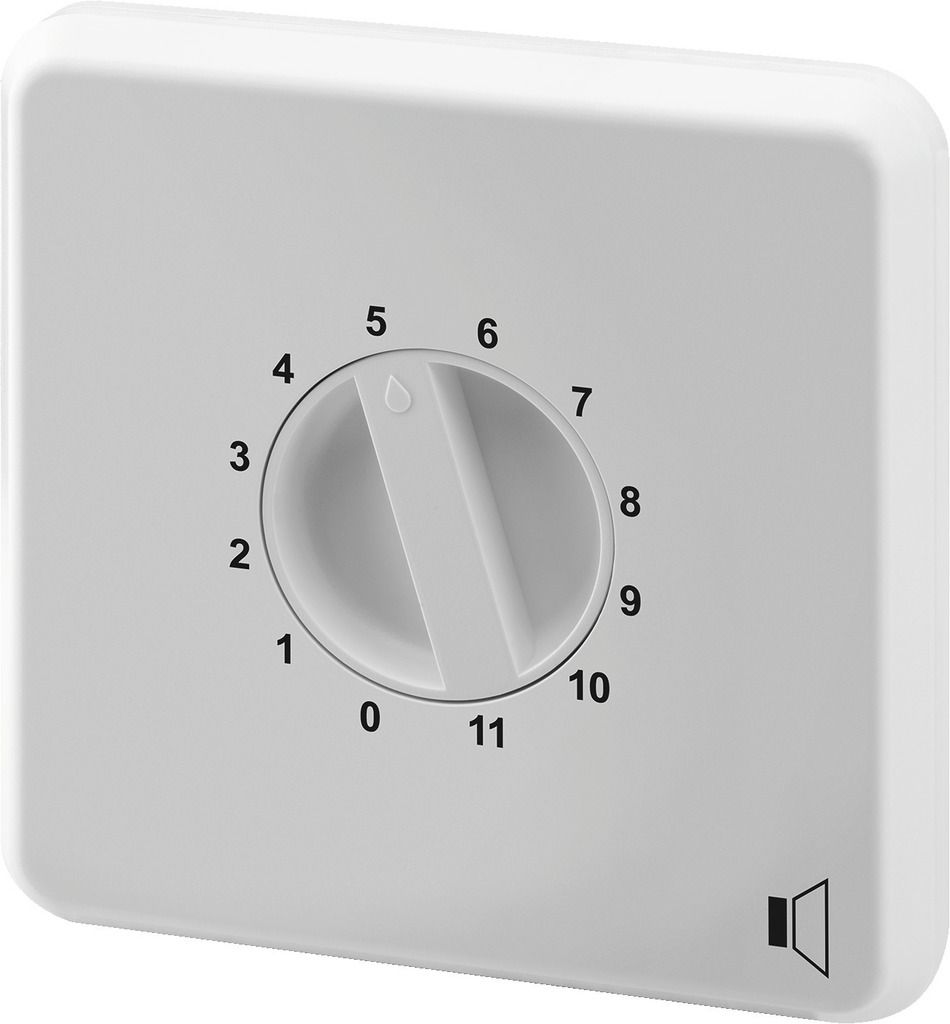

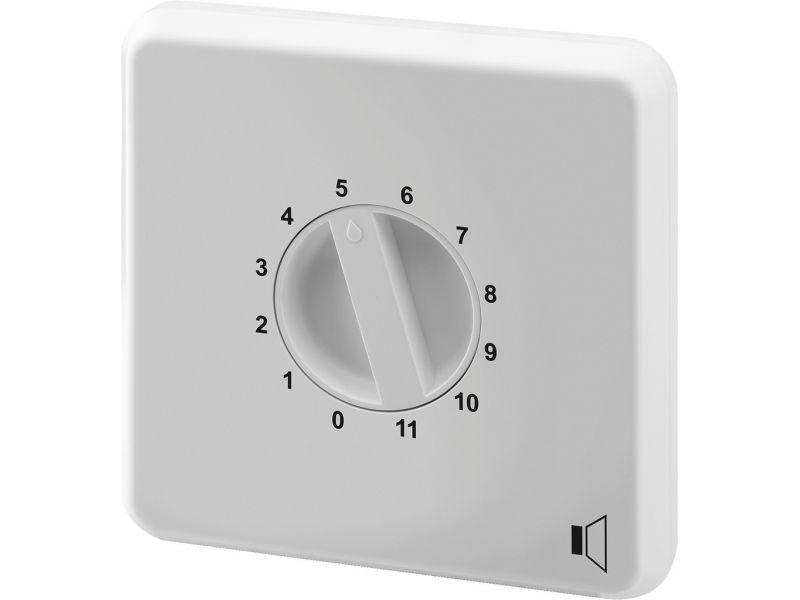

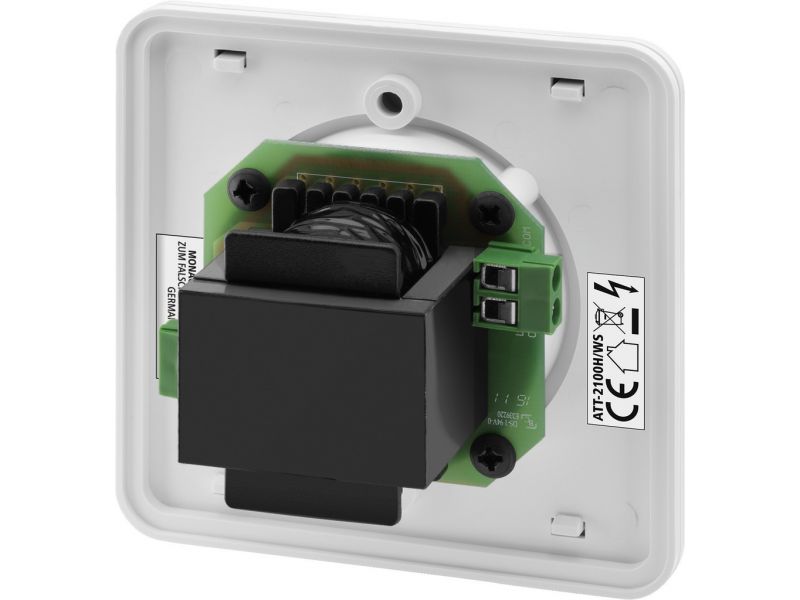

ATT-2100H/WS
Wall-mounted PA volume control
- Power rating: 100 W
- Recessed control to prevent unintentional readjustment
- Attenuation in 11 steps and OFF
- Audio transformer for 100 V transmission technology
- White plastic front panel (removable) and knob
- Flush mounting in standard hollow wall boxes
- Surface mounting with matching housing ATT-200, available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | Wall-mounted PA volume control |
| Frequency range | 50-18,000 Hz |
| Power rating | 100 W |
| Priority facility | no |
| Dimensions | 85 x 85 x 50 mm |
| Mounting depth | 42 mm |
| Weight | 250 g |
| Surface-mounted housing | ATT-200 |
