AN2775/8
Kod EAN: 0739894582056
Hi-fi full range speaker, 20 W, 8 Ω Square basket for tight connection of the speakers used in array applications Integrated waveguide (dual cone) for an improved radiation of high frequencies Robust aluminium cone Half-roll elastomer surround Weathe...
50,00 € brutto
(inkl. 20% DPH)
41,67 € netto

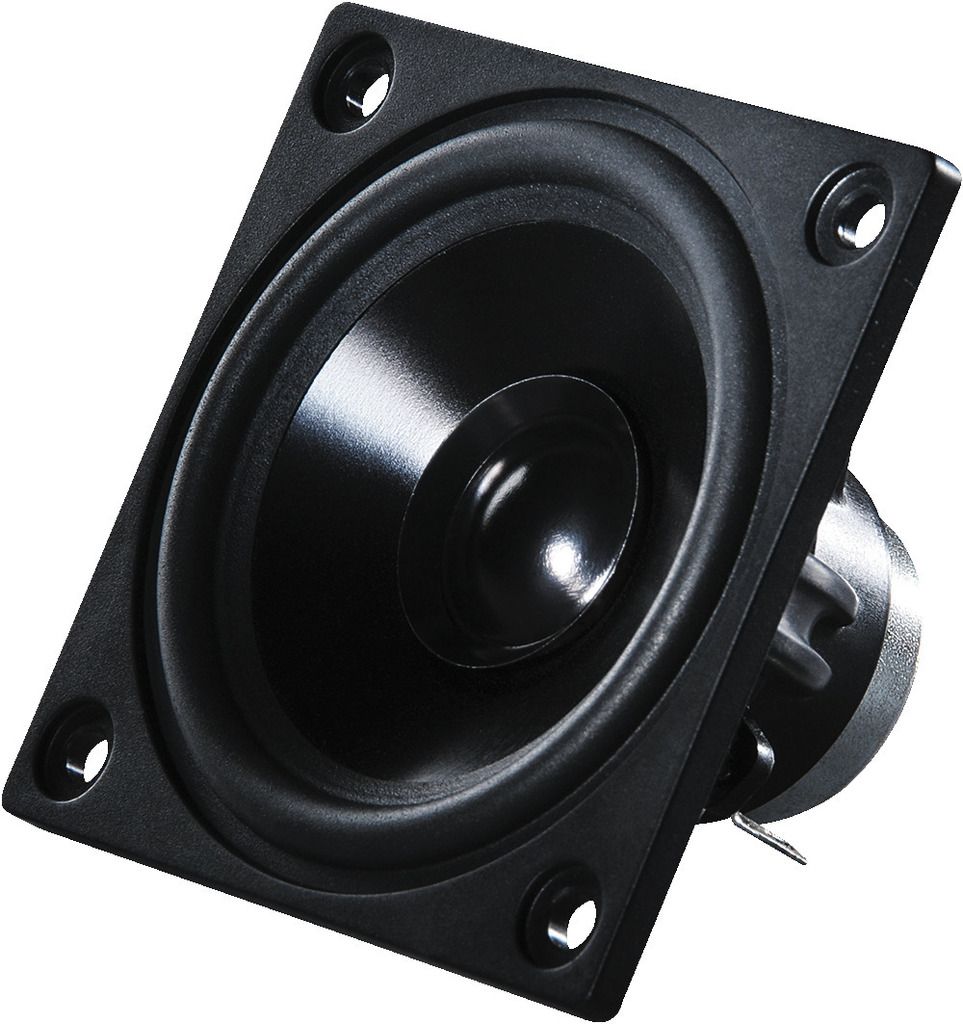

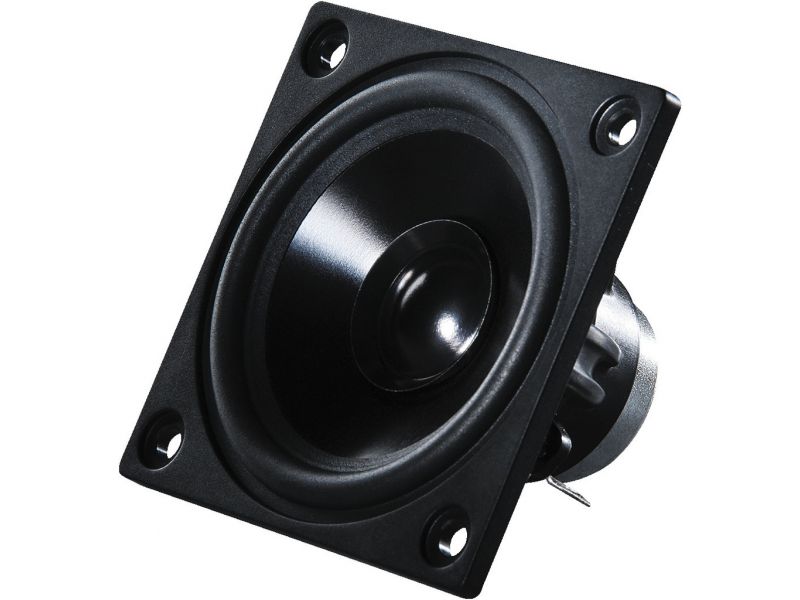

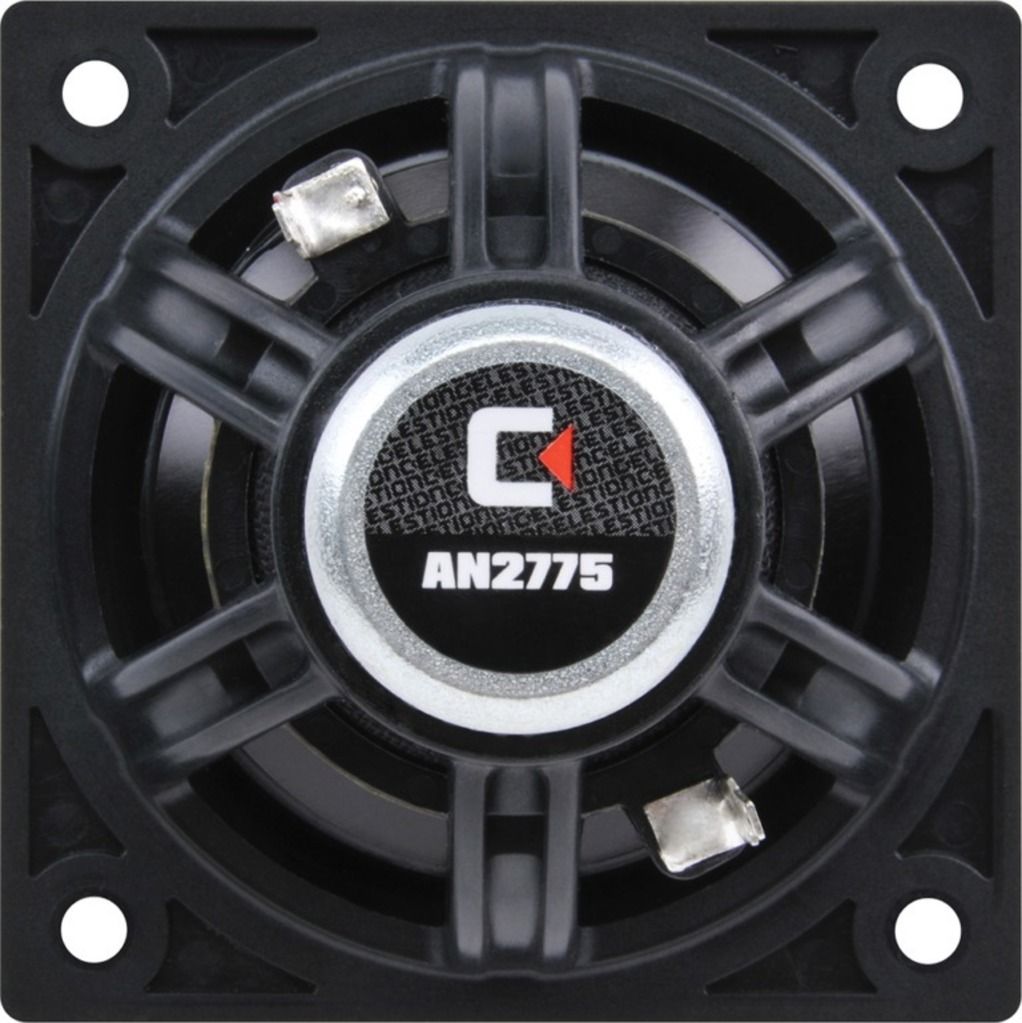

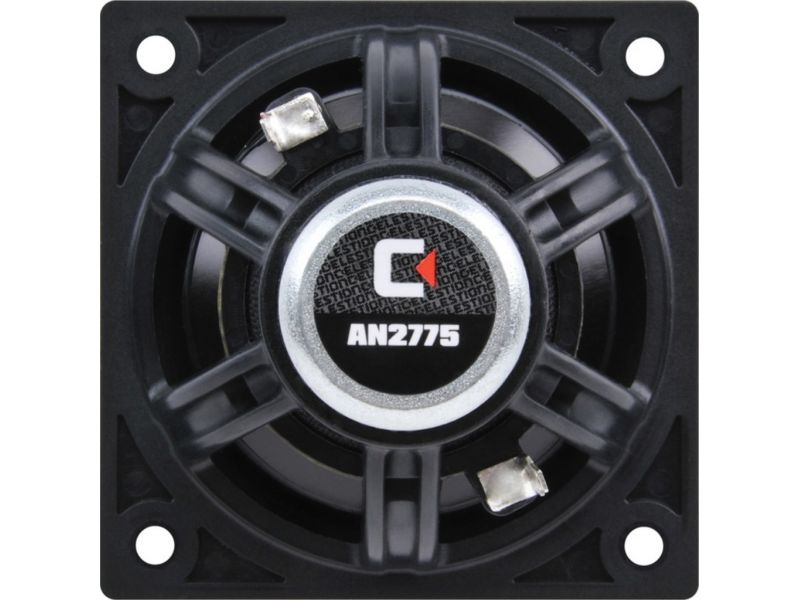

AN2775/8
Hi-fi full range speaker, 20 W, 8 Ω
- Square basket for tight connection of the speakers used in array applications
- Integrated waveguide (dual cone) for an improved radiation of high frequencies
- Robust aluminium cone
- Half-roll elastomer surround
- Weatherproof
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

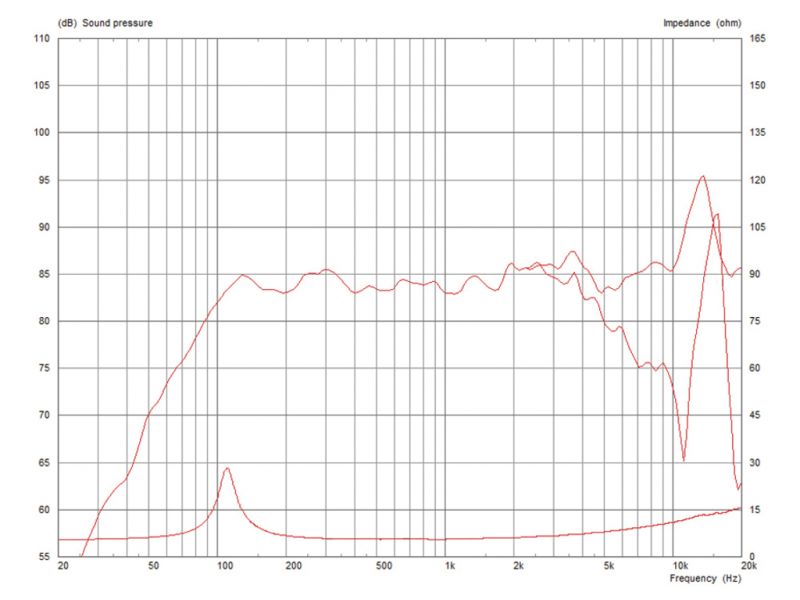

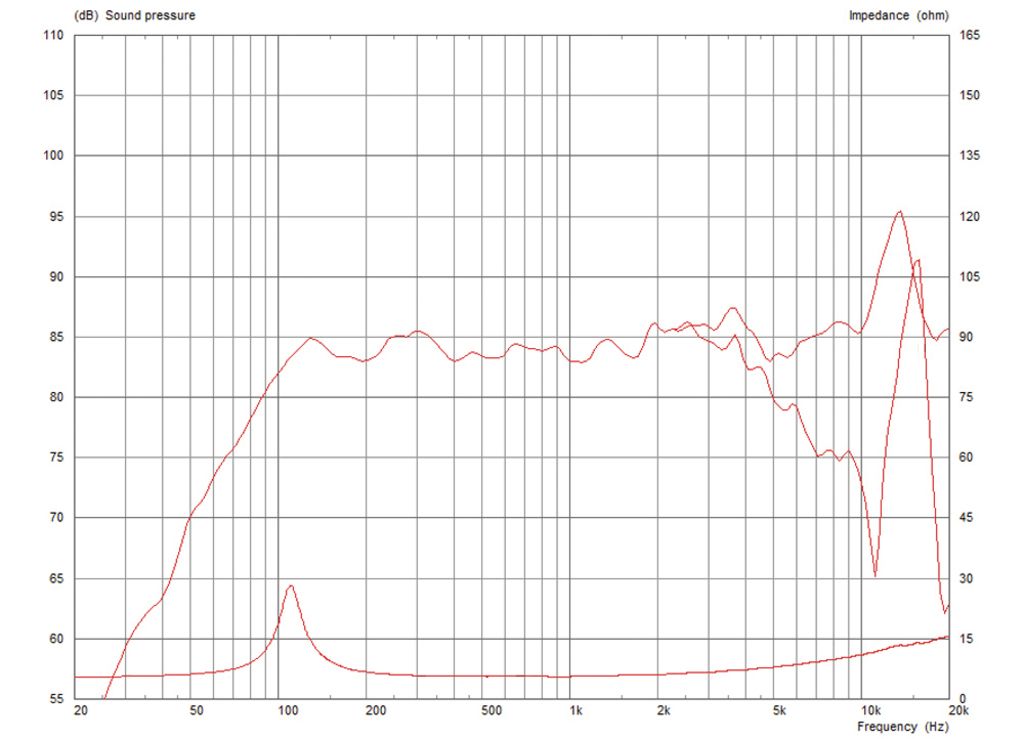

| Frequency range | 160-20,000 Hz |
| Resonant frequency (fs) | 123.3 Hz |
| Power rating (RMS) | 20 W |
| Peak music power output (MAX) | 40 W |
| SPL | 84 dB/W/m |
| Suspension compl. (Cms) | 0.62 mm/N |
| Moving mass (Mms) | 2.68 g |
| Mech. Q factor (Qms) | 5.408 |
| Electr. Q factor (Qes) | 1.166 |
| Total Q factor (Qts) | 0.959 |
| Equivalent volume (Vas) | 3.6 l |
| DC resistance (Re) | 5 Ω |
| Force factor (BxL) | 3.06 Tm |
| Voice coil induct. (Le) | 0.07 mH |
| Voice coil diameter | Ø 20 mm |
| Voice coil winding height | 6 mm |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 2.25 mm |
| Eff. cone area (Sd) | 28.27 cm2 |
| Mounting cutout | Ø 66.1 mm |
| Mounting depth | 45 mm |
| Mounting hole diameter | Ø 82 mm |
| Dimensions | 71.3 x 71.3 x 45 mm |
| Width | 71.3 mm |
| Height | 71.3 mm |
| Depth | 45 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.1 kg |
| Packing unit | 1 |
| Type of speaker | 2.75" |
| Packing dimensions (W x H x L) | 0.11 x 0.065 x 0.11 m |
| Gross weight | 0.145 kg |
| Net weight | 0.1 kg |
