EDL-82HQ
Kod EAN: 4007754254693
PA hi-fi wall and ceiling speaker, 30 W 100 V transmission technology or 8 Ω operation 2-way version with coaxial dome tweeter 20 cm (8") bass speaker with waveguide and 25 mm (1") silk dome Pivoting tweeter via ball joint Excellent sound characteris...
140,00 € brutto
(inkl. 20% DPH)
116,67 € netto

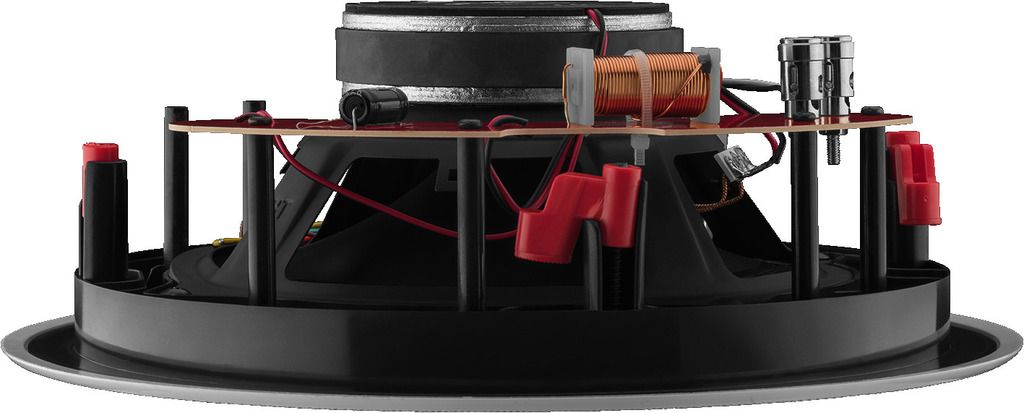

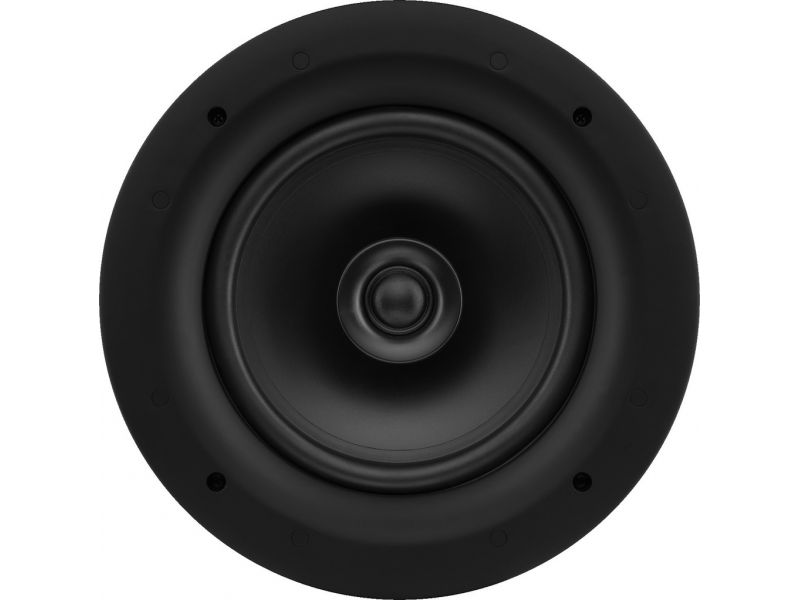

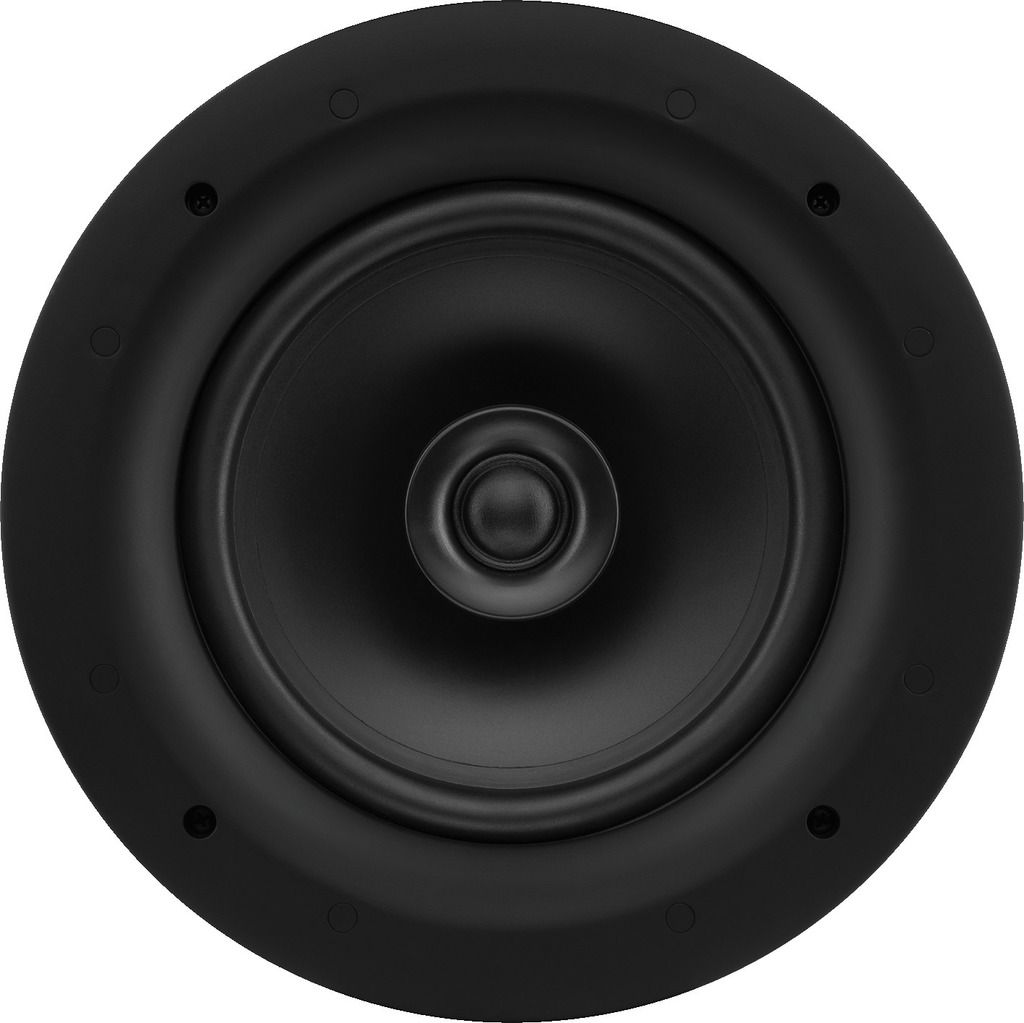

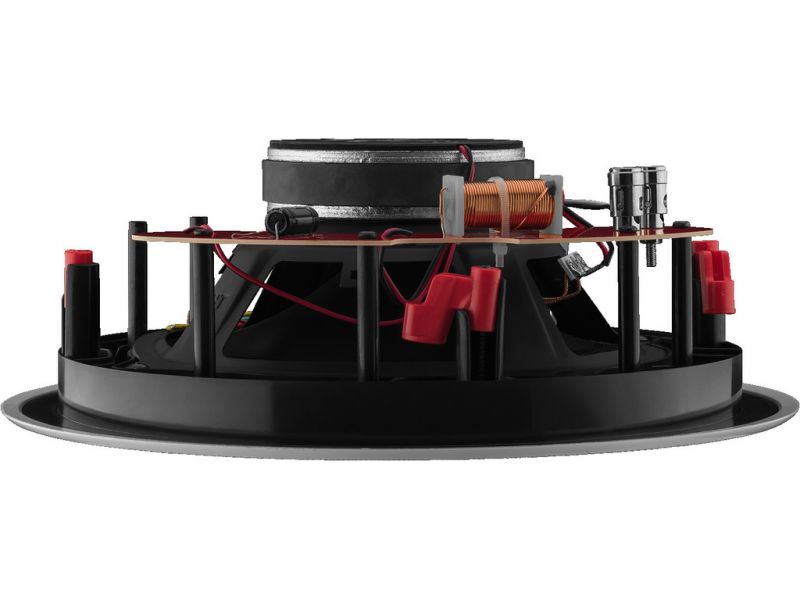

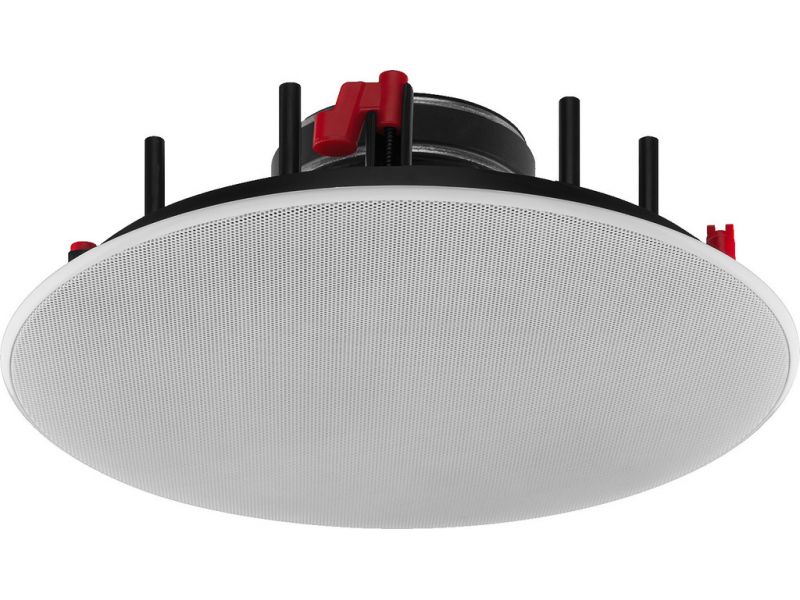

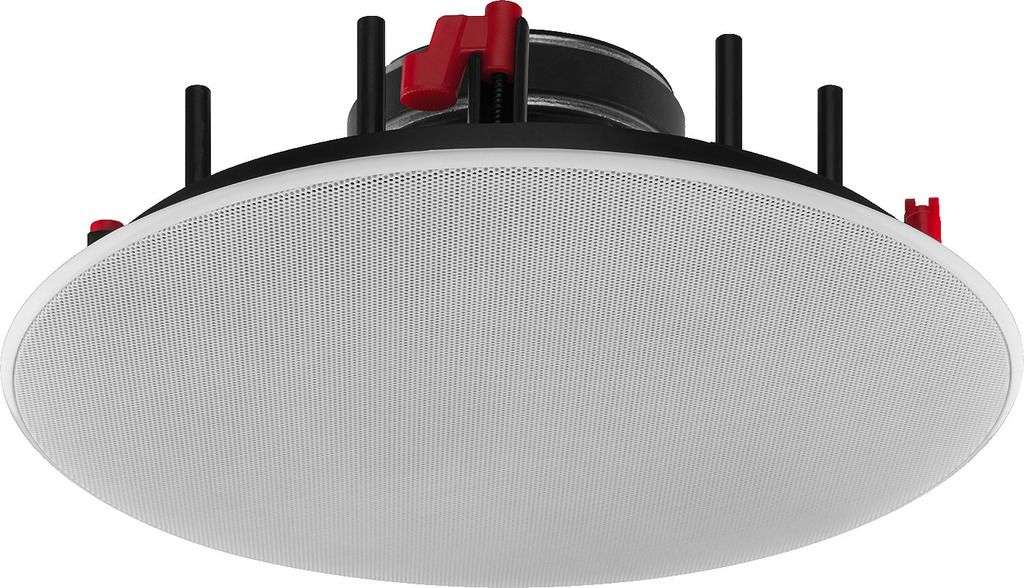

EDL-82HQ
PA hi-fi wall and ceiling speaker, 30 W
- 100 V transmission technology or 8 Ω operation
- 2-way version with coaxial dome tweeter
- 20 cm (8") bass speaker with waveguide and 25 mm (1") silk dome
- Pivoting tweeter via ball joint
- Excellent sound characteristics
- Stylish flush fit protective metal grille with slim plastic frame
- Protective grille magnetically attached to speaker front
- For a wall thickness/ceiling thickness from 6 to 35 mm
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | 100 V or low-impedance |

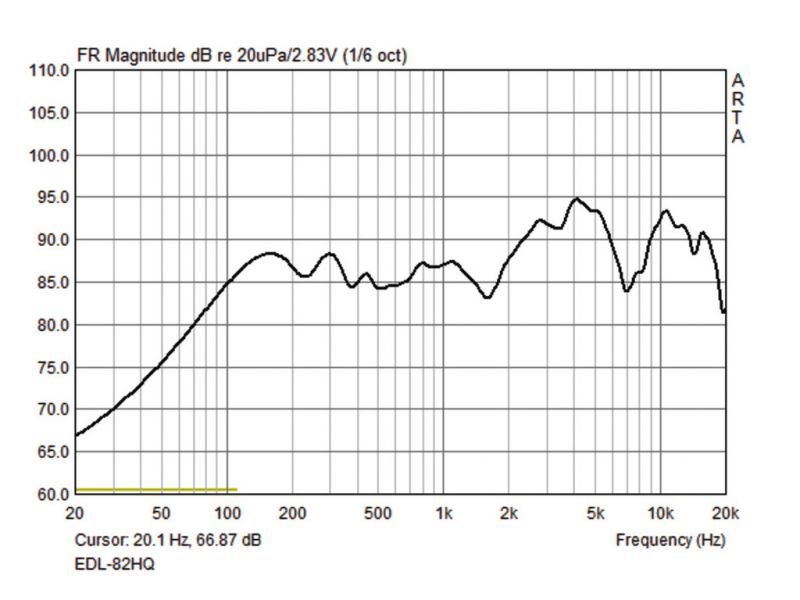

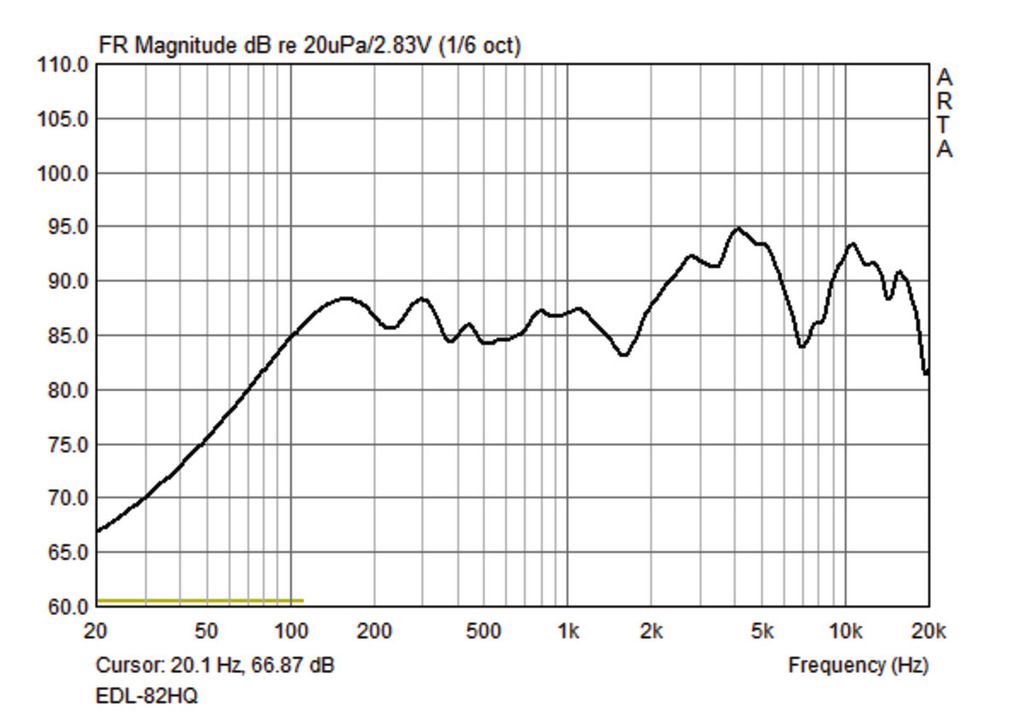

| Frequency range | 30-20,000 Hz |
| Resonant frequency (fs) | 40 Hz |
| Power rating (RMS) | 50 W (8 Ω) 30/16/8/4 W (100 V) |
| Peak music power output (MAX) | 100 W |
| SPL | 89 dB/W/m |

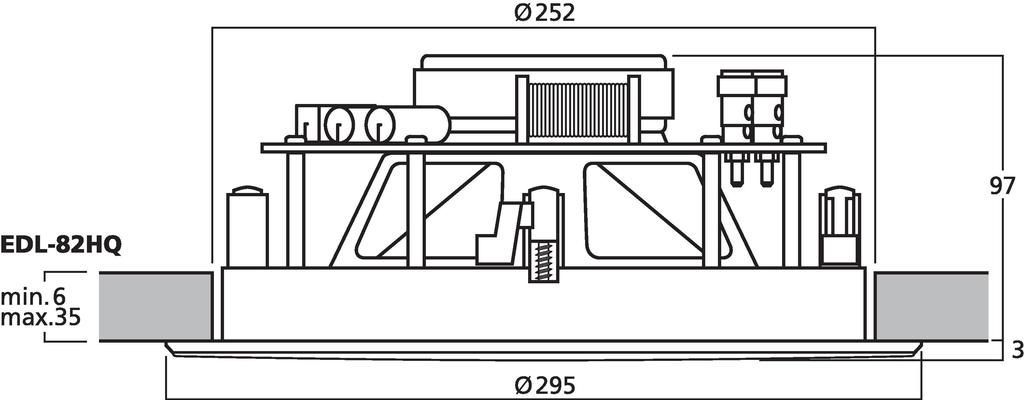

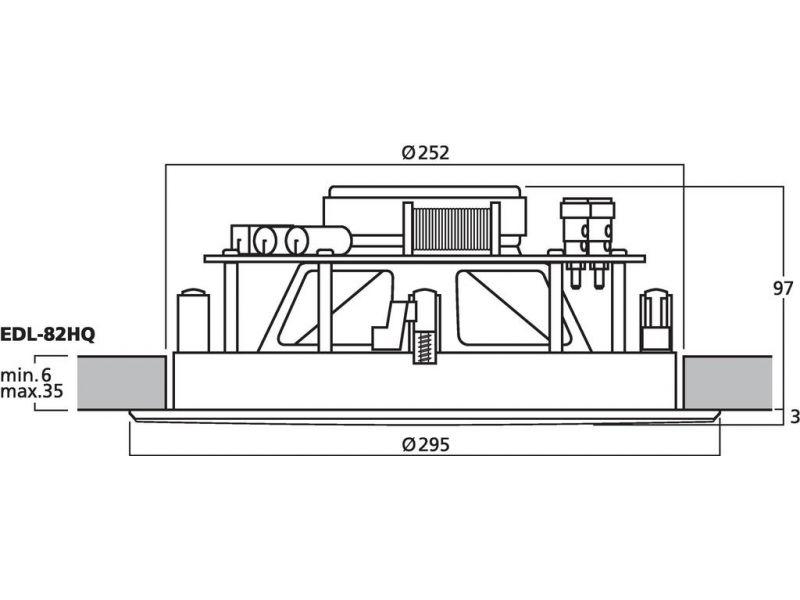

| Mounting cutout | Ø 252 mm |
| Mounting depth | 99 mm |
| Dimensions | Ø 295 mm x 100 mm |
| Outside diameter | Ø 295 mm |
| Width | Ø 295 mm |
| Depth | 100 mm |
| Colour | white/black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2 kg |
| Packing unit | 1 |
| Type of speaker | 200 |
| Packing dimensions (W x H x L) | 0.315 x 0.135 x 0.315 m |
| Gross weight | 2.47 kg |
| Net weight | 2.07 kg |
